Markem-Imaje SmartDate X45 Thermal Transfer Overprinter
300 dpi TTO Printer for Flexible Packaging | Intermittent & Continuous Printing | Up to 600 mm/s
Description

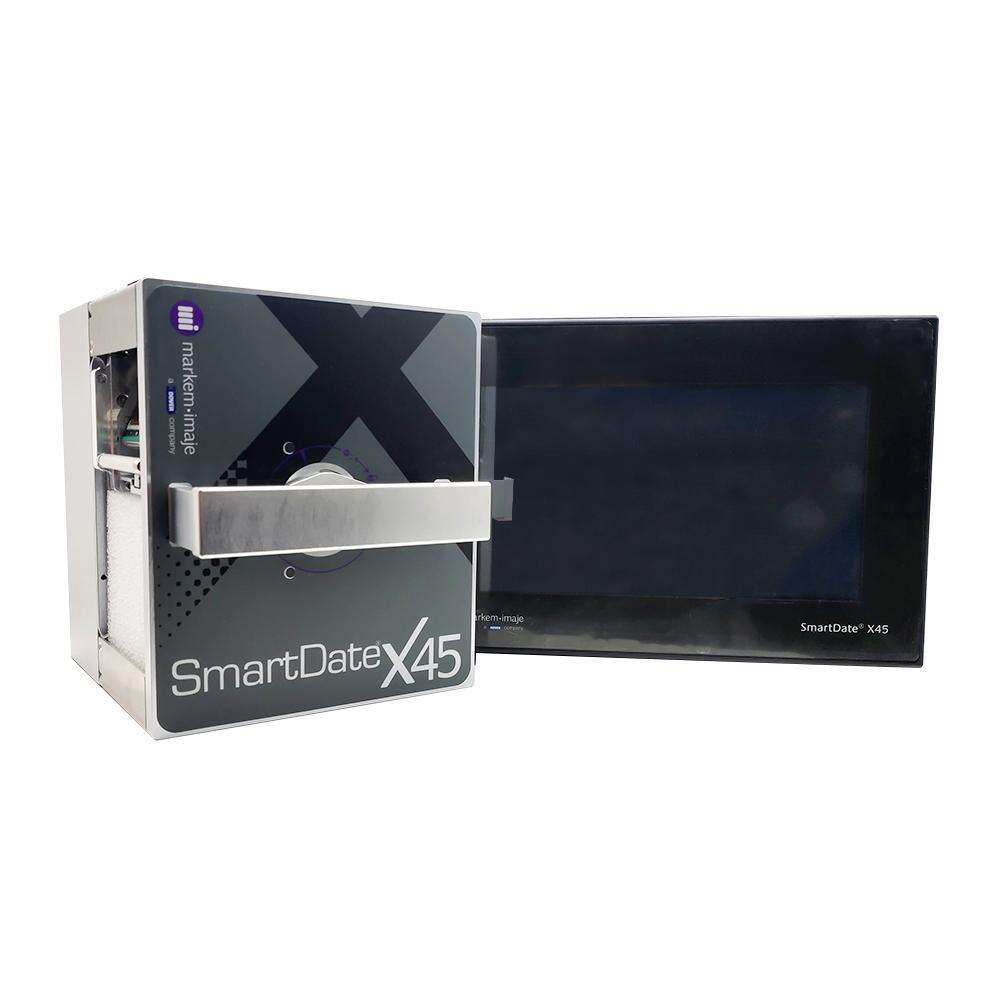

Markem-Imaje SmartDate X45 TTO Printer
The Markem-Imaje SmartDate X45 TTO Printer is a high-performance thermal transfer overprinter designed for printing variable information directly onto flexible packaging films. Combining high-resolution printing, flexible installation options, efficient ribbon management, this industrial TTO coding machine helps manufacturers achieve clear, consistent product identification across a wide range of packaging applications.
With 300 dpi print resolution and printing speeds of up to 600 mm/s, the SmartDate X45 is suitable for medium-duty production environments requiring reliable date coding, batch identification, barcode printing, product traceability. It supports both intermittent and continuous printing configurations, making it compatible with many vertical form-fill-seal (VFFS) machines, horizontal flow wrappers, pouch packaging equipment.
Whether you manufacture snacks, confectionery, frozen foods, pharmaceutical products or personal care items, the SmartDate X45 offers a practical solution for printing essential product information on flexible packaging.
Key Features of the Markem-Imaje SmartDate X45 TTO Printer
1. High-Resolution 300 dpi Printing
The SmartDate X45 uses thermal transfer technology to produce clear text, graphics, logos, barcodes, QR codes on suitable flexible packaging materials.
Its 300 dpi resolution supports detailed coding requirements, helping manufacturers print legible product information for quality control, traceability, retail packaging. Print quality depends on the film surface, ribbon grade, print settings, maintenance.
2. High-Speed Printing Performance
The SmartDate X45 supports printing speeds of up to 600 mm/s, depending on the operating mode and application configuration. Under suitable conditions, it can support production rates of up to 220 packs per minute at 300 dpi.
This performance makes the printer suitable for packaging operations that need consistent coding without unnecessarily slowing down production.
Actual throughput depends on packaging machine speed, print dimensions, message content, film movement, production conditions.
3. Intermittent and Continuous Printing
The SmartDate X45 supports two printing modes to meet different packaging requirements.
Intermittent printing is designed for packaging machines where the film stops briefly during the sealing or coding cycle. It is commonly used on VFFS machines and other intermittent packaging equipment.
Continuous printing is suitable for applications where packaging film moves continuously during production. It can be integrated into compatible flow-wrapping or continuous packaging lines.
Selecting the correct configuration helps ensure stable printing performance and consistent code positioning.
4. Efficient Thermal Transfer Ribbon Management
Ribbon consumption is an important factor in the operating cost of a TTO printer. The SmartDate X45 offers multiple ribbon-saving modes to help reduce unnecessary ribbon use.
Available functions include radial ribbon saving, interlaced printing, whitespace saving and step-advance modes, depending on the selected settings.
The system supports thermal transfer ribbons with widths from 20 mm to 55 mm and ribbon lengths of up to 1,100 m. Appropriate ribbon selection helps maintain print quality while improving consumable efficiency.
5. User-Friendly 10.1-Inch Touchscreen
The SmartDate X45 features a 10.1-inch full-color touchscreen for message selection, variable data entry, diagnostics, system configuration.
Operators can preview print messages, access diagnostic information, monitor production metrics. Built-in animated tutorials help guide routine tasks such as ribbon installation and printhead maintenance.
These features simplify daily operation and can help reduce setup errors.
6. Printhead Monitoring and Maintenance

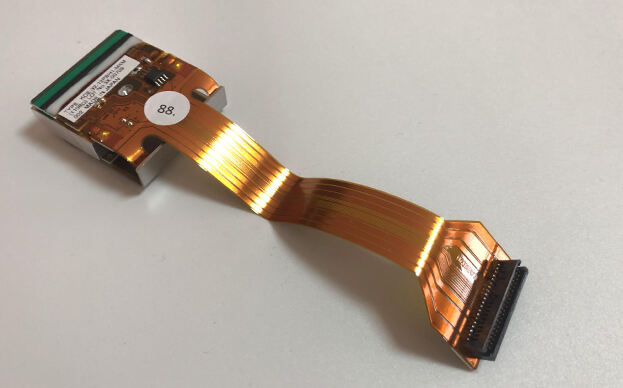

The printer includes dead-dot detection to help identify printhead issues that may affect code quality. Its quick-change printhead design supports easier maintenance.
For applications requiring additional code inspection, the optional SmartDate Detect-Plus system can check the presence, position and quality of printed codes on packages.
The inspection setup should be selected according to the required verification process and production-line configuration.

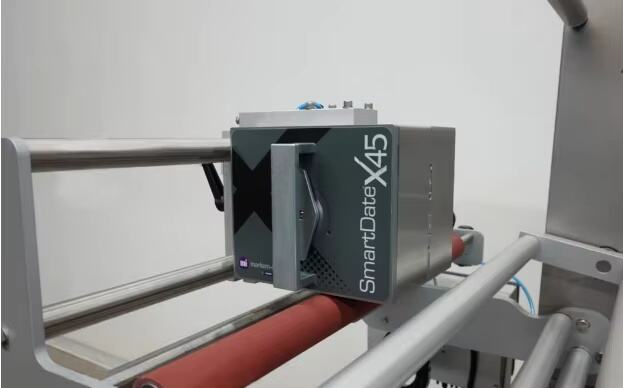

7. Flexible Integration with Packaging Machines
The SmartDate X45 is designed for integration with compatible packaging equipment. Its configuration can be adapted to suit different machine layouts, coding positions, film widths.
Standard communication options include Ethernet and RS-232, with USB available for transferring images, settings and data files. Supported interfaces help connect the printer with packaging machine controls or other compatible production systems.
The printer can also be configured for left-hand or right-hand operation without requiring additional conversion parts.
| Product name | Markem X45 TTO printer |
| Print Area | Intermittent:32mm-53mm*75mm Continuous:32mm-53mm*250mm |
| Print Head | 32mm/53mm ,300doi(120points/mm) |
| Print Mode | Intermittent/Continous |
| Print Frequency | Intermittent: up to 600mm/s Contiunous:30 to 600mm/s |
| Max Length of Ribbon | 1100m |
| Width of Ribbon | 20mm~55mm |
| Interface | USB |
| Power Supply | 90-264V 47/63Hz |
| Air Supply | 150W |
What Can the SmartDate X45 Print?
| Printing Information | Application |
|---|---|
| Production Date | Food & beverage packaging |
| Expiry Date | Food & pharmaceutical packaging |
| Batch Number | Product identification |
| Lot Number | Manufacturing traceability |
| Barcode | Product tracking |
| QR Code | Digital traceability |
| Variable Text | Product information |

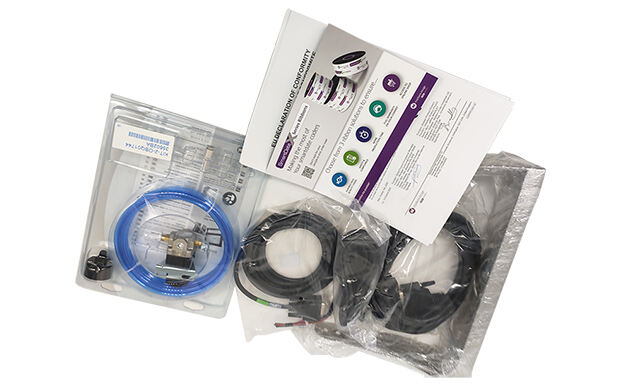

Consumables and spare parts
We also provide various original & compatible spare parts for TTO thermal transfer coding machines.
What Can the SmartDate X45 Print?
The SmartDate X45 TTO printer can print a wide range of variable information on compatible flexible packaging materials.
Common printing applications include:
Production dates
Expiration dates
Best-before dates
Batch numbers
Lot numbers
Serial numbers
Product codes
Company logos
Promotional messages
Linear barcodes
QR codes
Data Matrix codes
Other variable text
Automatic date updating and serial-number functions help reduce repetitive manual data entry. Support for multiple barcode formats makes the system suitable for product identification and traceability applications.
Applications of the SmartDate X45 Thermal Transfer Overprinter
Food and Beverage Packaging
The SmartDate X45 is suitable for printing production dates, expiration dates, batch codes, product information on compatible food packaging films.
Typical applications include:
Snack bags
Potato chip packaging
Biscuit and cookie wrappers
Candy and chocolate packaging
Frozen food bags
Coffee sachets
Powder packaging
Pet food packaging
Dairy-related flexible packaging
The appropriate thermal transfer ribbon should be selected according to the packaging material, storage conditions, required print durability.
VFFS Packaging Machines
Vertical form-fill-seal machines are widely used for packaging powders, granules, snacks, seeds, agricultural products.
The SmartDate X45 can be configured for intermittent or continuous printing to suit compatible VFFS equipment. It prints variable information directly onto the packaging film, reducing the need for separate labels.
Horizontal Flow Wrapping Machines
For biscuits, bakery products, confectionery and similar goods, horizontal flow wrappers create sealed packages from flexible film.
The SmartDate X45 can print product dates, batch numbers, barcodes, promotional information on suitable film during the packaging process.
Pharmaceutical and Personal Care Packaging
The printer can also be used for compatible pharmaceutical, healthcare, cosmetic packaging applications requiring legible date codes, lot identification, variable product information.
Print requirements should be evaluated against the packaging material, regulatory requirements, code verification needs.
Frequently Asked Questions
What is the Markem-Imaje SmartDate X45?
The SmartDate X45 is a thermal transfer overprinter designed to print variable information directly onto flexible packaging films. It is commonly used for date coding, batch identification, barcode printing.
What is the maximum printing speed?
The X45 supports speeds of up to 600 mm/s. Actual packaging throughput depends on print mode, packaging machine performance, print dimensions and operating conditions.
Can the SmartDate X45 print QR codes?
Yes. The system supports various 1D and 2D barcode formats, including QR codes and Data Matrix codes, subject to the selected message configuration.
Which packaging machines can use the X45?
Compatible applications include VFFS machines, horizontal flow wrappers, pouch packaging equipment and other flexible film packaging systems. The printer configuration must match the machine layout and coding requirements.
How long is the thermal transfer ribbon?
The maximum supported ribbon length is up to 1,100 m. Ribbon width ranges from 20 mm to 55 mm.
Does the printer support code inspection?
Dead-dot detection is included to help identify printhead issues. The optional SmartDate Detect-Plus system can provide additional inspection of code presence, position and quality.
What information is needed to select the right TTO printer?
To recommend a suitable configuration, please provide the packaging machine model, film material, required print area, packaging speed, printing content and preferred printing mode. Photos or videos of the packaging process can also help confirm compatibility.
