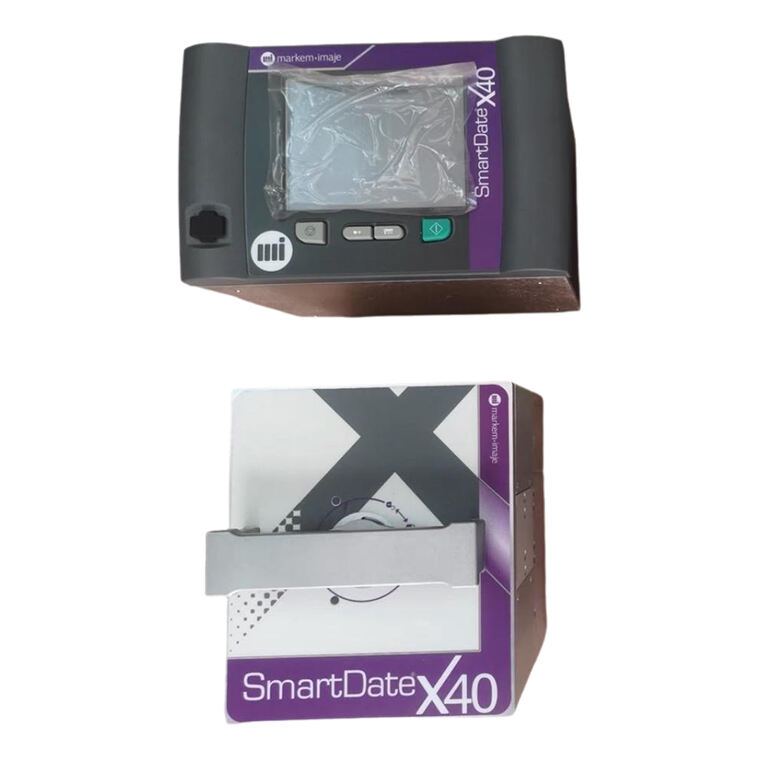

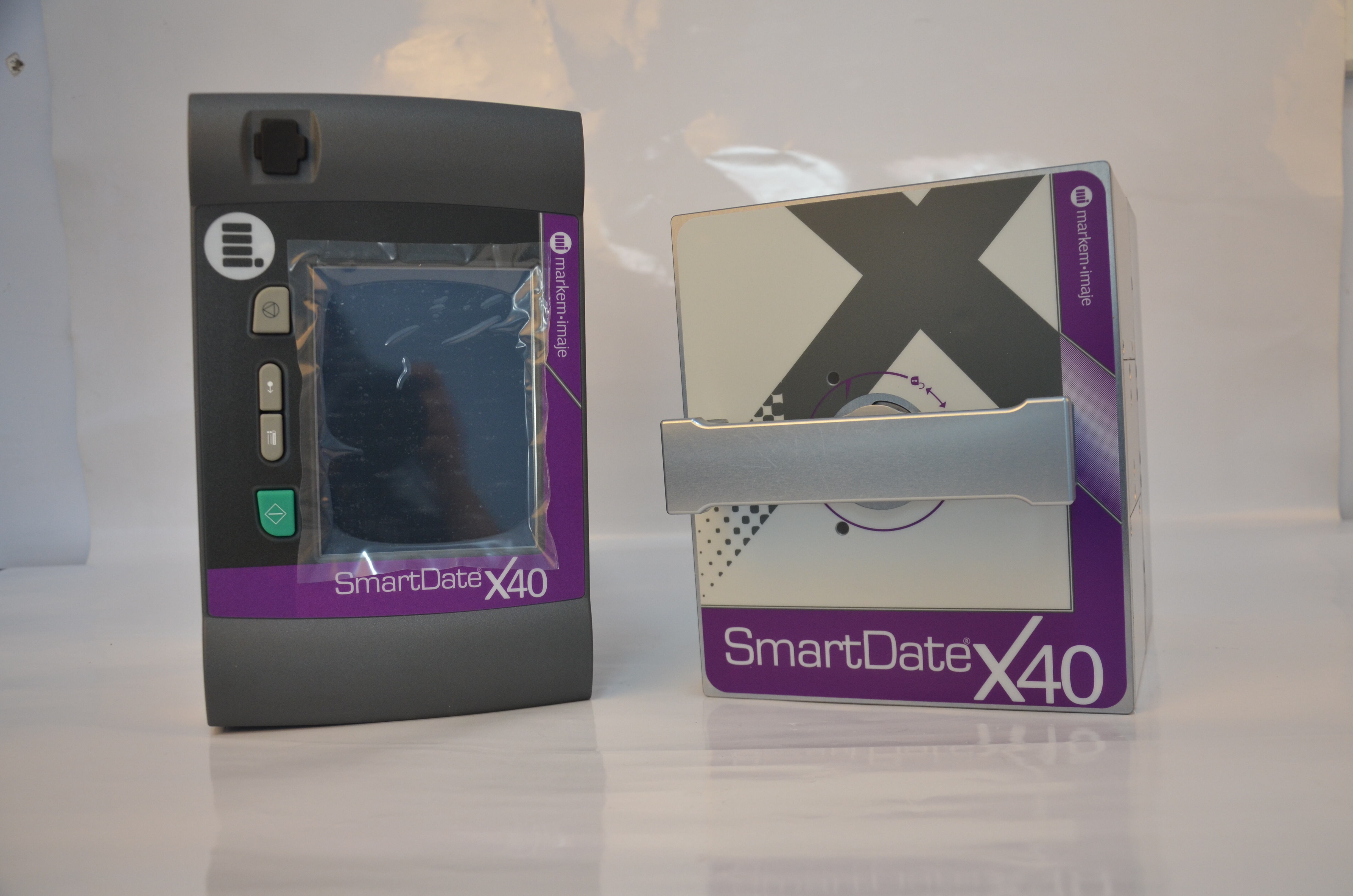

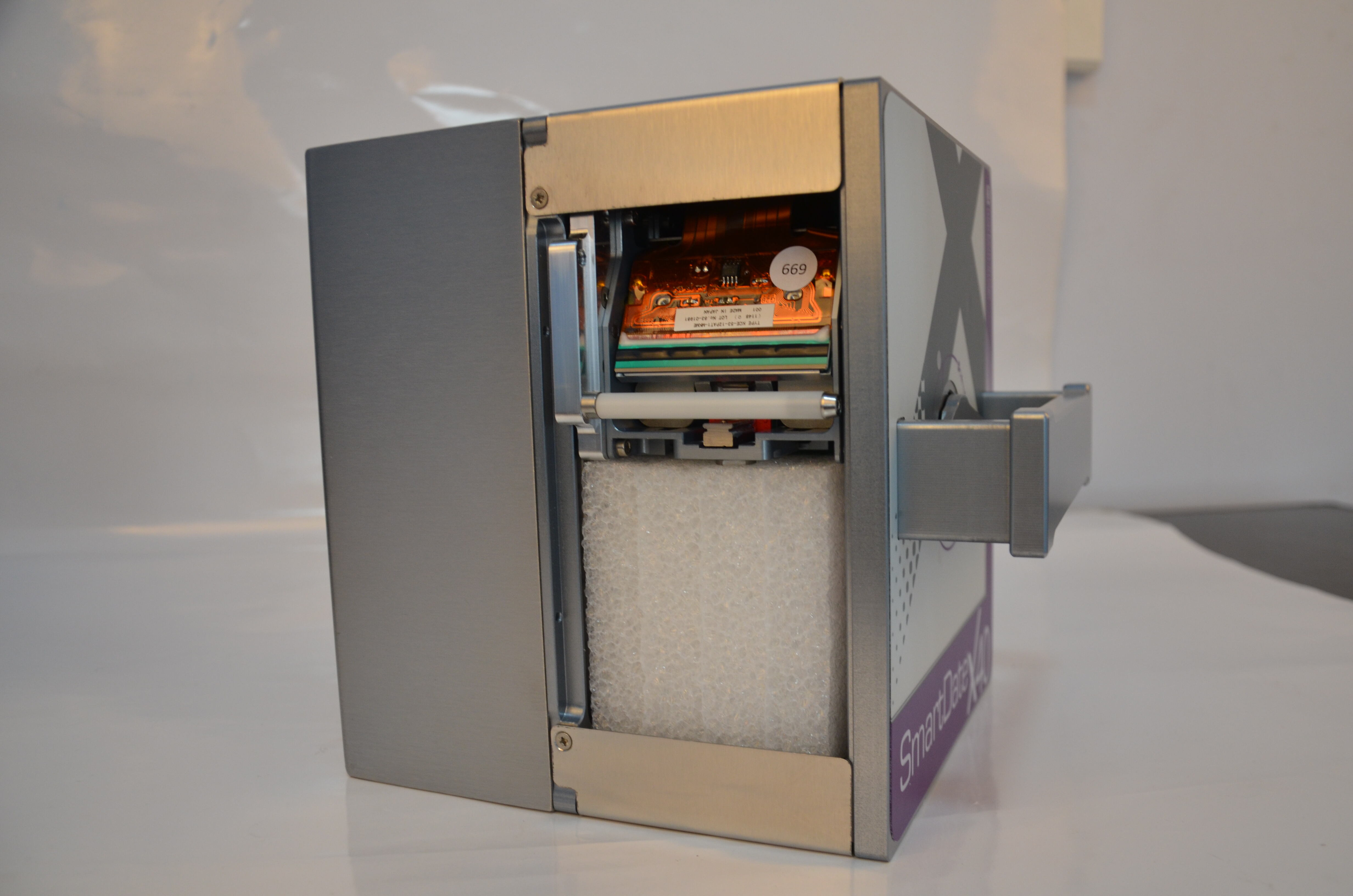

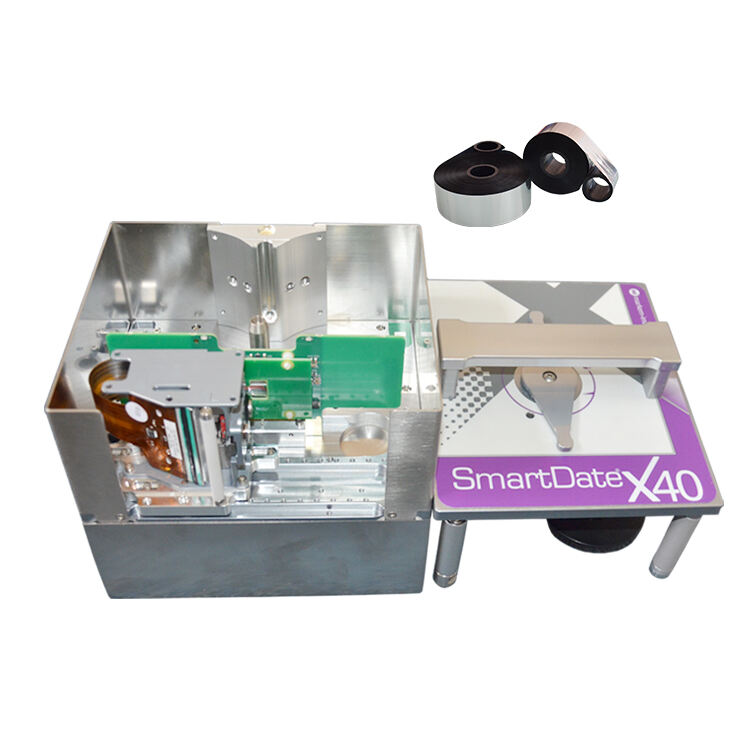

Markem Imaje SmartDate X40
The SmartDate X40 is the latest thermal transfer overprinter from Markem-Imaje, delivering 300dpi high-resolution coding at up to 600 mm/s. It offers both intermittent and continuous printing (53×75mm / 53×150mm) with dead-dot detection, ribbon-saving technology, and energy-efficient features for an industry-leading 99.6 % availability rate.
Description
Thermal Transfer Overprinter
Product Overview:
The SmartDate X40 is the latest thermal transfer overprinter from Markem-Imaje, delivering 300dpi high-resolution coding at up to 600 mm/s. It offers both intermittent and continuous printing (53×75mm / 53×150mm) with dead-dot detection, ribbon-saving technology, and energy-efficient features for an industry-leading 99.6 % availability rate. Ideal for films, pouches, trays, and labels.
Key Features：
● 300 dpi High-Resolution Coding：
Delivers crisp alphanumeric text, barcodes, and 2D DataMatrix codes for regulatory compliance and anti-counterfeiting.
● Up to 600 mm/s Print Speed：
Achieves industry-leading throughput in continuous mode, or 275 ppm intermittent at 10 mm image height, balancing speed and print quality.● Intermittent & Continuous Modes：
· Intermittent: 53 × 75 mm print area for discrete applications
· Continuous: 53 × 150 mm print area for extended layouts

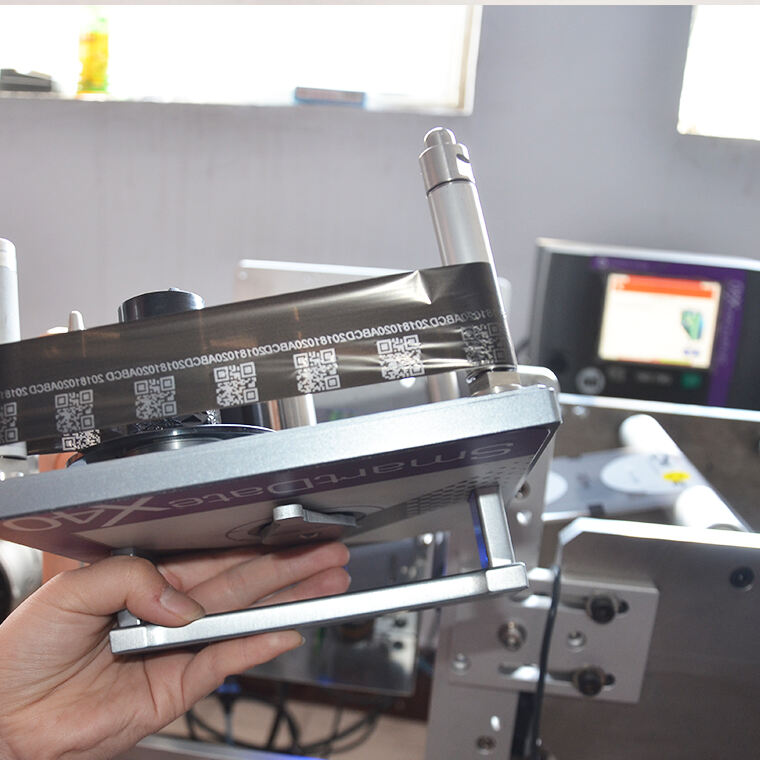

● Ribbon-Saving Technology：
Patented ribbon reverse and tension control reduces ribbon usage by up to 20 %, extending 1 100 m ribbon runs and minimizing changeovers.
● Dead-Dot Detection：

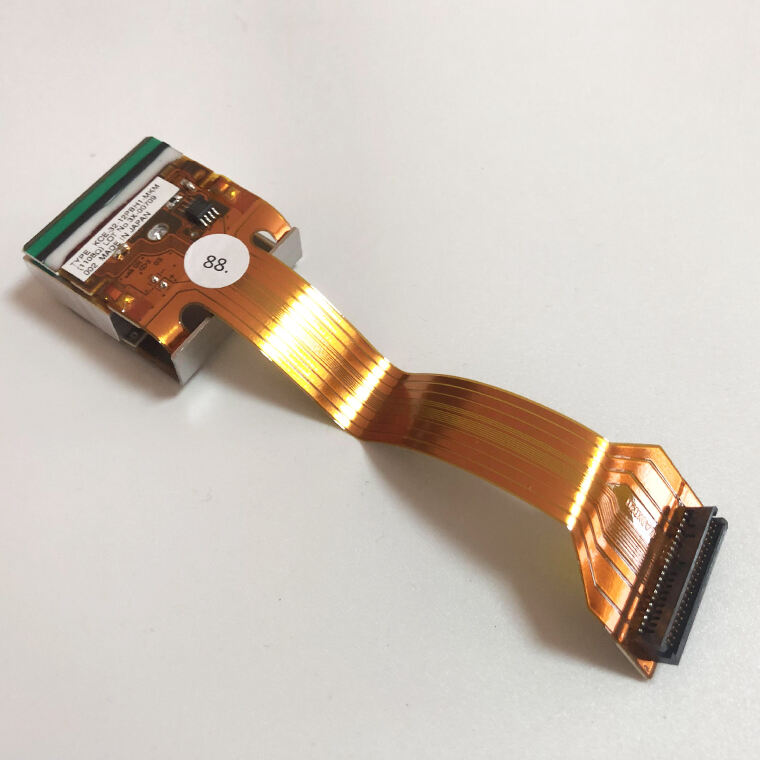

Automatically identifies and compensates for worn or inactive thermal elements, ensuring defect-free print output.
● 99.6% Availability：
Engineered for maximum uptime with redundant systems and preventative diagnostics to support 24/7 production.
● Low Air Consumption：
Uses only 0.4 ml of compressed air per print at 2.5 bar, reducing operating costs and supporting sustainability goals.
● SmartDate® User Interface：
Intuitive color touchscreen plus web-based UI for recipe management, variable data, and seamless MES/ERP integration.
Applications：

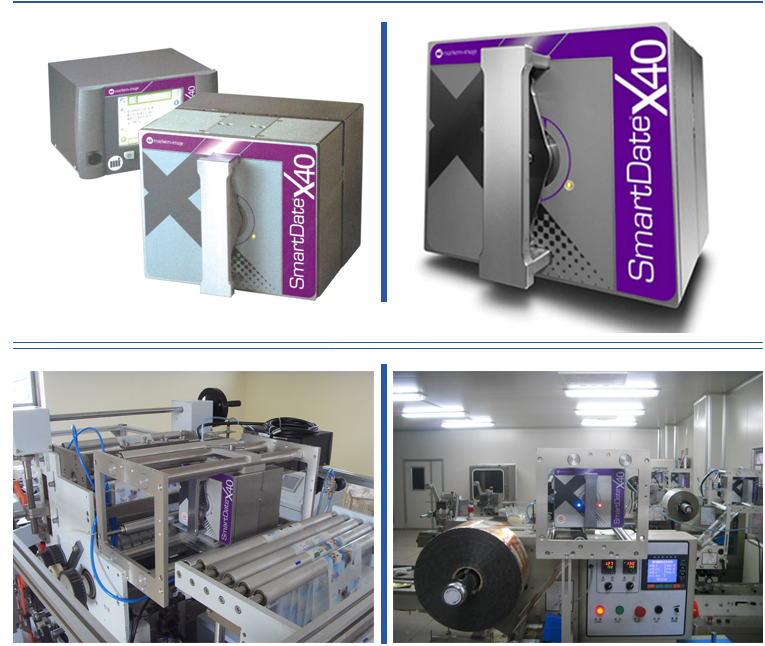

Flexible Packaging Films: Inline date, batch, and barcode printing on pre-made pouches, shrink wrap, and laminate films
Labels & Tickets: High-resolution thermal transfer printing on pressure-sensitive labels, hang tags, and barcode stickers
Cartons & Corrugated: Printing on folding cartons for tea, electronics, and food packaging with crisp 300 dpi codes
Pharmaceuticals & Medical Devices: Coding on sachets, blister packs, IV tubing, and medical film packaging
Cosmetics & Personal Care: TTO marking on flexible tubes, pump bottles, mask sachets, and semi-rigid pouches
Electronics & Cable Marking: Durable thermal transfer coding on wire and cable jackets, conduit, and connector ties
Technical Specifications：
| Print Resolution | 300dpi |
| Print Speed | Up to 600 mm/s |
| Modes | Intermittent / Continuous |
| Intermittent Print Area | 53×75 mm |
| Continuous Print Area | 53×150 mm |
| Ribbon Length | Up to 1100 m |
| Air Consumption | 0.4 ml/print @ 2.5 bar |
| Availability | 99.6 % |
| Control Interface | Color Touchscreen + Web Interface |
| Connectivity | USB / Ethernet / Fieldbus Options |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Temperature | 5–45 °C |
| Weight | 4.5 kg (controller) + printhead assembly |

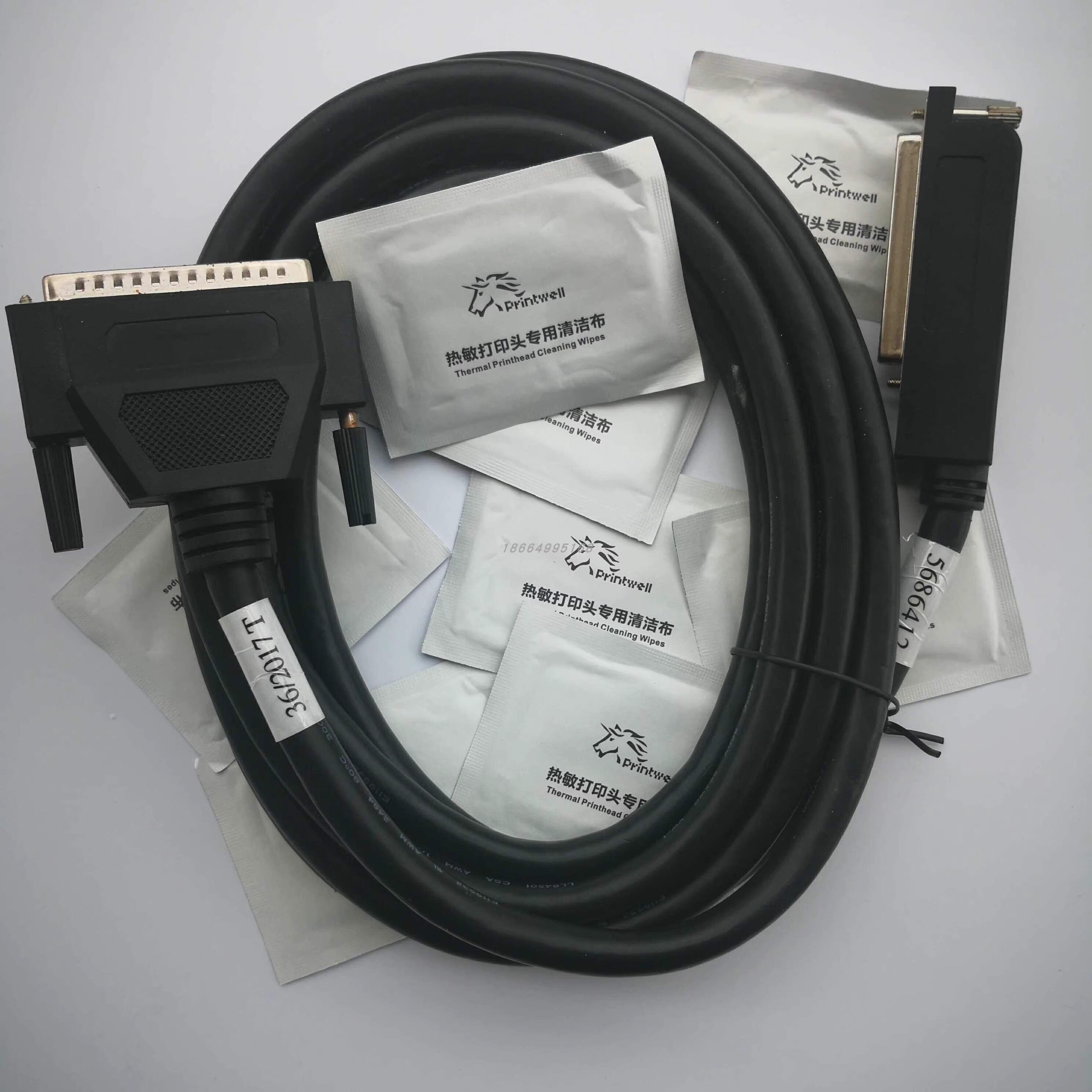

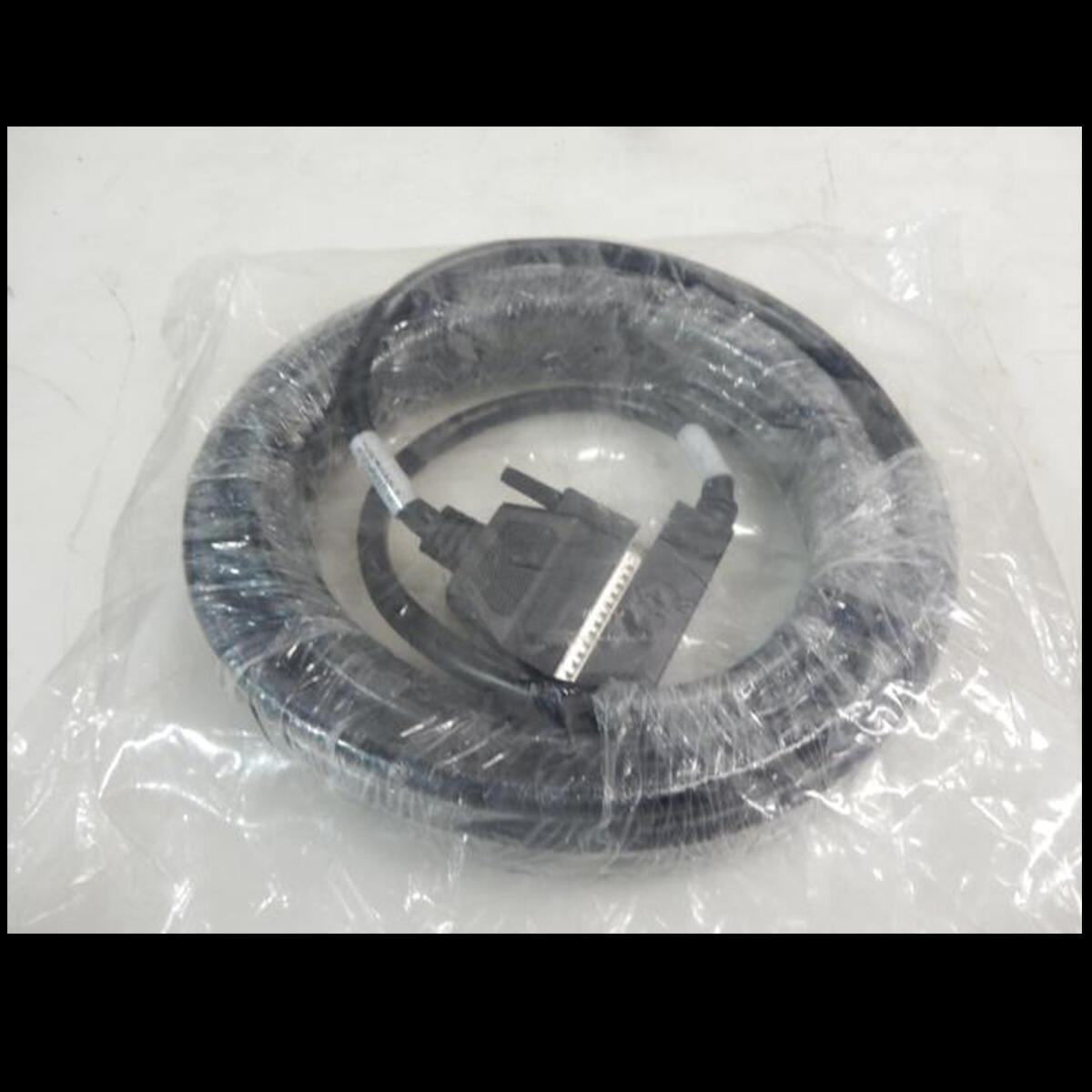

Consumables:
Frequently Asked Questions (FAQ):
Q: Which substrates can X40 print on?
A: Flexible films (PE, PP), foil laminate, paper labels, trays, pouches, and sachets—both porous and non-porous.
Q: How do I switch between intermittent and continuous modes?
A: Simply select the desired print mode on the SmartDate® touchscreen UI. The controller automatically adjusts print head timing and conveyor sync for either 53×75 mm intermittent or 53×150 mm continuous operation.
Q: How does the ribbon-saving technology work?
A: The X40’s patented ribbon reverse and tension control algorithm minimizes ribbon waste by up to 20 %, automatically retracting unused ribbon between print cycles and monitoring ribbon usage in real time.
Q: Can the X40 print 2D codes and serialized data?
A: Yes. The 300 dpi printhead can generate high-quality 1D barcodes, 2D DataMatrix and QR codes, as well as variable text, dates, and serialized numbers via the SmartDate® recipe manager.
Q: How can I integrate the X40 with my MES/ERP system?
A: Integration is straightforward via Ethernet or USB using the built-in Web API or OPC-UA interface. You can pull job data, push print reports, and manage recipes directly from your MES/ERP.
After-Sales Service Guarantee：
Global Support Infrastructure!
1-year free warranty; quality-related parts replaced free; wear parts excluded.
Lifetime maintenance: nominal fee after warranty; lifetime spare parts & tech support.
Remote measurement, design & layout support.
Operation manual, remote installation support & video-based training.
3-Year Electronics Warranty：Covers controller, touch interface, sensors, and drive electronics
Lifetime spare parts availability with rapid response & technical support.
