Videojet 6330 TTO printer (32mm): Up to 250 prints per minute/(53mm): Up to 250 prints per minute
The Videojet 6230 TTO printer "is a thermal transfer printer suitable for flexible packaging applications, which can perform high-quality variable printing at medium printing speed. With 32 mm and 53 mm jet printing widths, the combination of print head and ribbon width can be realized, thus providing a cost-effective solution for your application. "The Videojet 6230 TTO printer" is specially designed for vertical molding, filling and sealing applications, and its jet printing speed is as high as 250 packs/minute.
Description

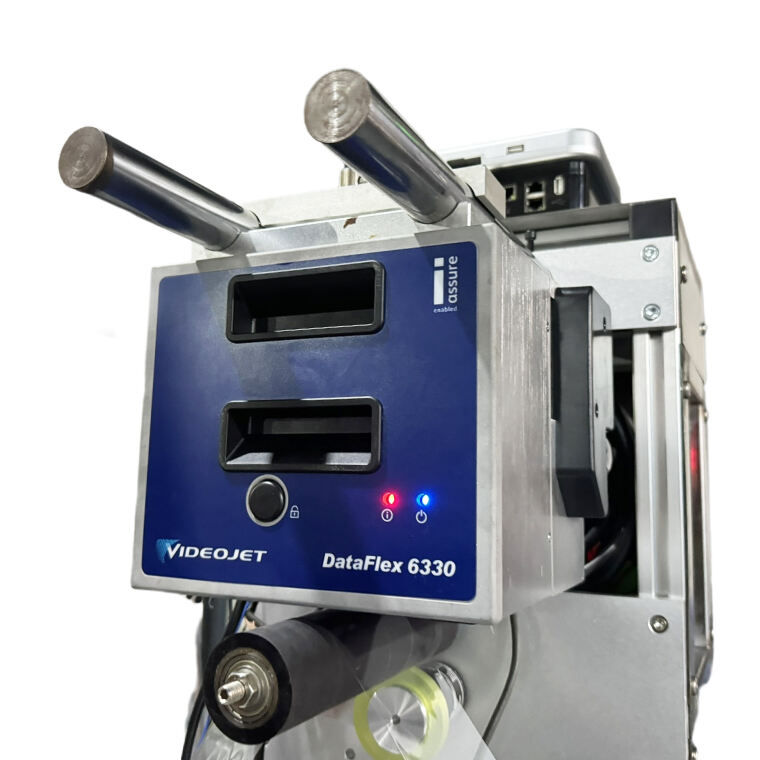

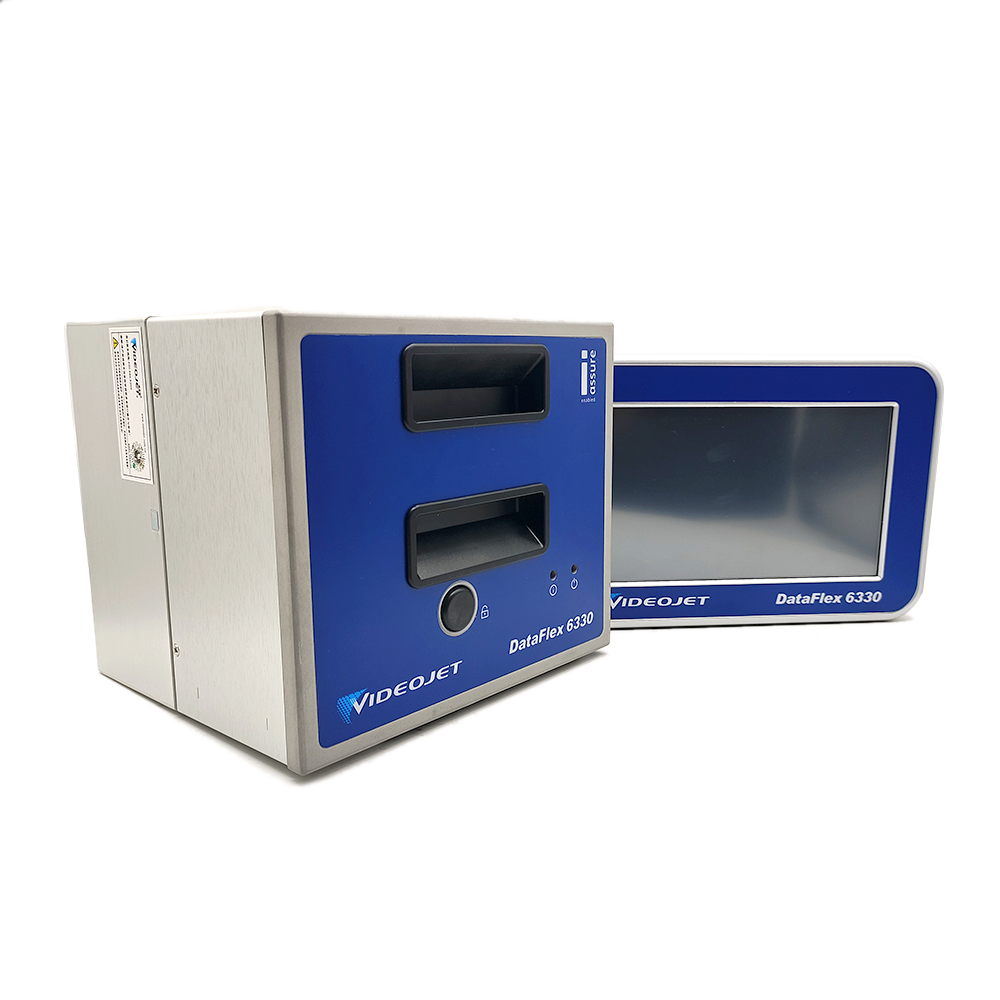

Videojet Dataflex 6330 32/53mm TTO printer
Product Overview
The Videojet DataFlex 6330 is an industrial thermal transfer overprinter (TTO) designed for printing variable information on flexible packaging materials. Available with 32mm and 53mm printheads, this system supports different coding area requirements for packaging lines.
The Videojet 6330 TTO printer can print production dates, expiry dates, batch numbers, barcodes, QR codes, product information and other variable data. It is suitable for manufacturers that need clear, consistent coding on packaging films, foils and compatible labels.
With intermittent and continuous printing modes, a maximum print speed of 750mm/s and throughput of up to 250 prints per minute under suitable application conditions, the Videojet 6330 helps support efficient packaging operations. Actual output depends on packaging speed, code content, substrate and machine configuration.
Key Features of the Videojet 6330
Two printhead widths: Choose between 32mm and 53mm according to the required print area.
High-speed printing: Maximum print speed of up to 750mm/s.
Flexible operating modes: Supports intermittent and continuous printing.
Code quality monitoring: Built-in iAssure technology helps identify potential code quality issues.
Airless electronic operation: Videojet Intelligent Motion technology helps simplify operation and reduce reliance on conventional compressed-air adjustments.
Ribbon-saving functions: Multiple ribbon economy modes help improve ribbon utilization.
User-friendly interface: Color touchscreen, print preview and onboard diagnostics support daily operation.
Flexible data printing: Supports variable text, dates, counters, graphics and a range of barcode formats.
These features make the Videojet 6330 a practical option for packaging manufacturers seeking reliable date and batch coding. Feature availability and performance should be confirmed for the selected configuration.
32mm vs. 53mm Printhead
The Videojet 6330 is available in two printhead widths to suit different coding requirements.
Videojet 6330 32mm TTO Printer
The 32mm printhead is suitable for applications with a narrower coding area. It can be considered when the required information consists of dates, batch numbers, short text or compact codes.
The compatible ribbon width range is 20–33mm. The maximum print area is 32mm wide by 75mm long in intermittent mode, or 32mm wide by 200mm long in continuous mode.
Videojet 6330 53mm TTO Printer
The 53mm printhead provides a wider coding area for applications that need more text, larger graphics or more complex code layouts.
The compatible ribbon width range is 20–55mm. The maximum print area is 53mm wide by 75mm long in intermittent mode, or 53mm wide by 200mm long in continuous mode.
Both versions offer 300dpi print resolution. The best choice depends on the amount of information to be printed, the available packaging space and the requirements of the production line.
| Specification | Value |
| Printer Mode | Intermittent and Continuous Motion |
| Print Gap | Consistent 0.020″ (0.5mm) |
| Ribbon Widths | 6330 (32mm): 0.8" (20mm), 1.3" (33mm) max |
| 6330 (53mm): 0.8" (20mm),2.2" (55mm) max | |
| Bar Code Printing | EAN 8, EAN 13, UPC-A, UPC-E, Code 39, EAN 128, Code 128, ITF, RSS (including 2D composite codes); others may be available upon request |
| Operator Interface | TFT SVGA 800×480 full-color LCD and touch screen, WYSIWYG print preview, full on-board diagnostics, 3 levels of password protection, extensive language support |
| Leader/Follower Capability (Up to 4 Printers Controlled by One User Interface) | Up to four Videojet DataFlex® 6330 printers controlled via a single CLARiTY™ control unit |
| Standard Communication | RS232, dual Ethernet, USB memory stick and scanner support, Binary and ASCII comms protocols, Windows drivers ZPL and SATO emulations |
| Web Browser Capability | Yes |
| Continuous Mode: | - |
| Maximum Print Area | 6330 (32mm): 1.3" (32mm) wide x 7.9" (200mm) long |
| (Width x Length) | 6330 (53mm): 2.1" (53mm) wide x 7.9" (200mm) long |
| Maximum Print Speed | 29.5 in./sec (750mm/sec) |
| Minimum Print Speed | 0.04 in./sec (1mm/sec) |
| Estimated Maximum Throughput (Single Line Code) | 6330 (32mm): Up to 250 prints per minute |
| 6330 (53mm): Up to 250 prints per minute | |
| Intermittent Mode: | - |
| Maximum Print Area | 6330 (32mm): 1.3" (32mm) wide x 2.95" (75mm) long |
| (Width x Length) | 6330 (53mm): 2.1" (53mm) wide x 2.95" (75mm) long |
| Maximum Print Speed | 6330 (32mm): 29.5 in./sec (750mm/sec) |
| 6330 (53mm): 29.5 in./sec (750mm/sec) | |
| Minimum Print Speed | 1.6 in./sec (40mm/sec) full print quality; 0.4 in./ sec (10mm/sec) draft mode print quality |
Offering print speeds of up to 750mm/s andthroughputs up to 250 ppm', the 6330 is availablein a 53mm printhead and a 32mm printhead forsmaller printing areas.

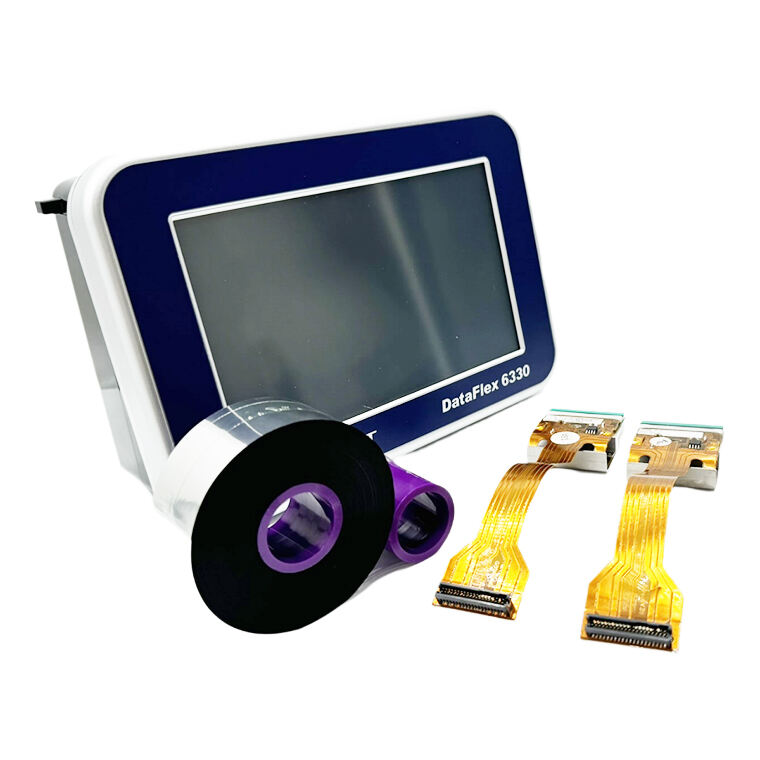

Ribbon Compatibility and Consumables
Selecting the correct thermal transfer ribbon is important for print clarity, adhesion and operating efficiency. The Videojet 6330 supports compatible wax/resin and resin ribbon options, with ribbon length available up to 1,200m depending on composition and color.
The 32mm version accepts ribbon widths from 20mm to 33mm, while the 53mm version accepts widths from 20mm to 55mm. Ribbon grade should be selected according to the packaging substrate, code requirements and operating conditions.
When ordering replacement ribbons or parts, provide the printer model, printhead width and existing consumable specifications. This helps avoid ordering a ribbon or component that does not match the installed configuration.
Why Choose BestProPack?
BestProPack supplies packaging machinery, coding equipment and related consumables for industrial packaging applications. We help customers identify suitable coding solutions according to their machine configuration, packaging material and production requirements.
When requesting a quotation for the Videojet 6330 TTO printer, please specify whether you need the 32mm or 53mm version. You can also share your packaging machine model, required code content and production speed so that compatibility can be reviewed.
Request a Quote
Looking for a Videojet 6330 thermal transfer overprinter for your packaging line? Contact BestProPack for product information, configuration confirmation and compatible ribbon options.
Please provide your required printhead width, packaging material and application details to help identify the appropriate solution for your production needs.
