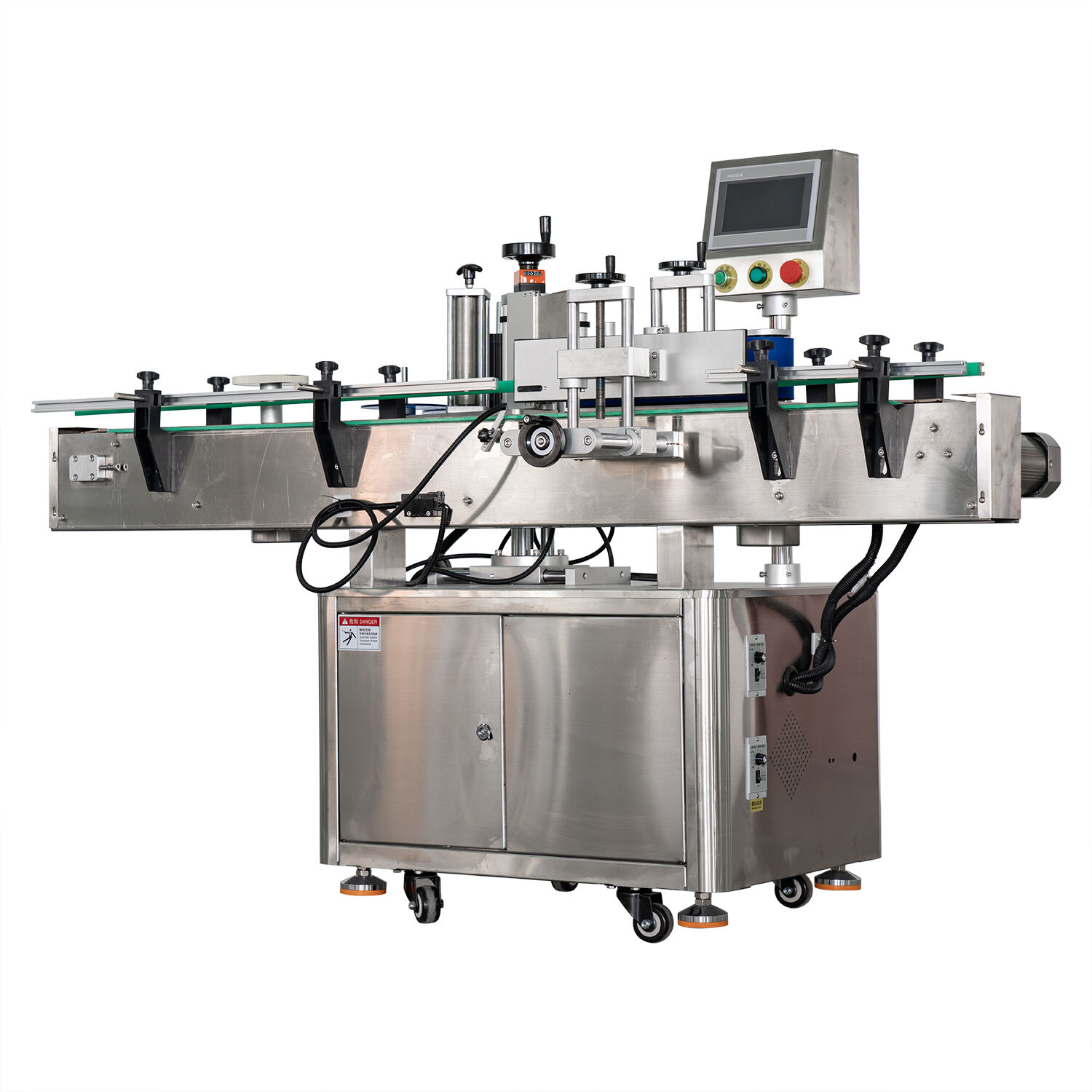

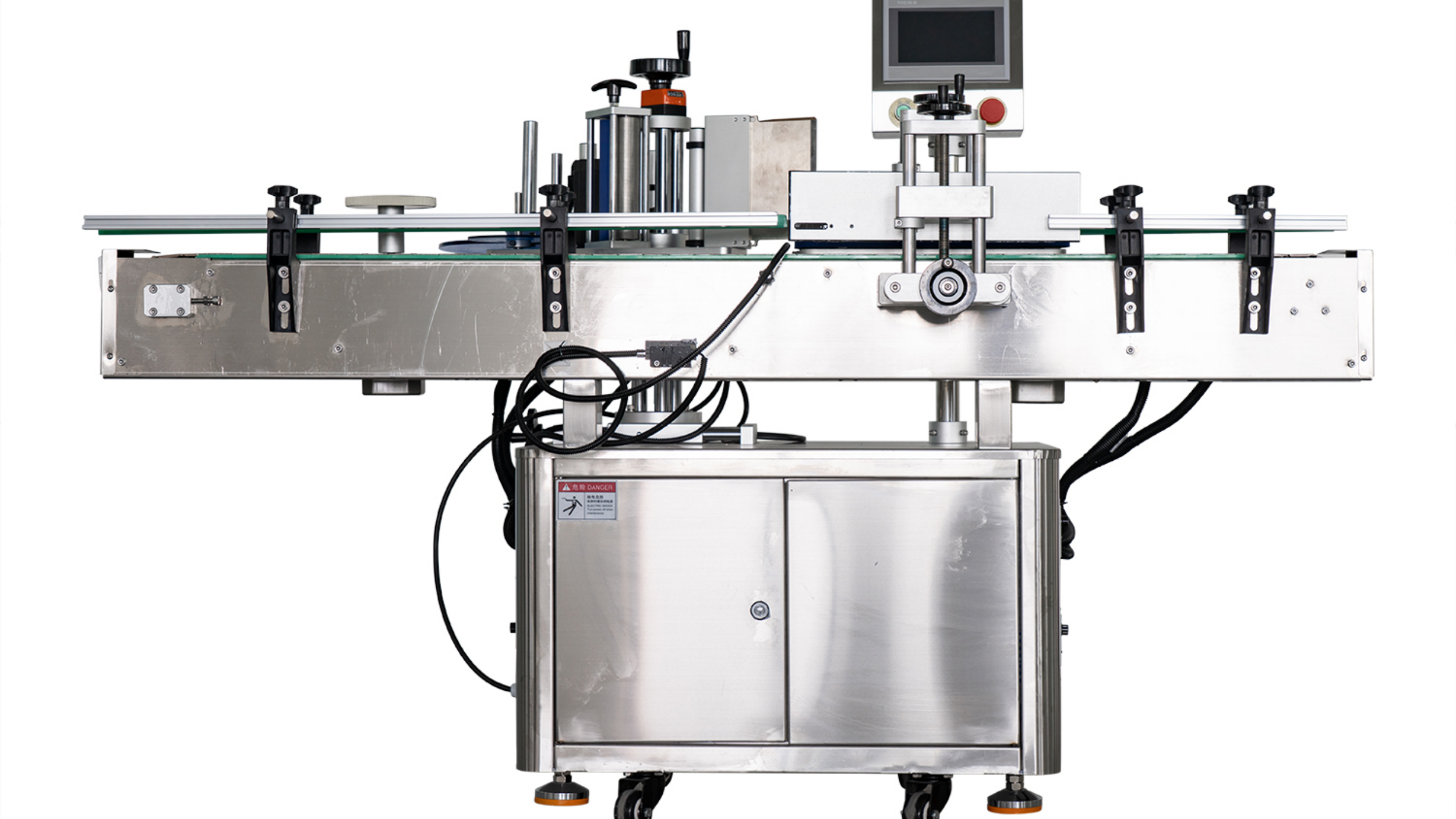

Automatic Rolling Round Bottle Labeling Machine
This is a high-efficiency and stable labeling machine designed for round bottles. It supports both full-wrap and half-wrap labeling, widely used in industries such as pharmaceuticals, food, and daily chemicals. Equipped with automatic bottle separation, label alignment correction, and intelligent detection features, the machine delivers precise, wrinkle-free labeling.
Description
Automatic Rolling Round Bottle Labeling Machine
Note：Exclusive Discount for Quote Requests
Limited-time subsidy available exclusively for users submitting a quote on this page. Remaining slots are updated in real time. Contact us to secure your offer. Thank you!
Product Overview:
This is a high-efficiency and stable labeling machine designed for round bottles. It supports both full-wrap and half-wrap labeling, widely used in industries such as pharmaceuticals, food, and daily chemicals. Equipped with automatic bottle separation, label alignment correction, and intelligent detection features, the machine delivers precise, wrinkle-free labeling. It can be seamlessly integrated with existing production lines and can be equipped with coding or inkjet printers for simultaneous labeling and marking, significantly improving packaging efficiency.
Key Selling Points：
Wide Bottle Compatibility:Suitable for bottles with diameters from φ25mm to φ100mm and heights from 25mm to 230mm, covering most round containers.
Full or Half-Wrap Labeling:Easy switch between full-wrap and partial labeling; no tools required.
Smooth and Accurate Labeling:Equipped with a deviation correction system and pressure-based label belt to ensure high alignment accuracy with no bubbles or wrinkles.
Smart Automation:Automatically detects product and label position; supports 24/7 continuous operation without manual supervision.

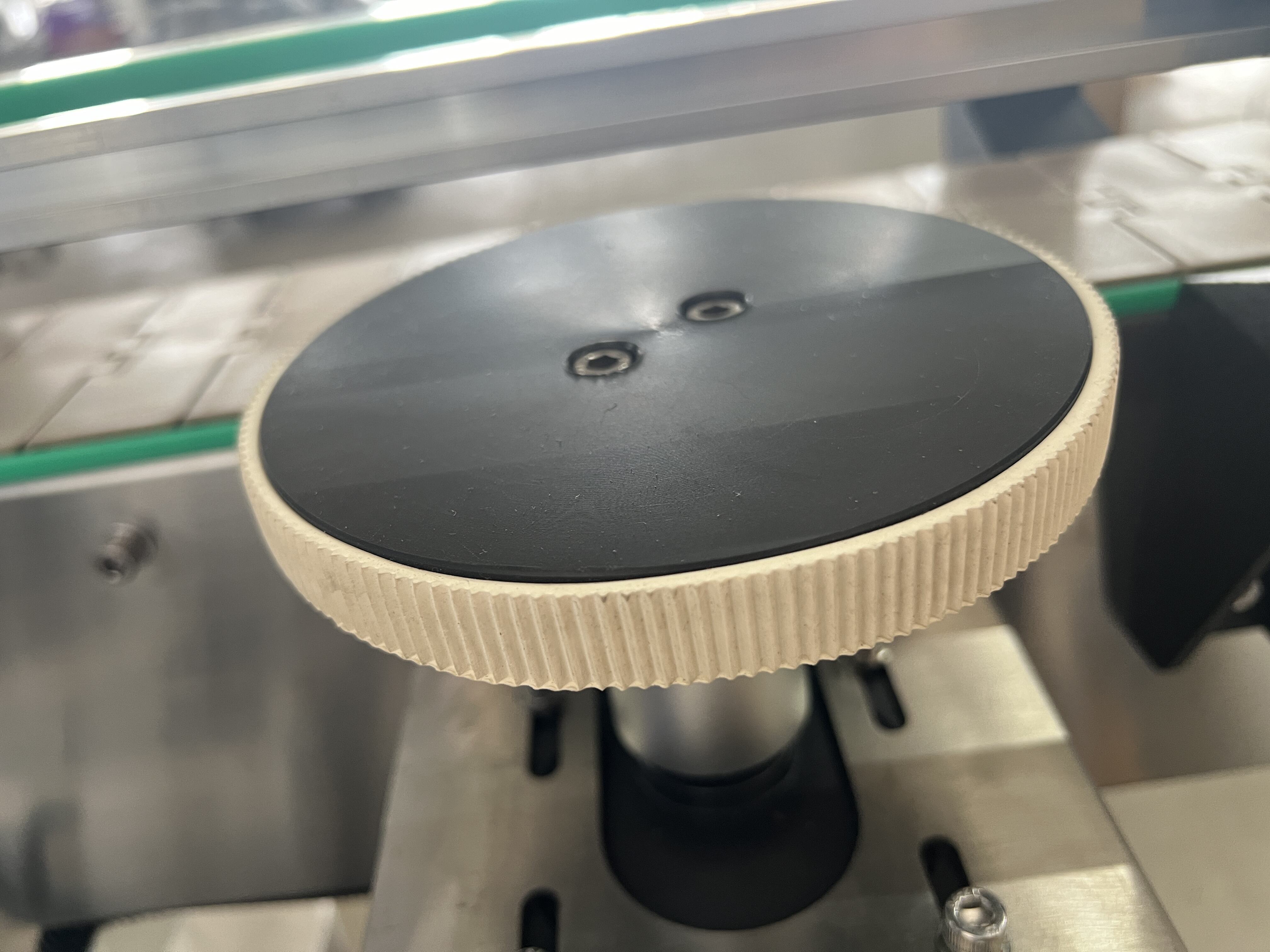

Flexible Line Integration:Built-in bottle separation unit allows easy integration with upstream/downstream equipment. Optional auto infeed and outfeed systems.
Robust & GMP-Compliant Build:Constructed with stainless steel and anodized aluminum, suitable for cleanroom and GMP production environments.
Industries & Applications：
Suitable Industries：

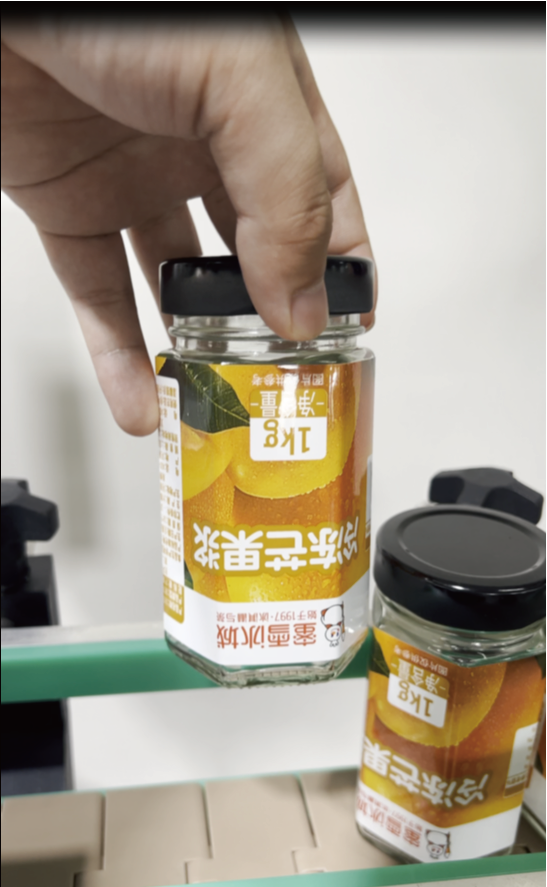

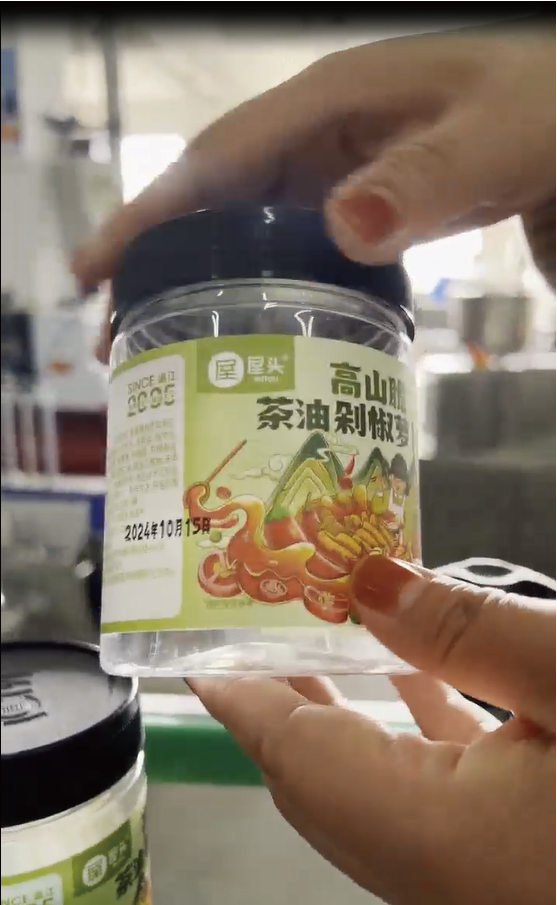

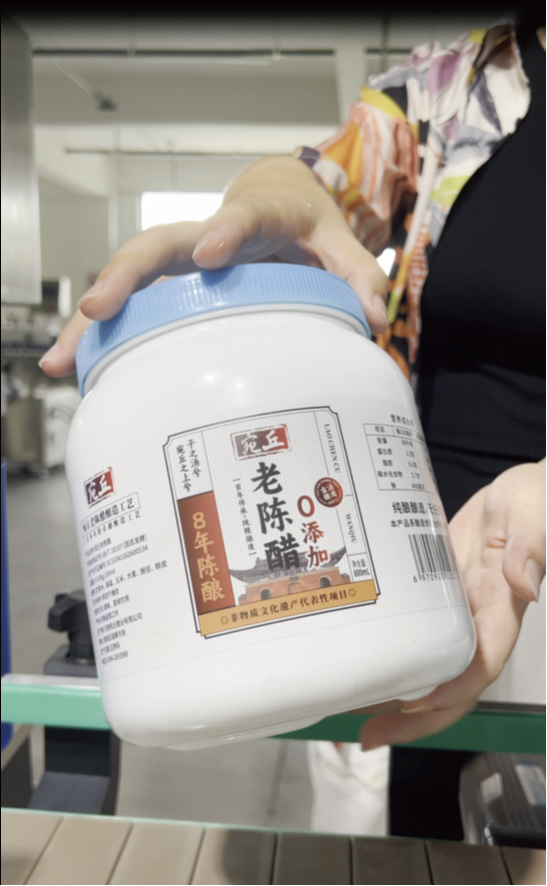

Food: Sauce bottles, jam jars, canned products
Pharmaceuticals: Medicine bottles, supplement containers
Cosmetics & Personal Care: Shampoo, lotion bottles
Other: Electronics, chemicals, and round packaging across various sectors
Typical Use Cases：

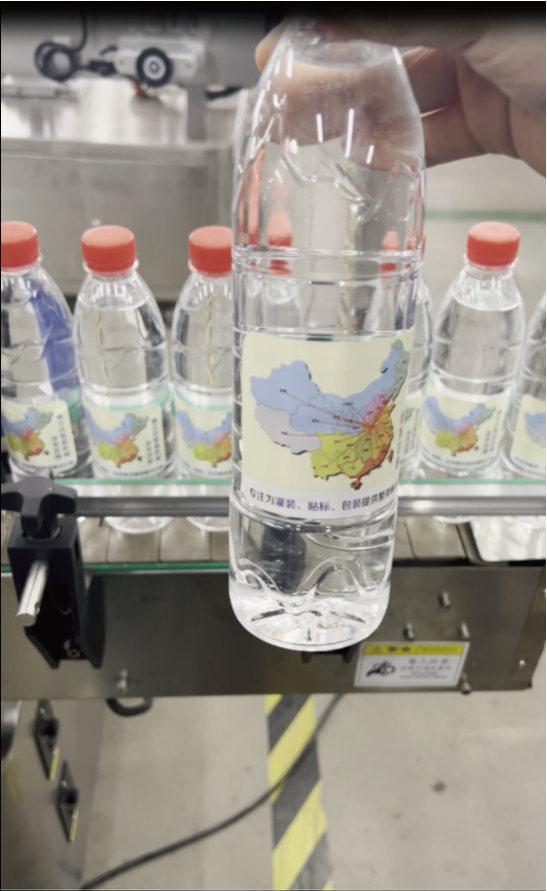

PET bottle labeling
Cosmetic glass bottle labeling

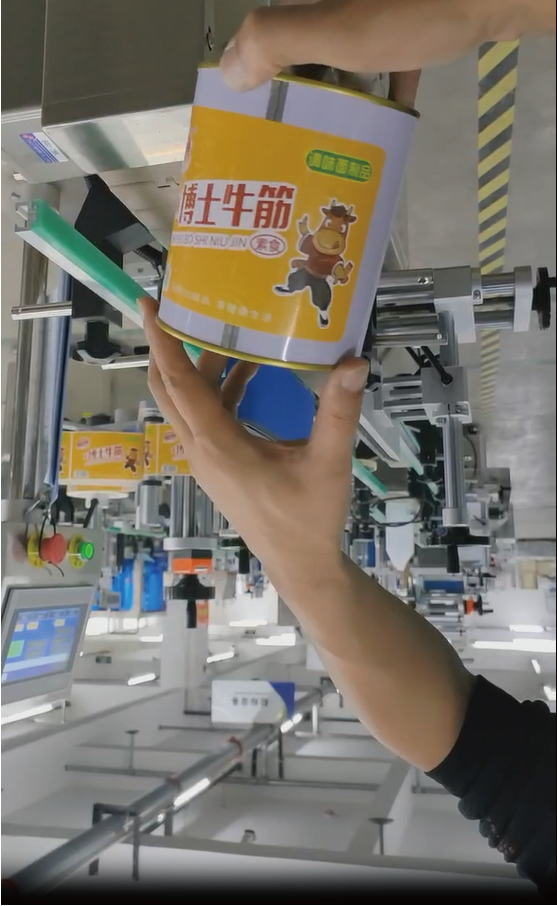

Canned food container labeling
Full-wrap pharmaceutical labeling
Technical Specifications：
Standard configurations shown below; customization available upon request.
| Model | BA-661 |
| Product Diameter | φ25mm–φ100mm (round bottles only) |
| ProductHeight | 25mm–230mm (depends on bottle shape) |
| Label Size | Length: 20mm–285mm；Width: 15mm–160mm |
| Labeling Speed | 30–80pcs/min (depends on bottle/label size) |
| Labeling Accuracy | ±1mm (excluding bottle/label tolerance) |
| Machine Size | Approx. 1950×1120×1340mm (L×W×H) |
| Power Supply | AC220V, 50Hz |
| Machine Weight | Approx.150kg |

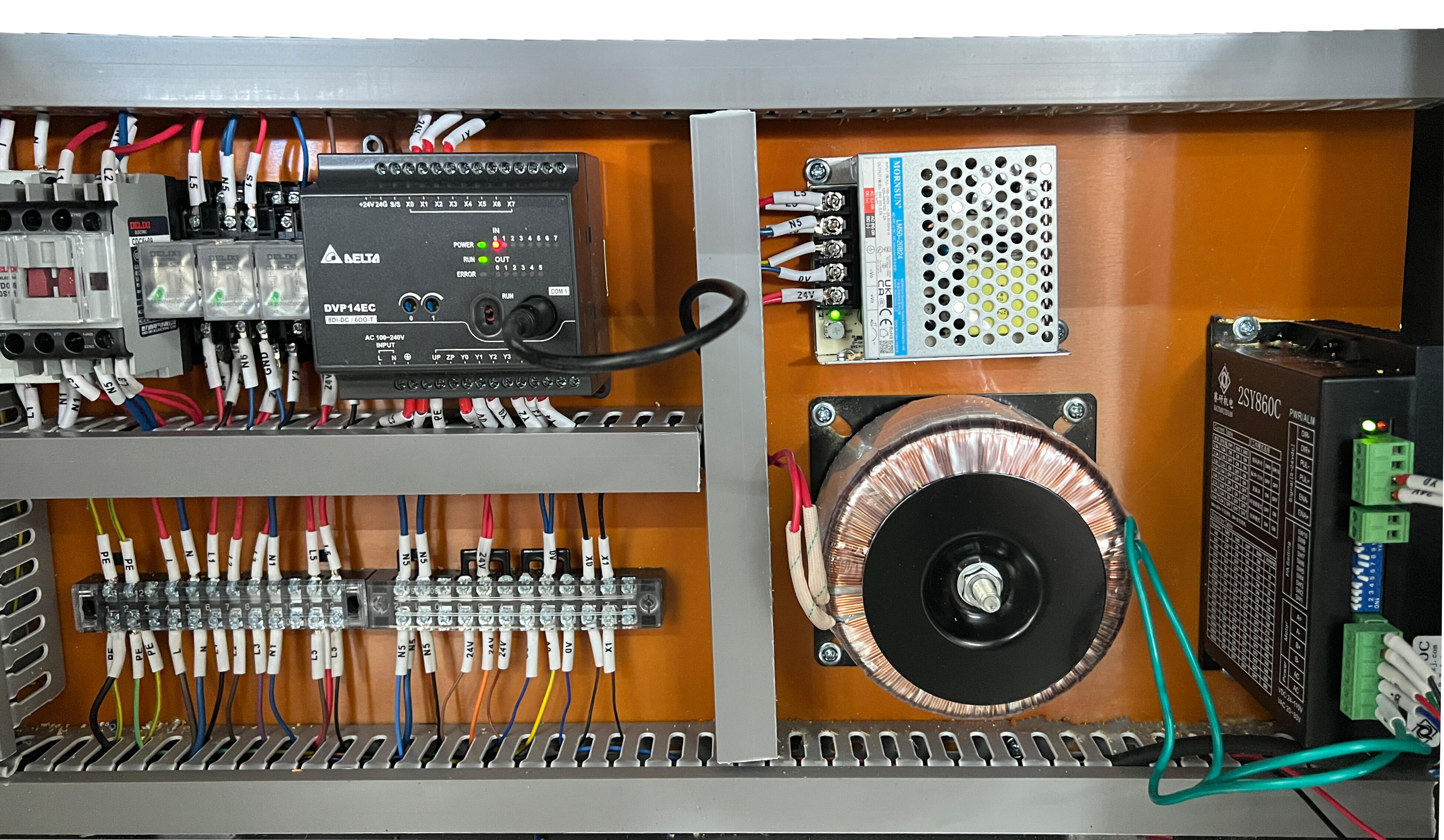

Main Components:
Intermediate Relay：CHINT
Side Sensor：SICK / Leuze / Zhongxin(based on configuration)
Object Detection Sensor：Panasonic / Zhongxing
PLC Controller：Panasonic / Delta
Touchscreen HMI：Kunlun Tongtai / Delta
Conveyor Motor：Dongbang Adjustable-Speed Motor (DPG)
Label Drive Motor：Wanyan Stepper Motor
Wanyan Stepper Motor：Dongbang Adjustable-Speed Motor (DPG)
Bottle Separator Motor：Dongbang Adjustable-Speed Motor (DPG)
Optional Custom Modules:
Thermal coding or inkjet printing system (date, batch, barcode)
Automatic bottle unscrambler / feeder
Automatic collection unit
Rotary position labeling (with orientation control)
Custom non-standard functions available on request
Working Principle & Operation:
Principle:

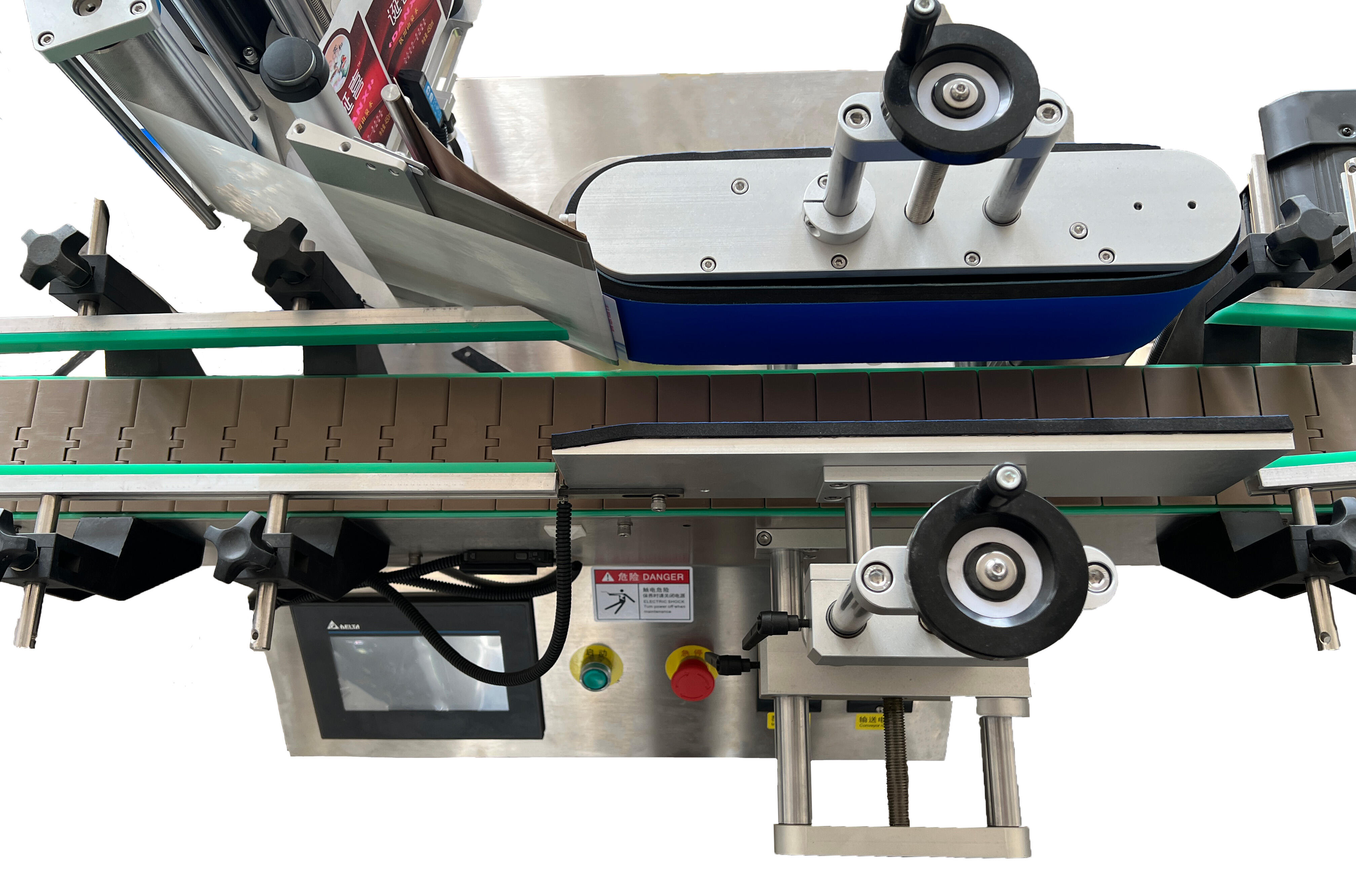

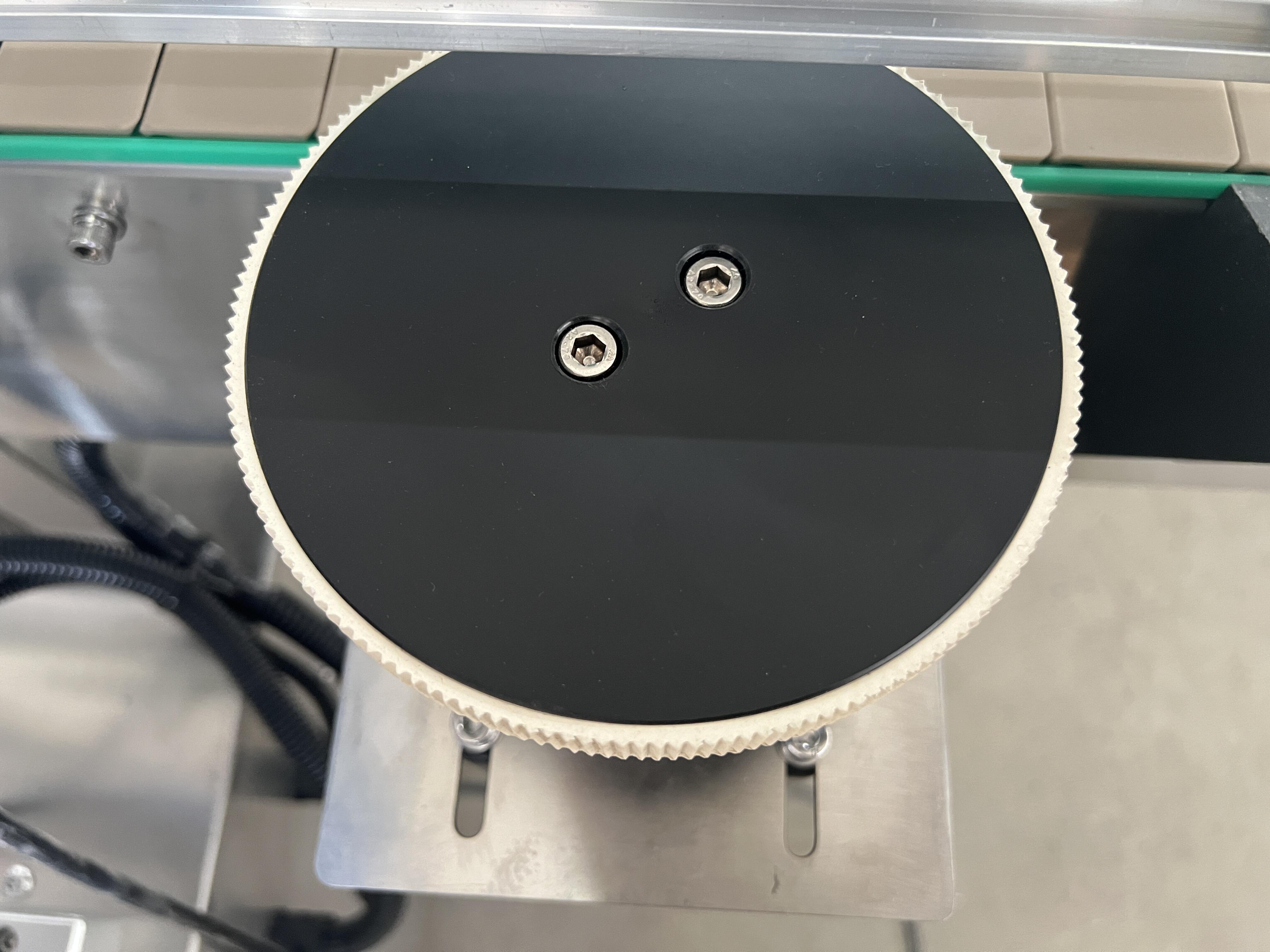

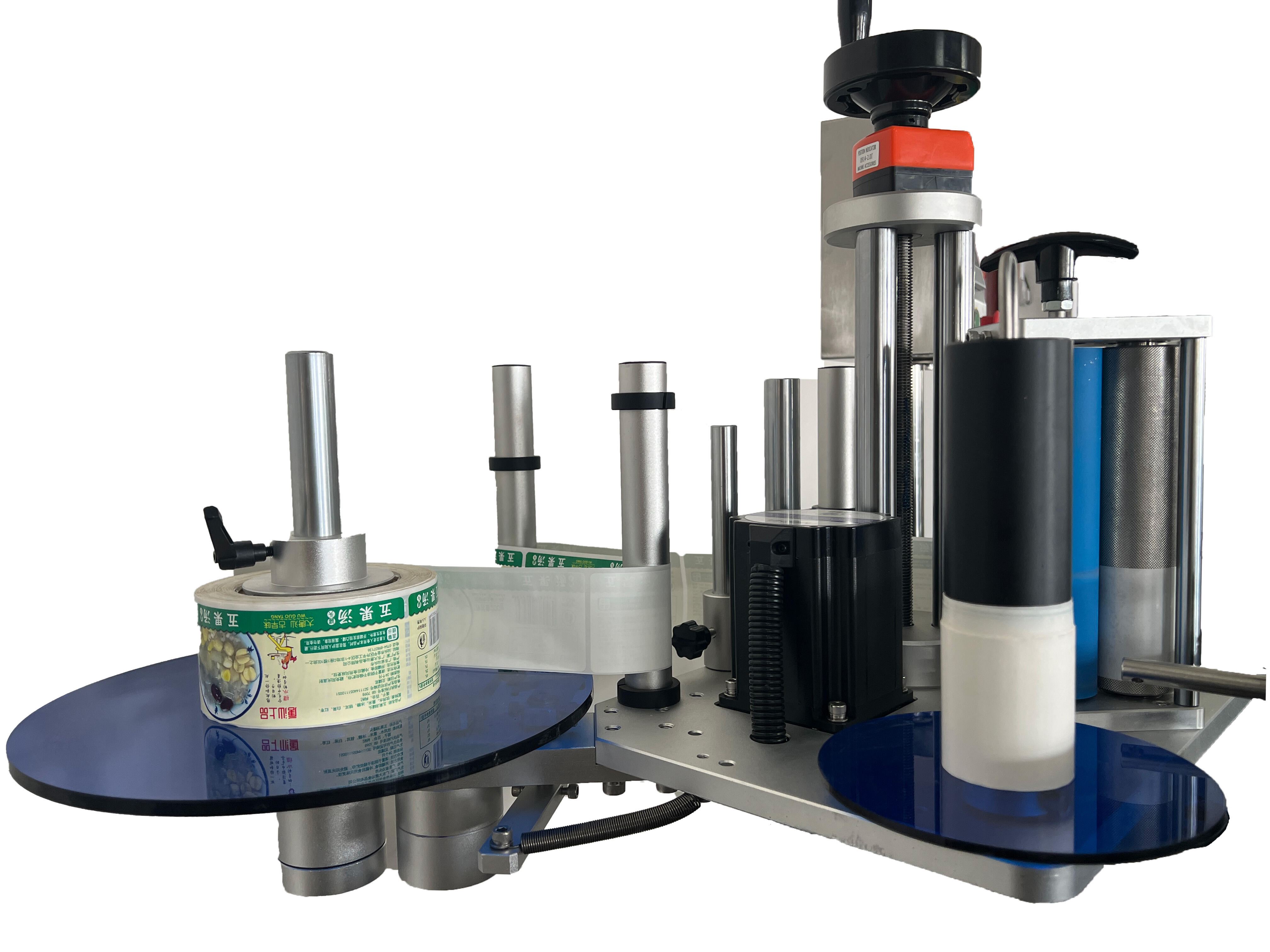

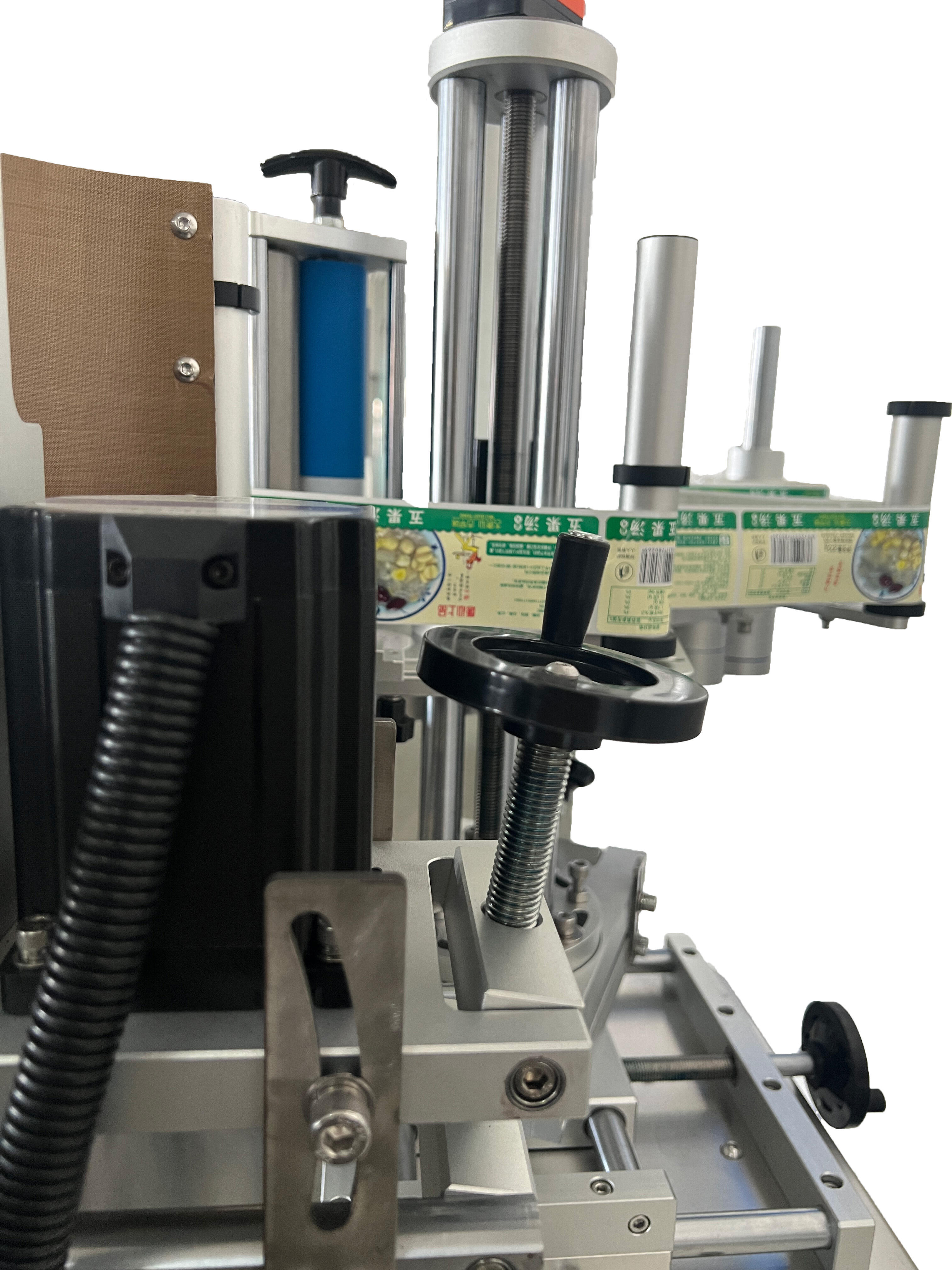

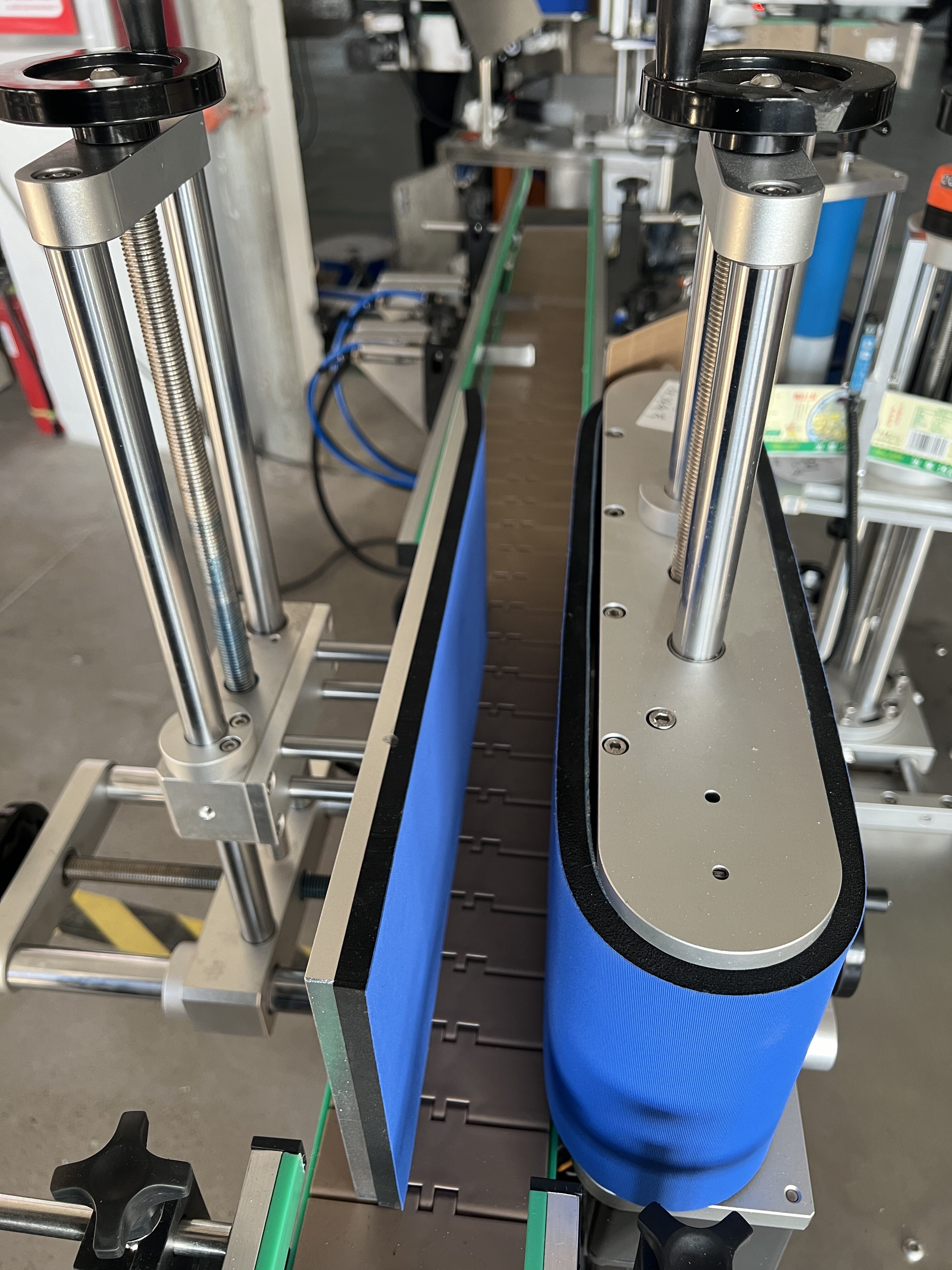

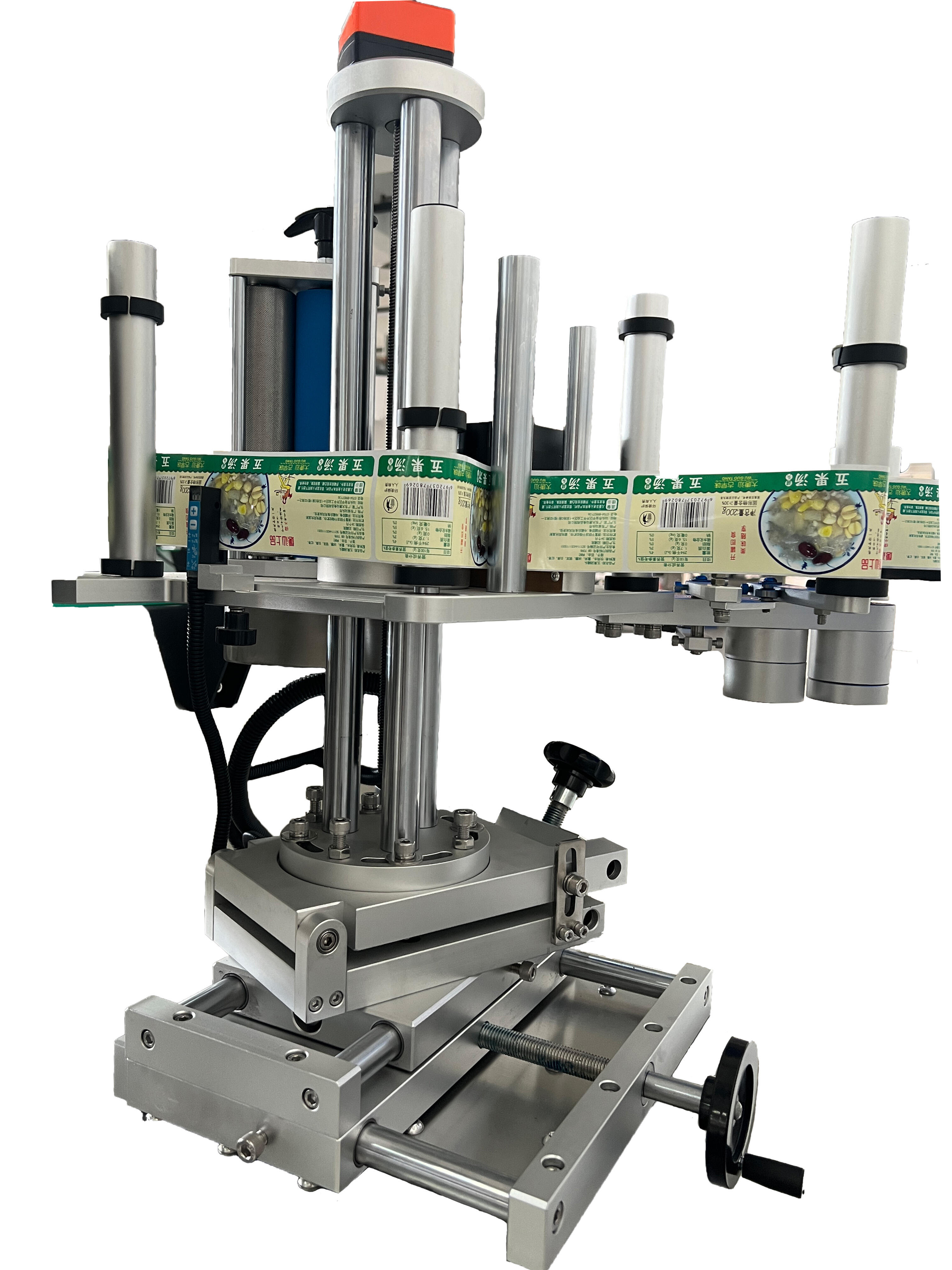

The machine separates bottles via a spacing mechanism. Once a sensor detects the bottle, it signals the control system (PLC) to dispense the label at the correct moment. The label is then applied to the product surface, and a pressure belt rotates the bottle to complete the wrap-around label application.
Operation Steps:
Product loading (or auto feeding) → Conveying → Bottle separation → Detection → Label dispensing → Label wrapping → Collection of labeled bottles
Frequently Asked Questions (FAQ):
Q:Can this machine apply both full-wrap and half-wrap labels?
A: Yes, it supports both modes. Switching between them is easy and doesn’t require any tool or part changes.
Q:Is it compatible with plastic and glass bottles?
A: Absolutely. It works with PET, plastic, and glass round bottles.
Q:Does it support batch/date/barcode printing?
A: Yes. It can be equipped with hot stamp coder or inkjet printer to print production dates, batch numbers, or barcodes during labeling.
Q:Can this machine be connected to my current production line?
A: Yes. It can run as a standalone machine or be integrated into an existing automated line. Auto feeding and collecting systems are available.
Q:Is the machine easy to operate? Will I need a technician?
A: It's very user-friendly. Operated via touchscreen interface with intuitive settings. Your staff can be trained quickly without technical expertise.
After-Sales Support:
12-Month Warranty：Free replacement for parts with manufacturing defects (excluding consumables)
Lifetime Support：Permanent spare part supply and remote technical assistance
Fast Response: User manual, tutorial videos, and real-time guidance for quick setup and troubleshooting
