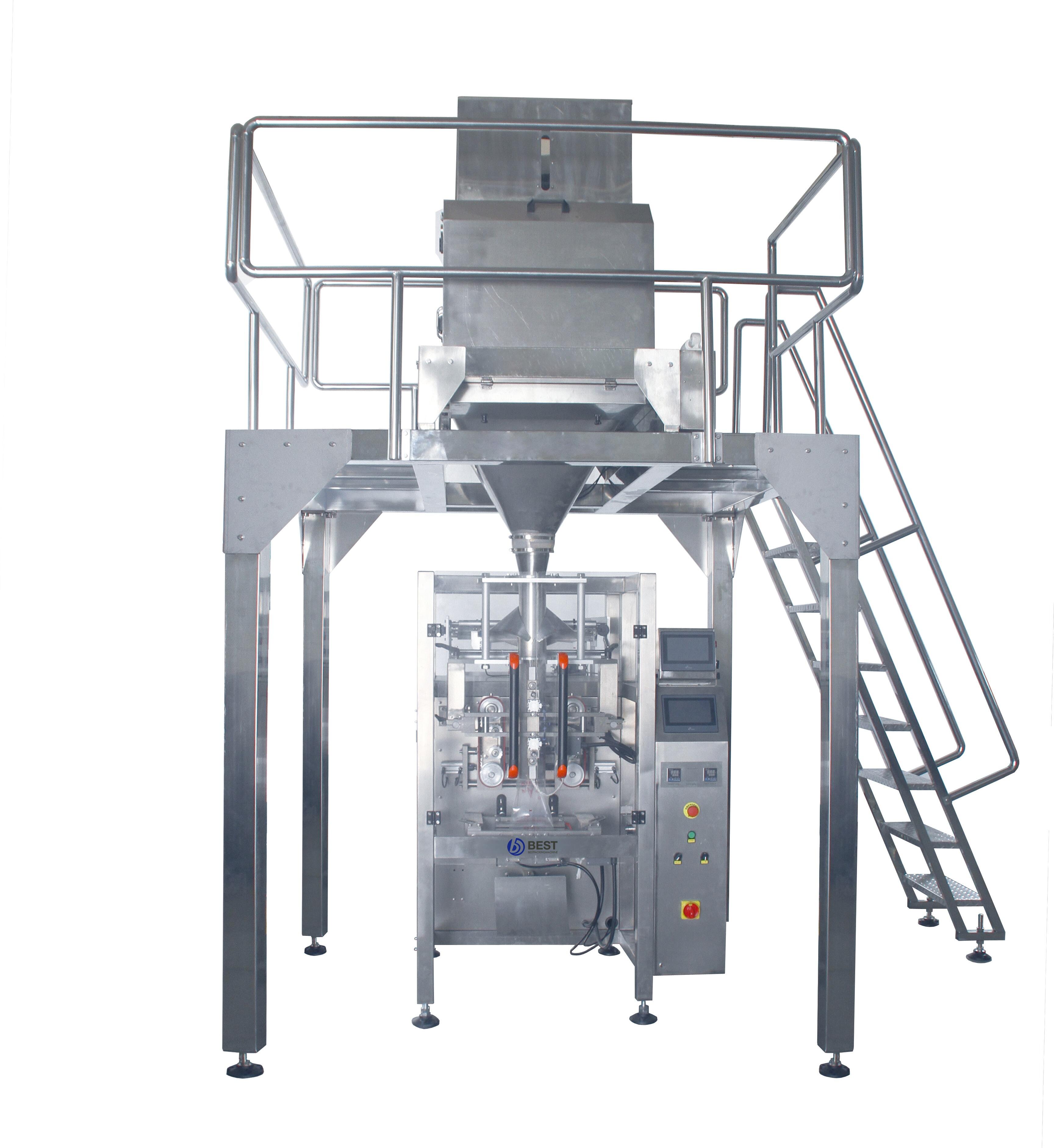

Automatic Small Granule Pouch Packaging Machine
This integrated line combines a high-speed bag former with a 4-Head Multihead Weigher, designed for small granules—MSG, laundry powder, iodized salt, mixed grains—delivering pillow-style, three-seal bags with precise weighing and coding.
Description
Automatic Small Granule Pouch Packaging Machine
This integrated line combines a high-speed bag former with a 4-Head Multihead Weigher, designed for small granules—MSG, laundry powder, iodized salt, mixed grains—delivering pillow-style, three-seal bags with precise weighing and coding.
Key Features：
Integrated Process: Auto bag-making + multi-head weighing
Stable Sealing: Pillow-style, three-seal bags with clean tear
Auto Coding: Color-mark detection, missing-mark alarm, adjustable bag length
Versatile Handling: Bag-chain, multi-fill, carry-handle punch & corner insert
Smart Control: Touchscreen HMI, one-click recipe recall
Packaging Films: POPP/CPP、POPP/VMPP、CPP/PE
Optional Feeding & Weighing Systems：
4-Head Multihead Weigher：For Small Granules(e.g. MSG crystals, detergent powder, iodized salt, mixed grains)
Volumetric Screw Feeder & Dosing System：For powders (e.g. seasonings, MSG powder, milk powder, glucose,laundry powder, fertilizers)
Piston Pump or Screw Pump：For liquids (e.g. detergents, rice wine, soy sauce, rice vinegar, beverages)
Specialized Screw Pump or Rotary Lobe Pump：For sauces & pastes (e.g. ketchup, peanut butter, fruit preserves, chili paste, fermented bean paste)
Technical Parameters：
4-Head Multihead Weigher：
Model |
Range (g) |
Maximum Permissible Error (g) |
Speed (bags/min) |
Power Supply (V/Hz) |
Total Power Consumption (KW) |
Weight (kg) |
BDS-0.25 |
30–250 |
±1 |
40–60 |
220/50 |
1.2 |
250 |
BDS-1 |
100–1000 |
±2 |
30–60 |
220/50 |
1.5 |
300 |
BDS-2 |
200–2000 |
±3 |
15–40 |
220/50 |
1.5 |
300 |
BDS-6 |
500–6000 |
±6 |
15–30 |
220/50 |
1.5 |
350 |
Form–Fill–Seal Machine：
Parameter |
BXS420 |
BXS520 |
BXS720 |
BXS820 |
BXS1000 |
Film Width (mm) |
170–420 |
200–520 |
240–720 |
240–820 |
320–1050 |
Pouch Length (mm) |
100–300 |
100–400 |
100–500 |
100–500 |
150–550 |
Speed (bags/min) |
15–80 |
10–70 |
5–50 |
5–50 |
1–25 |
Power Supply(V/Hz) |
220/50 |
220/50 |
220/50 |
220/50 |
220/50 |
|
Total Power Consumption (kW) |
3.0 |
3.0 |
3.5 |
4.0 |
4.5 |
Air Pressure (MPa) |
0.65 |
0.65 |
0.65 |
0.65 |
0.65 |
Weight (kg) |
450 |
500 |
800 |
800 |
900 |
Dimensions (mm) |
1370×1050×1350 |
1500×1180×1700 |
1800×1360×2000 |
1800×1300×2150 |
2060×1500×2700 |
Process Flow & Principle：
Film Unwinding & Vertical Pouch Forming → Precision Multi-Head Weighing → Automatic Filling & 3-Side Heat Sealing → High-Speed Inkjet Coding & Bag Outfeed
Quality & Certification：
Certifications：CE、UL、ISO 9001
QC Process：
1.Incoming Material Inspection
2.In-Process Quality Audit
3.8-Hour Full-Load Endurance Test
4.Functional Tests:No-Load Test (5 mins)；Load Test (1 hr)
5.Environmental Testing:High-Temperature and High-Humidity Test
Frequently Asked Questions (FAQ):
Q: How to adjust bag length?
A: Enter desired bag length (100–300 mm) on HMI; servo cutter adjusts automatically.
Q: What materials can be handled?
A: Standard for granules; optional screw for powders, piston/rotary pump for liquids & sauces.
Q: Daily maintenance schedule?
A: Clean feeder, weighing pans & cutter after each shift; monthly full inspection & lubrication.
Q: How long to change bag format?
A: Quick-release molds enable bag-format change in 10–15 minutes with fast recipe recall.
Q: What languages does the HMI support?
A: Default English; optional Chinese, Russian, Spanish, etc.
Q: Ease of cleaning?
A: Fully enclosed design, quick-release parts, supports high-pressure wash or air-blow.
After-Sales Service Guarantee：
1-year free warranty; quality-related parts replaced free; wear parts excluded.
Lifetime maintenance: nominal fee after warranty; lifetime spare parts & tech support.
Remote measurement, design & layout support.
Operation manual, remote installation support & video-based training.
3-year free warranty on control boards.
Lifetime spare parts availability with rapid response & technical support.
