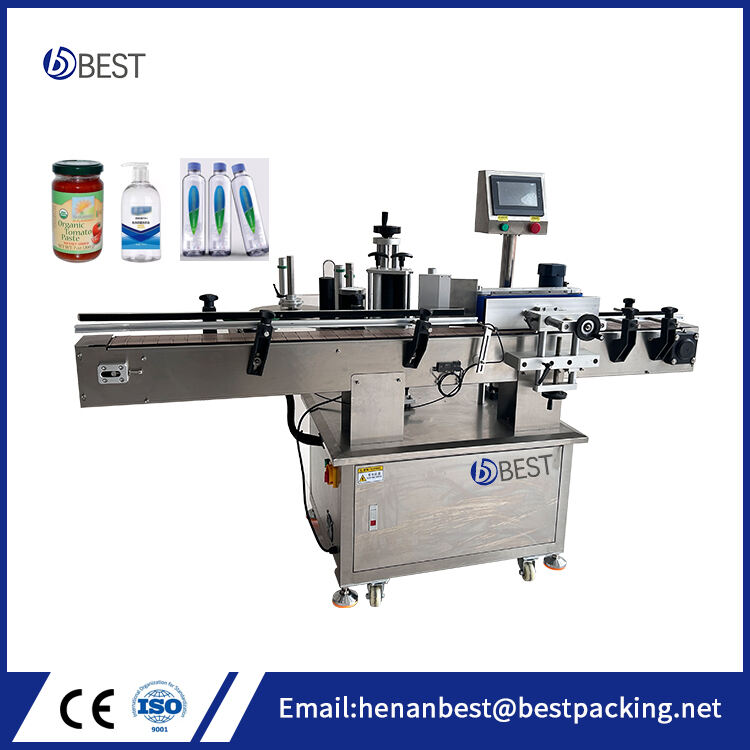

Automatic Vertical Labeling Machine for Round Container
This is a high-efficiency and stable labeling machine designed for round bottles. It supports both full-wrap and half-wrap labeling, widely used in industries such as pharmaceuticals, food, and daily chemicals. Equipped with automatic bottle separation, label alignment correction, and intelligent detection features, the machine delivers precise, wrinkle-free labeling.
Description
Automatic Rolling Round Bottle Labeling Machine
Note：Exclusive Discount for Quote Requests
Limited-time subsidy available exclusively for users submitting a quote on this page. Remaining slots are updated in real time. Contact us to secure your offer. Thank you!
Product Overview:
This is a high-efficiency and stable labeling machine designed for round bottles. It supports both full-wrap and half-wrap labeling, widely used in industries such as pharmaceuticals, food, and daily chemicals. Equipped with automatic bottle separation, label alignment correction, and intelligent detection features, the machine delivers precise, wrinkle-free labeling. It can be seamlessly integrated with existing production lines and can be equipped with coding or inkjet printers for simultaneous labeling and marking, significantly improving packaging efficiency.
| Model | BD-661 |
| Product Diameter | φ25mm–φ100mm (round bottles only) |
| ProductHeight | 25mm–230mm (depends on bottle shape) |
| Label Size | Length: 20mm–285mm；Width: 15mm–160mm |
| Labeling Speed | 30–80pcs/min (depends on bottle/label size) |
| Labeling Accuracy | ±1mm (excluding bottle/label tolerance) |
| Machine Size | Approx. 1950×1120×1340mm (L×W×H) |
| Power Supply | AC220V, 50Hz |
| Machine Weight | Approx.150kg |
Main Components:
Intermediate Relay：CHINT
Side Sensor：SICK / Leuze / Zhongxin(based on configuration)
Object Detection Sensor：Panasonic / Zhongxing
PLC Controller：Panasonic / Delta
Touchscreen HMI：Kunlun Tongtai / Delta
Conveyor Motor：Dongbang Adjustable-Speed Motor (DPG)
Label Drive Motor：Wanyan Stepper Motor
Wanyan Stepper Motor：Dongbang Adjustable-Speed Motor (DPG)
Bottle Separator Motor：Dongbang Adjustable-Speed Motor (DPG)
Optional Custom Modules:
Thermal coding or inkjet printing system (date, batch, barcode)
Automatic bottle unscrambler / feeder
Automatic collection unit
Rotary position labeling (with orientation control)
Custom non-standard functions available on request
Working Principle & Operation:
Principle:
The machine separates bottles via a spacing mechanism. Once a sensor detects the bottle, it signals the control system (PLC) to dispense the label at the correct moment. The label is then applied to the product surface, and a pressure belt rotates the bottle to complete the wrap-around label application.
Operation Steps:
Product loading (or auto feeding) → Conveying → Bottle separation → Detection → Label dispensing → Label wrapping → Collection of labeled bottles
Our company sells complete assembly lines and can customize assembly line products according to your product needs
Frequently Asked Questions (FAQ):
Q:Can this machine apply both full-wrap and half-wrap labels?
A: Yes, it supports both modes. Switching between them is easy and doesn’t require any tool or part changes.
Q:Is it compatible with plastic and glass bottles?
A: Absolutely. It works with PET, plastic, and glass round bottles.
Q:Does it support batch/date/barcode printing?
A: Yes. It can be equipped with hot stamp coder or inkjet printer to print production dates, batch numbers, or barcodes during labeling.
Q:Can this machine be connected to my current production line?
A: Yes. It can run as a standalone machine or be integrated into an existing automated line. Auto feeding and collecting systems are available.
Q:Is the machine easy to operate? Will I need a technician?
A: It's very user-friendly. Operated via touchscreen interface with intuitive settings. Your staff can be trained quickly without technical expertise.
After-Sales Support:
12-Month Warranty：Free replacement for parts with manufacturing defects (excluding consumables)
Lifetime Support：Permanent spare part supply and remote technical assistance
Fast Response: User manual, tutorial videos, and real-time guidance for quick setup and troubleshooting
