C02 Portable Precision Metal Plastic Fibre Laser Marking Printing Machine
Automated Operation Flying CO2 Laser Marking Machine for Leather Wood or Plastic
Description
C02 lasermachine adoptsintegrated design, with high-speed scanning galvanometer, 360-degree rotation turn the neck,double red light positioning,fixed focus, high power laser, imported materials, up and down adjustment with a stroke of 1500mm and a patented design,it is suitable for various workshop environments and is easy to install.The laser machine has stable performance,fast speed, low power consumption, small size, and applicable scope is wide.

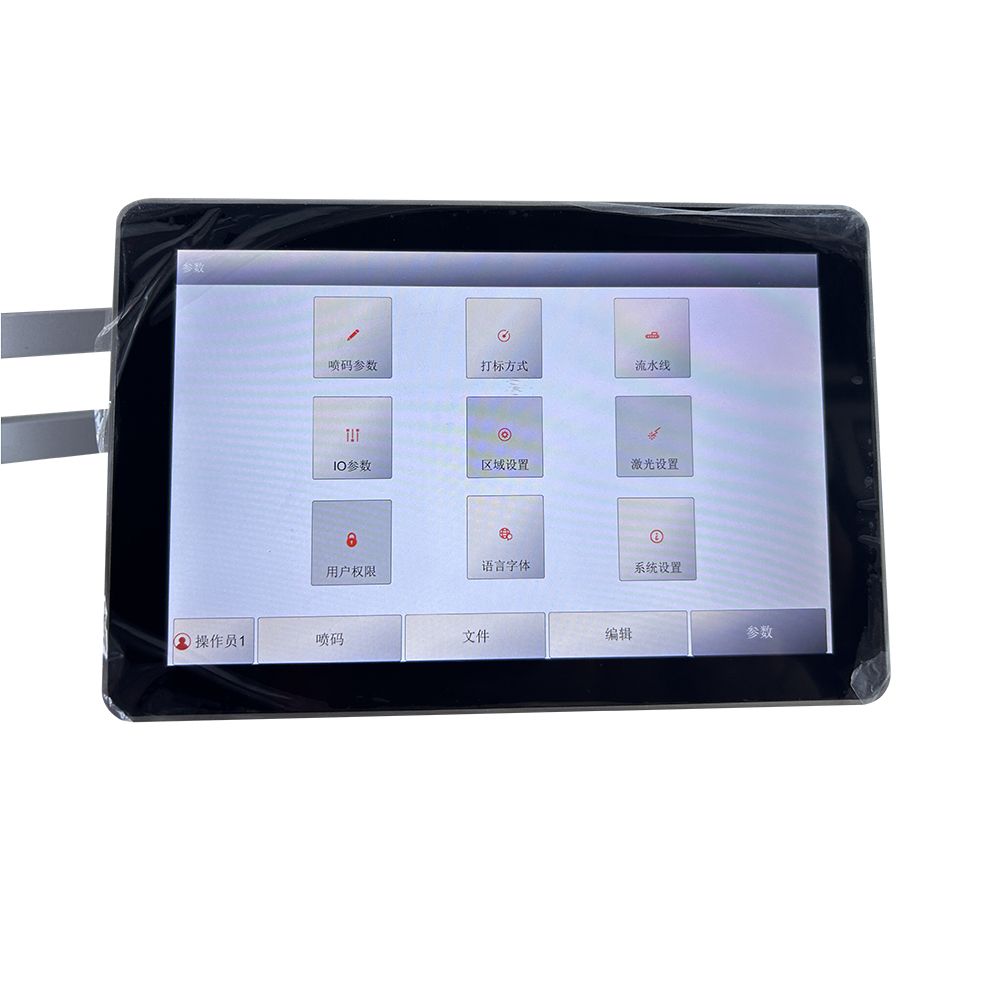

10.1-inch HD touch screen
Graphical operation interface
Special customized control screen
High sensitivity faster response speed graphical
operation interface features clearly marked easy to operate

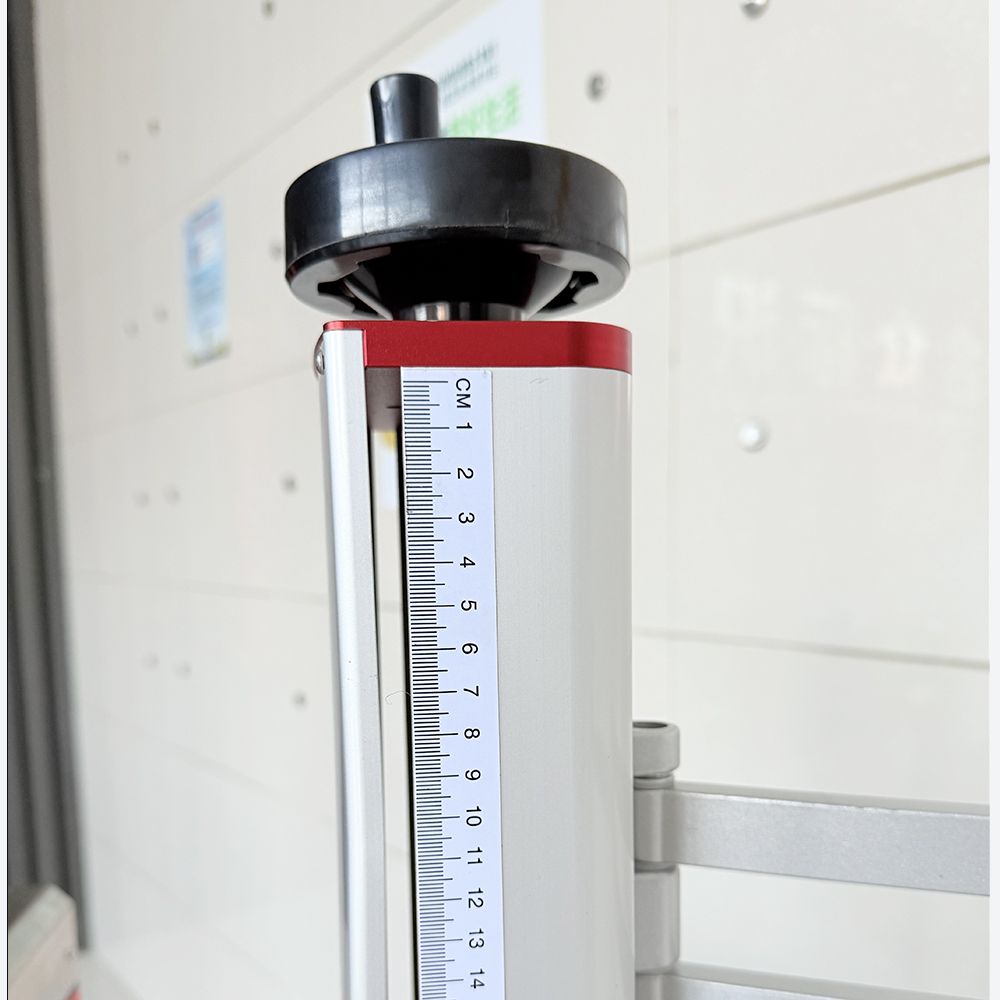

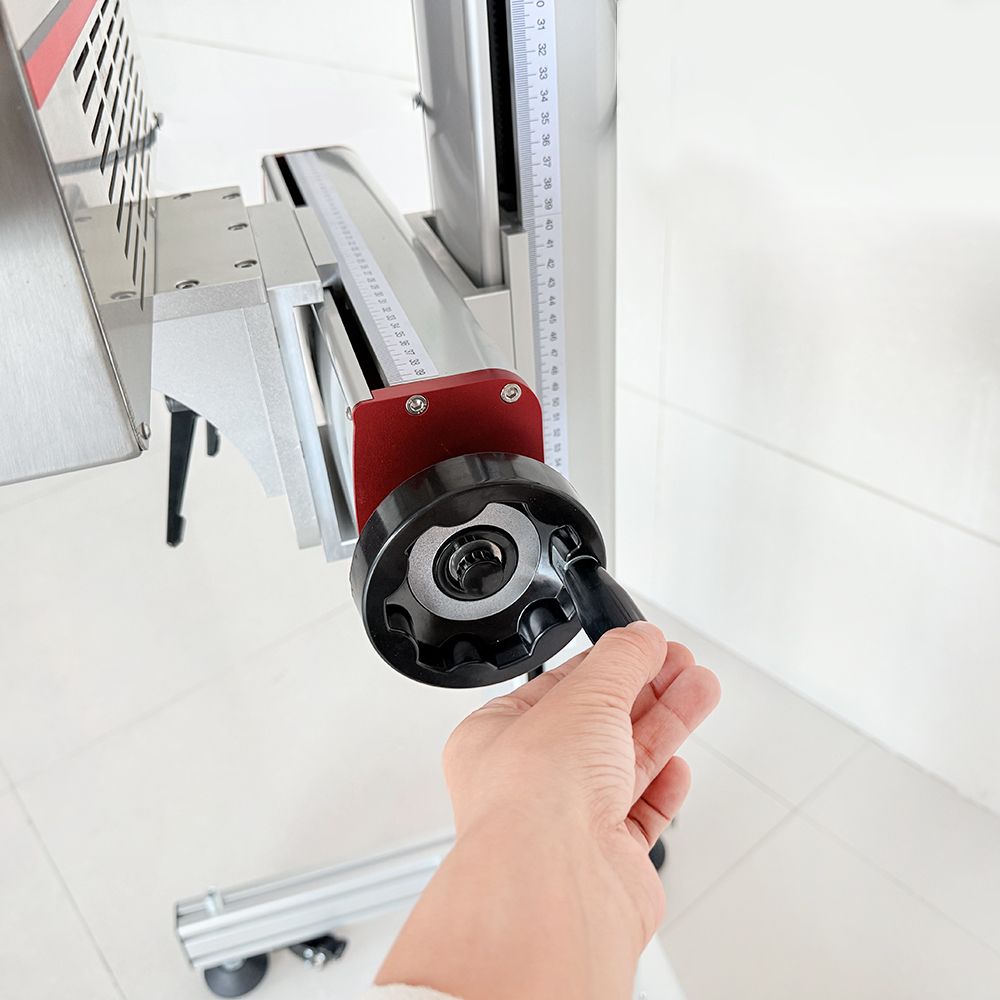

Adjustable bracket
XY axis bidirectional adjustment
High quality field lens
Small size, laser penetration reaches over90%,suitableforharsh environments and the focused spot is more fine and uniform.High transmitance, strong transparency, high definition, clear focus. good markin
Relable and durable CO2 laser soure
Laser type |
CO2 Laser |
Laser wavelength |
10.6μm |
Laser power |
30W,60W,100W |
Average power stability |
±5% |
Marking accuracy |
≤3-5μm |
operating system |
Embedded Touch Controller |
cooling method |
Air cooling/Water cooling |
Total power |
600W |
electricity demand |
110V/220V,50-60Hz |
Machine material |
All-aluminum structure |
Host weight |
23-45KG |
Applicable industry |
Food, beverages, cosmetics, daily necessities, toys, etc |
Marking material |
Metal as steel, aluminum, copper, gold,silver, alloysome plastic as pvc, pe, ppr, abs, etc |
Marking Content |
Text / QR code/ barcode/ pattern/ date and time/ logo/photo ect |
Application |
PIPE: pvc/pe/hdpe/ppr/abs/mpp plastic pipe; metal tubeWire & Cable: plastic wire, metal cable Irrigation belt, fire water conveyance belt, etc package coding: food plastic bag, drink bottle cap, beer can, tin can, etc otehr: mobile phone charger, metal parts, plastic part, ext. |

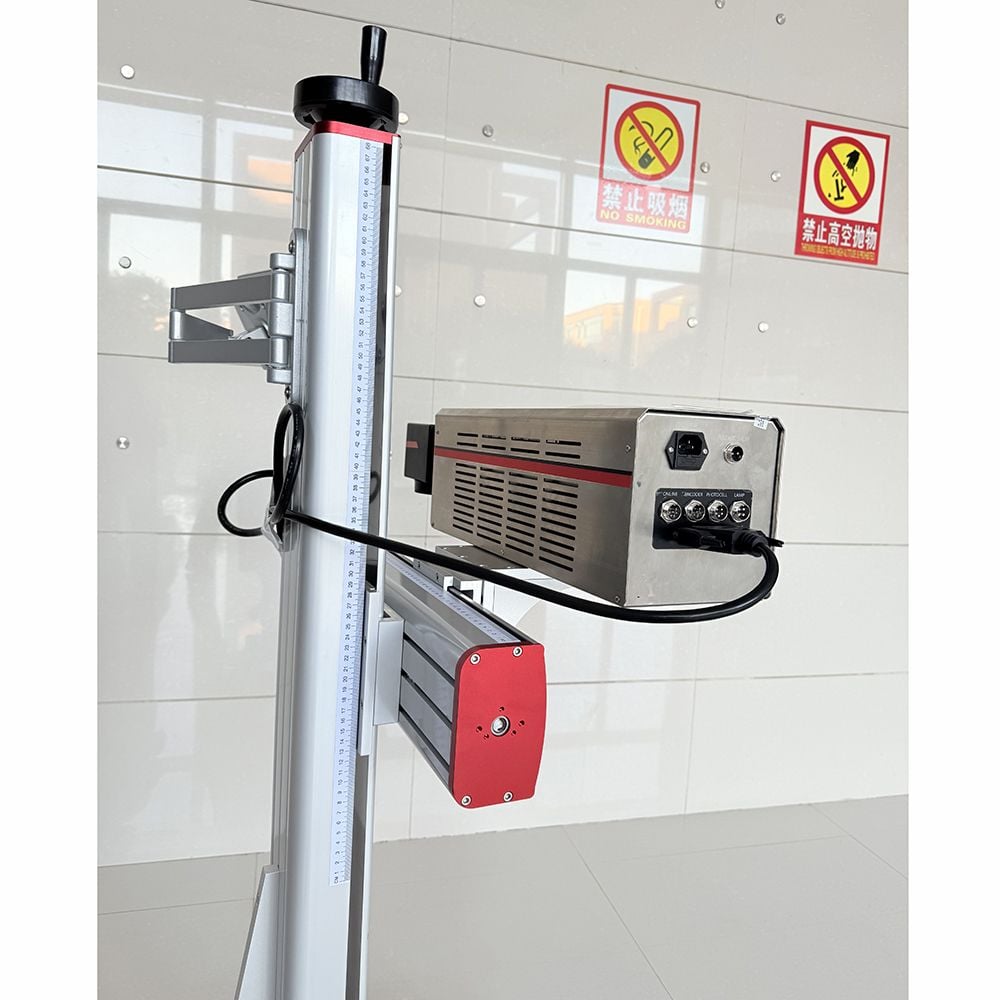

COMPACT DESIGN AND FLEXIBLE CONFIGURATION
This model uses compact laser printer marking head to achieve simple integration to reduce installation costs and improve positioning flexibility.
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
