Continues Inkjet Printers 9018 Markem Imaje Small Character Printing Machine for Bottle Expiry Date Printer
Continuous inkjet coder Markem-Imaje 9410 printers respond to most industrial needs, from black marking or color semi-pigmented solutions to inks for direct food contact.
Description

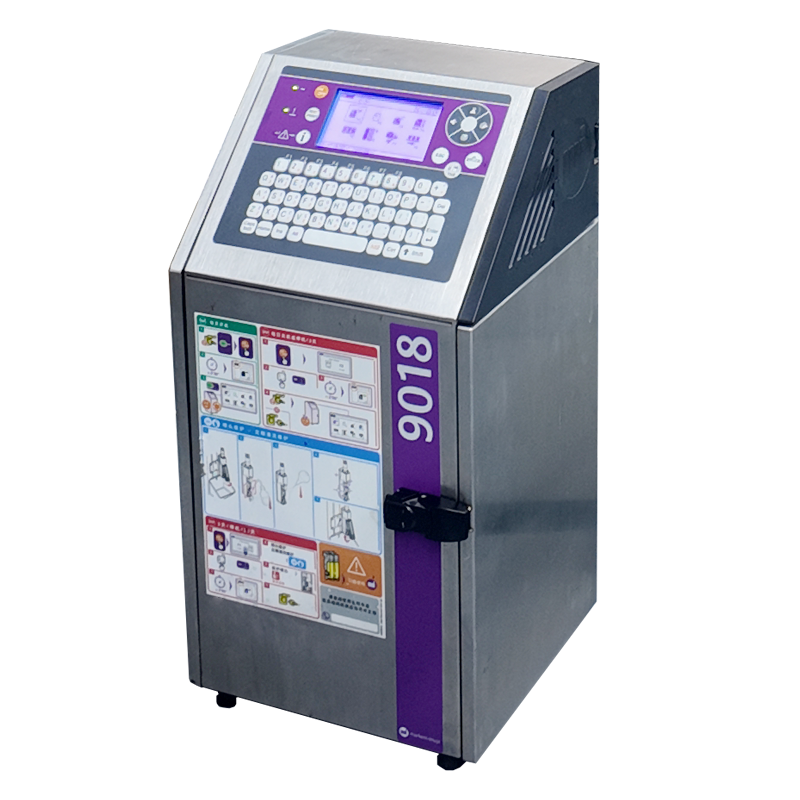

Markem Imaje 9018 Small Character Inkjet Coder
Message library (up to 100 messages)
International operator/machine interface (choice of 31languages)
Large wysiwyg backlit blue screen
Integrated online guidance for navigation and diagnostics
Creation of logos directly on the operator/machine interface
USB port
M6' ink circuit
Jet Speed Control guarantees marking quality
Automatic selection of fonts, depending on print speed and printhead/object distance
Possibility to choose different types of quick-drying black inks,including MEK-free
2 sealed intelligent cartridges, 0.75 litre each
Quick connect/disconnect of accessories (photocell, encoder, alarm)
Model |
9018 |
Jet printing line number |
1-5 (5 × 5 Lattice) |
Chinese character |
16 × 16 Jian Song , Fan Song, Jane Black, SR-kai |
Printing dot matrix |
numbers and letters: 6×6, 6×8, 8×10, 8×12,8×16,12×24 Chinese characters: 12×12,16×16, 24×24 Custom: any within 32 |
Printing word height |
1-20mm |
Printing information storage |
1000 |
Jet printing speed |
1,400 characters / sec (5 × 7) |
Operation Interface |
Chinese and English |
Chinese support |
Built-in -GB, 1, 2 Chinese character |
Chinese Input |
Pinyin input method, area code input method |
Printing content |
in both English and Chinese characters and numbers, variable date and time, batch number, Order of numbers , and computer connections can be jet printing random code |
Jet printing materials |
metal, plastic, glass, wood, pipes, wire and cable, etc |
Font widening |
maximum widening to 9 times |
Jet printing distance |
head to the surface the largest 30mm |
Sprinkler pipes |
3M |
Communication Interface |
USB and RS232 interfaces |
Ink color type |
black, blue, red etc |
Ink consumption |
60 million jet printing characters / liter (5 X7) |
Temperature range |
5-45 ºC |
Humidity: |
<90% |
Weight |
28Kg |
Dimensions |
360 × 270 × 500mm |
Power requirements |
AC220V 50HZ 150VA/AC 110V 60HZ 100VA |
ADVANTAGE
Visual operation panel
Operating system panel configuration
Large scale display
Key on/off, information editing
Interface, easy to operate and learn
360 ° rotatable nozzle
Accurate nozzle printing
various types of text
One click layout setting
Can be paired with The assembly line improves operations,
saves time,Effort and cost saving
Casting single nozzle nozzle nozzle
Equipped with heating function,
It can automatically heat up when the weather is cold,
The printing effect is not affected
Stainless steel body
The body is made of stainless steel material,
Durable and resistant to rusting
Stable product performance
Can save you time and consumables usage,
Ensure that the machine runs for a long time
Printhead
* 4-line printing
* RS-232 connectivity
* Printhead pressurization kit (plant air required)
* Encoder and alarm connectivity
* 3-meter umbilical
Accessories
* Printer supports: stands (stainless steel or aluminum), table or wall mounting bracket
* Stainless steel printhead cover
* Photocell
* Encoder
* Alarm beacon (24 V)
* Conveyor stop outpu
