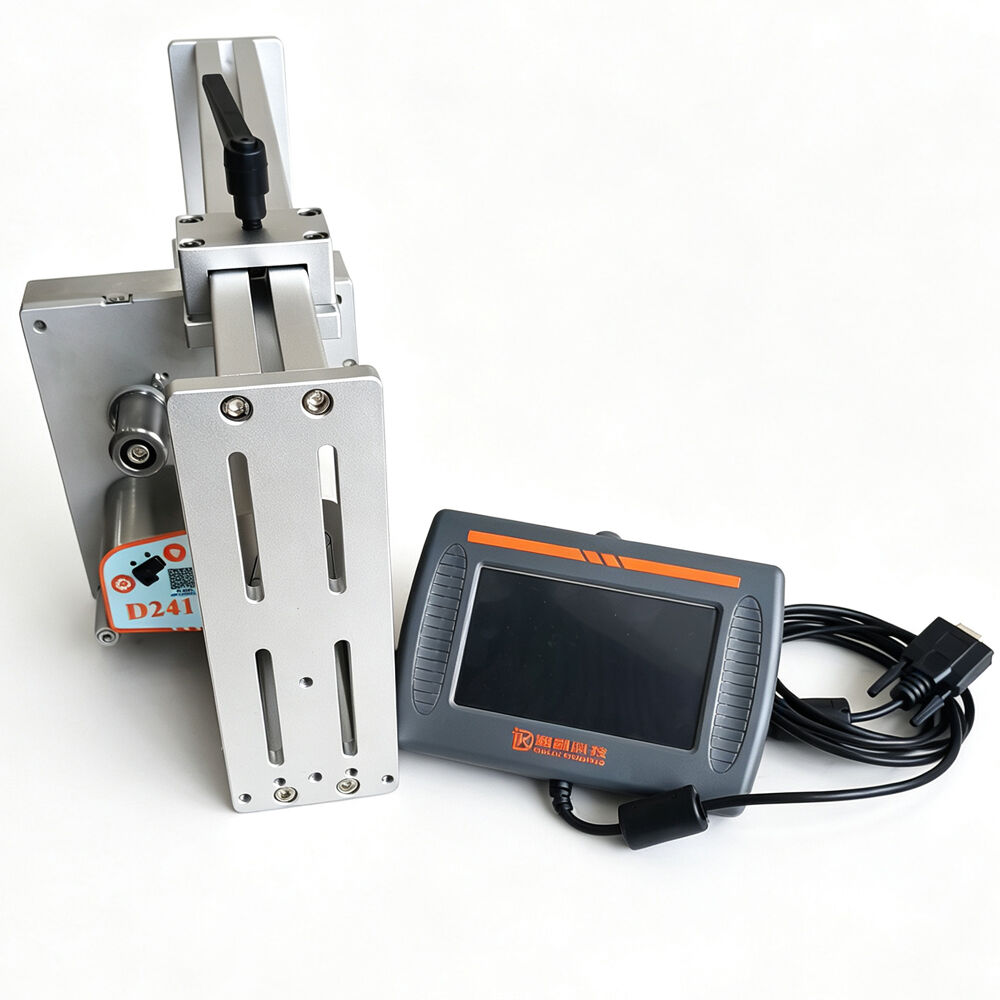

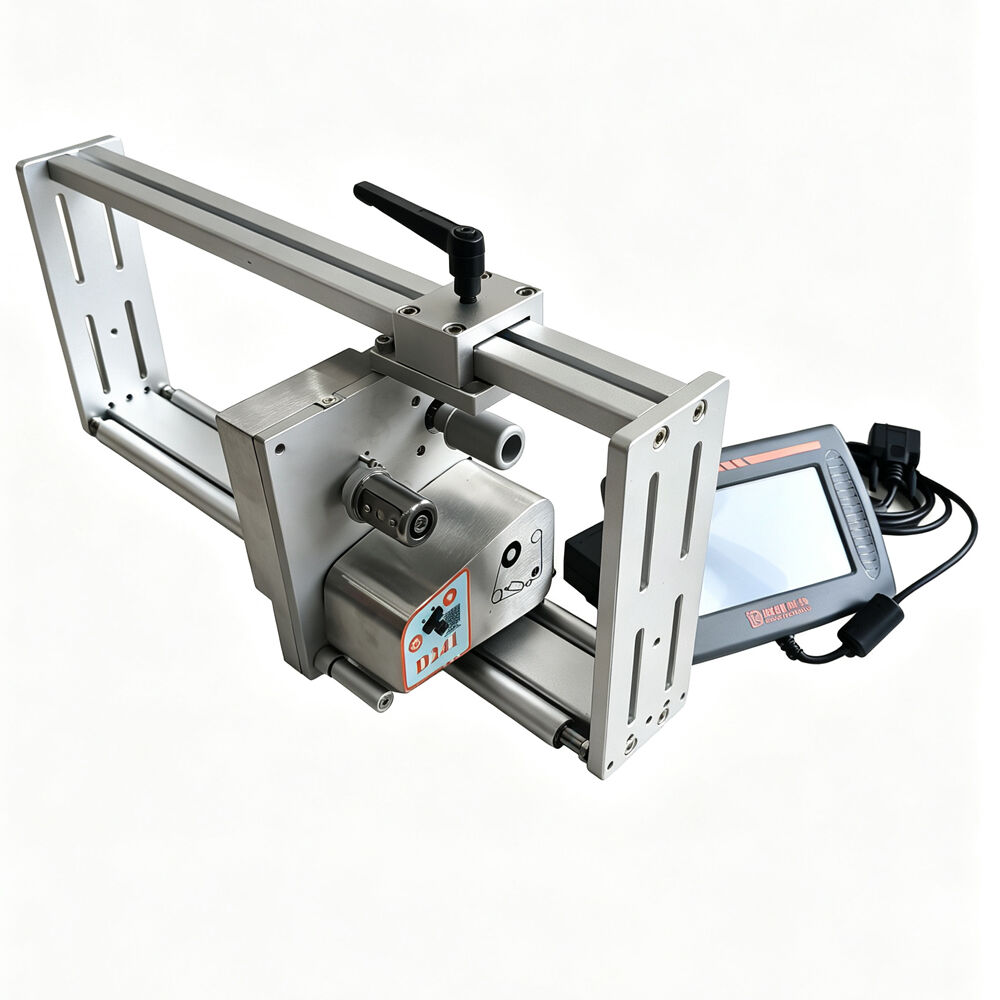

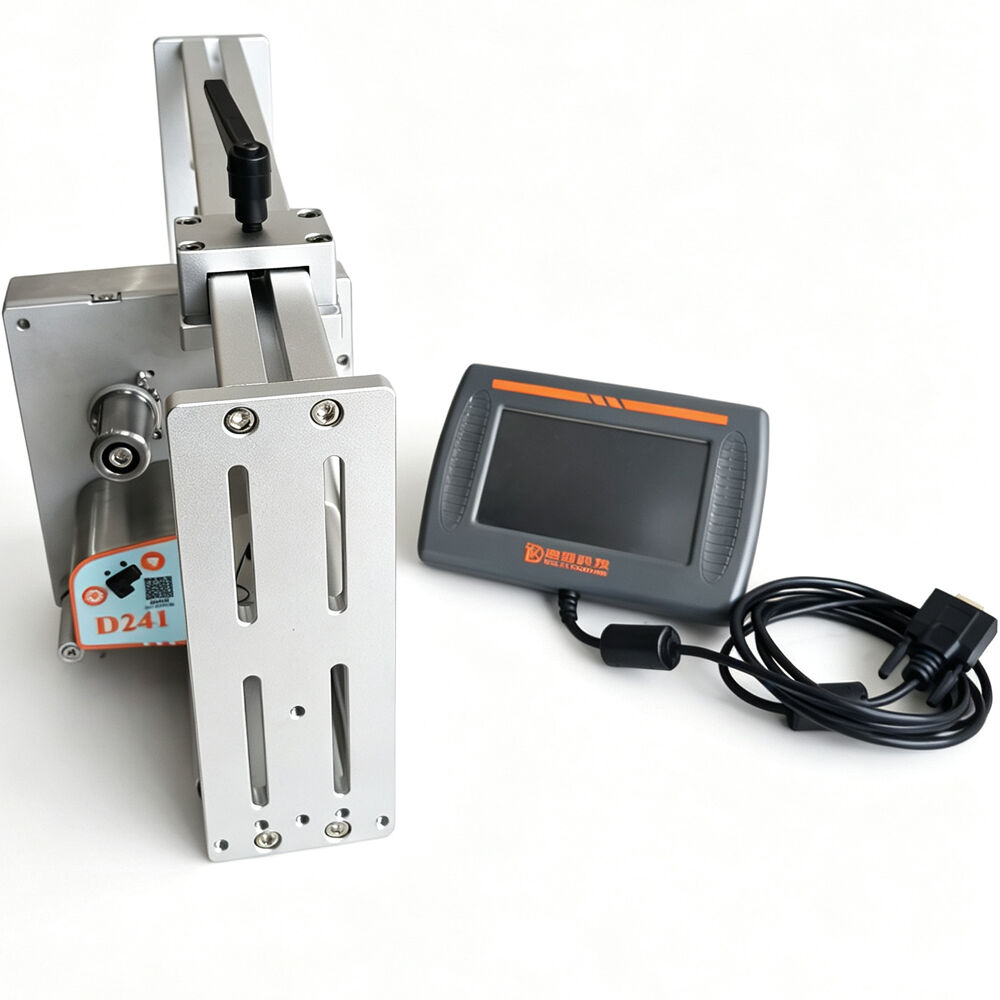

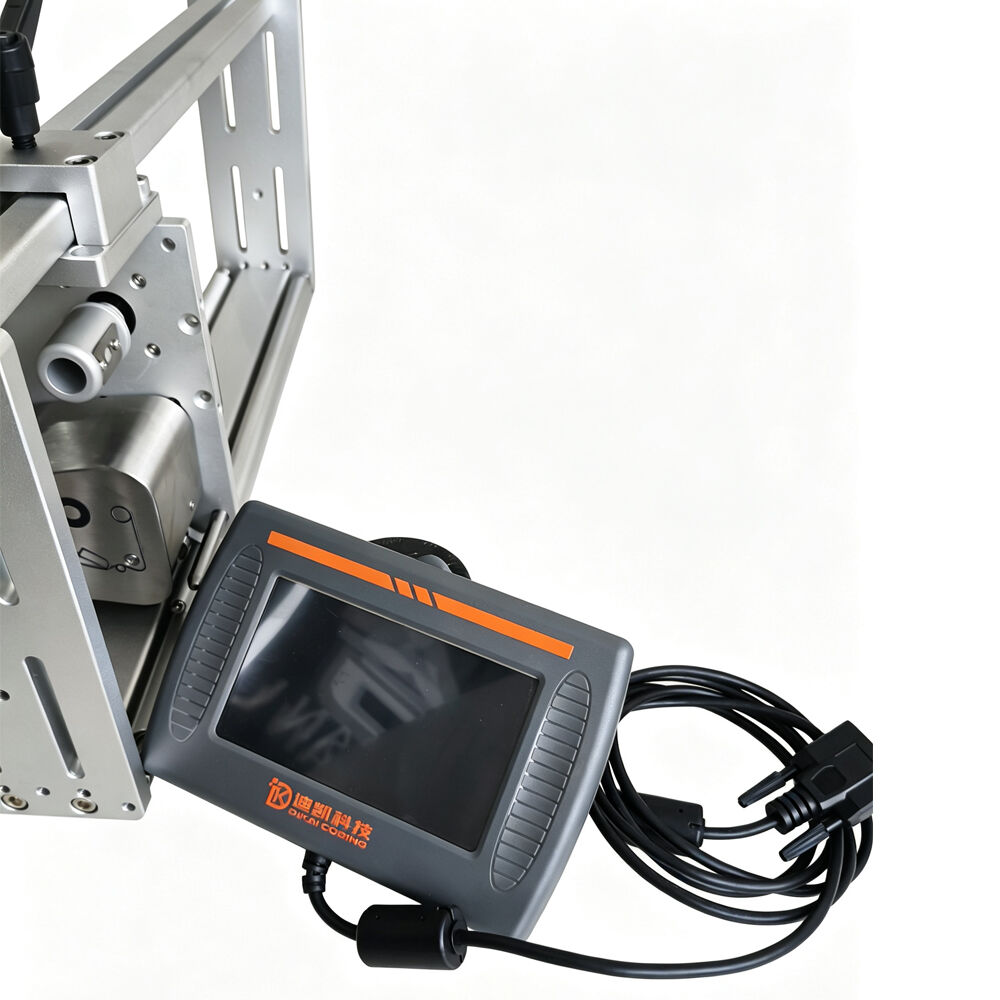

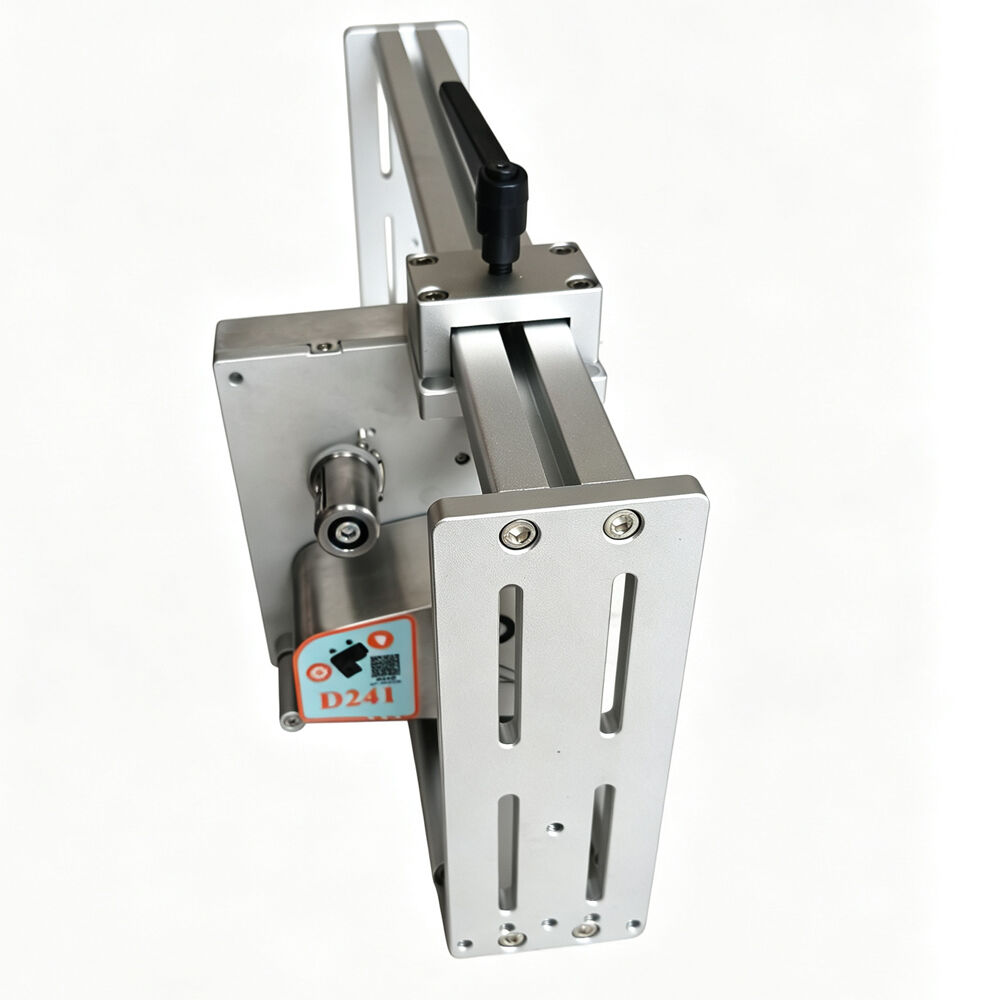

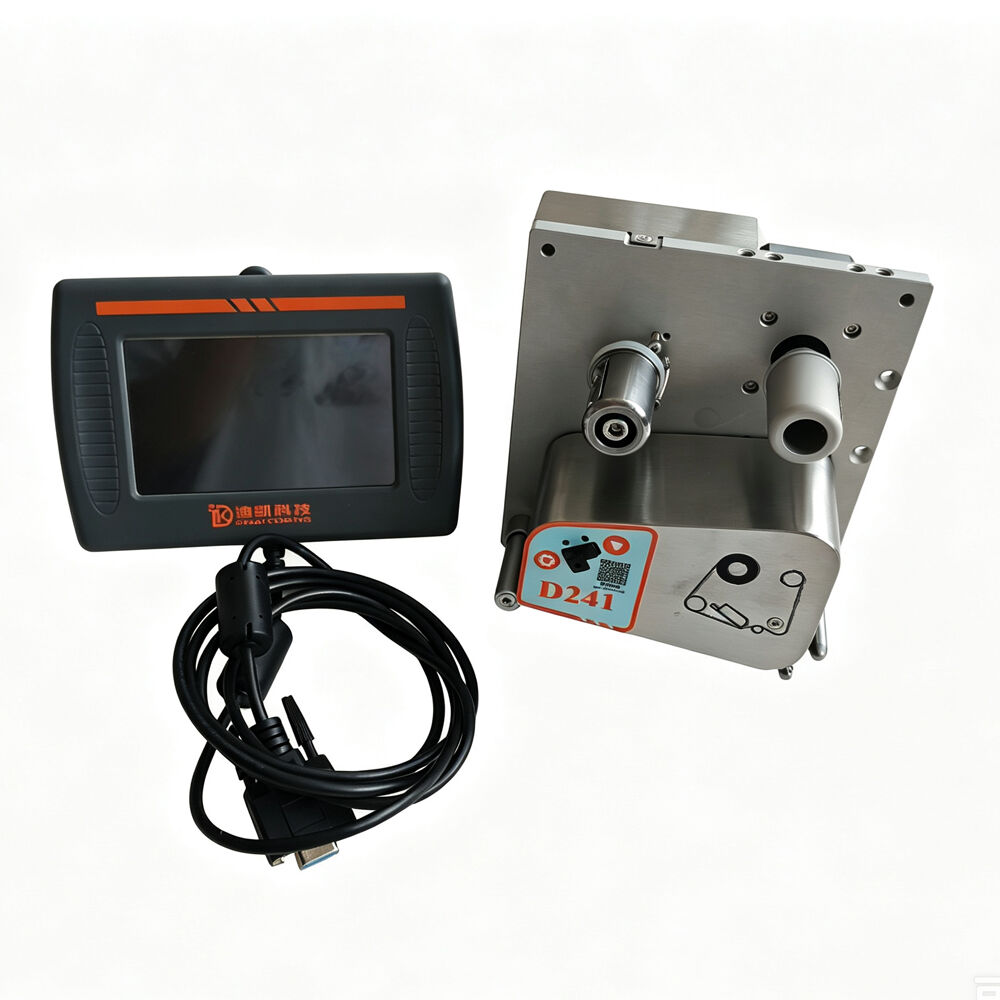

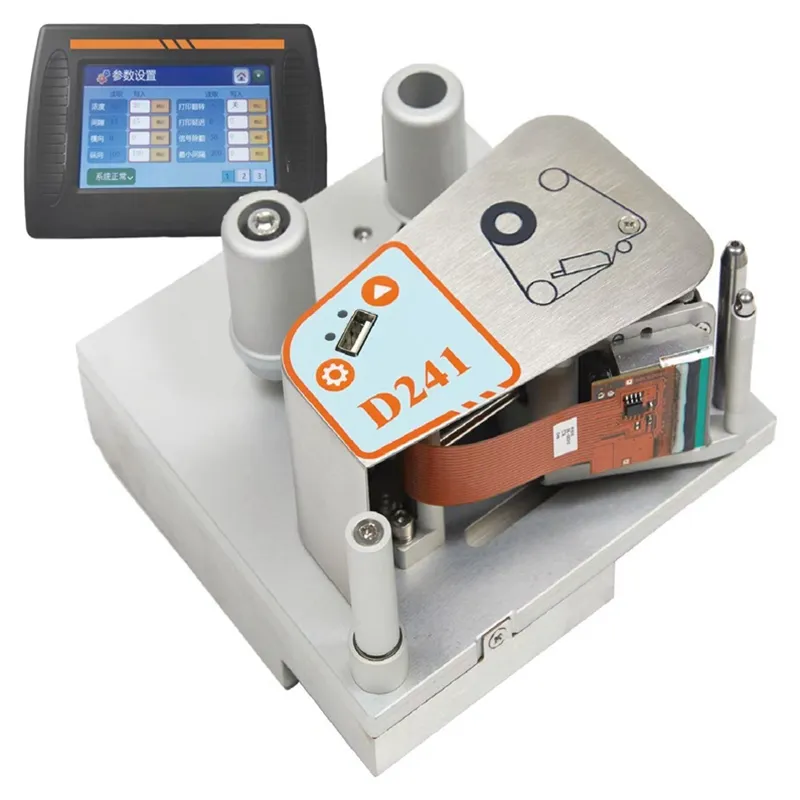

Dikai D241 Compact Intermittent Tto Coding Machine
DIKAI D241 Intermittent Thermal Transfer Overprinter, equipped with 24mm 200DPI printhead with max 24*15mm printing area, up to 200 printing cycles per minute. It supports real-time date, batch counter, logos and multi-line editable texts, stores 9 print templates for one-click switch. Adopt 350m long thermal ribbon to reduce machine downtime, adjustable ribbon gap as low as 0.5mm to cut ribbon cost. Hot-pluggable touch screen allows one controller to operate multiple printers, equipped with USB & RS485 ports to match vertical packing machines, pouch machines and labeling lines. Compact lightweight design, no preheating required for instant printing, clear coding with excellent abrasion, freeze and boiling resistance, dust-free eco-friendly marking solution for food, cosmetic and pharmaceutical flexible films, ideal replacement of traditional hot stamp coders.
Description
Basic Info.
Model NO.
D241
Usage
Daily Industrial, Chemical Products, Drug, Food, Date Batch Number Qr Code Logo Picture
Automatic Grade
Automatic
Principle of Classification
Thermal Transfer Overprinter
Application of Classification
Thermal Transfer Printing Machine
Working Patterns
On-Line
Supplies
Ink Ribbon
Packaging
Box
Printhead
24mm
Print Area
24mm*12mm
Speed
20mm/S-200mm/S
Resolution
203dpi (8 Dots/mm)
Application
Food, Beverages, Pharmaceuticals, Chemicals

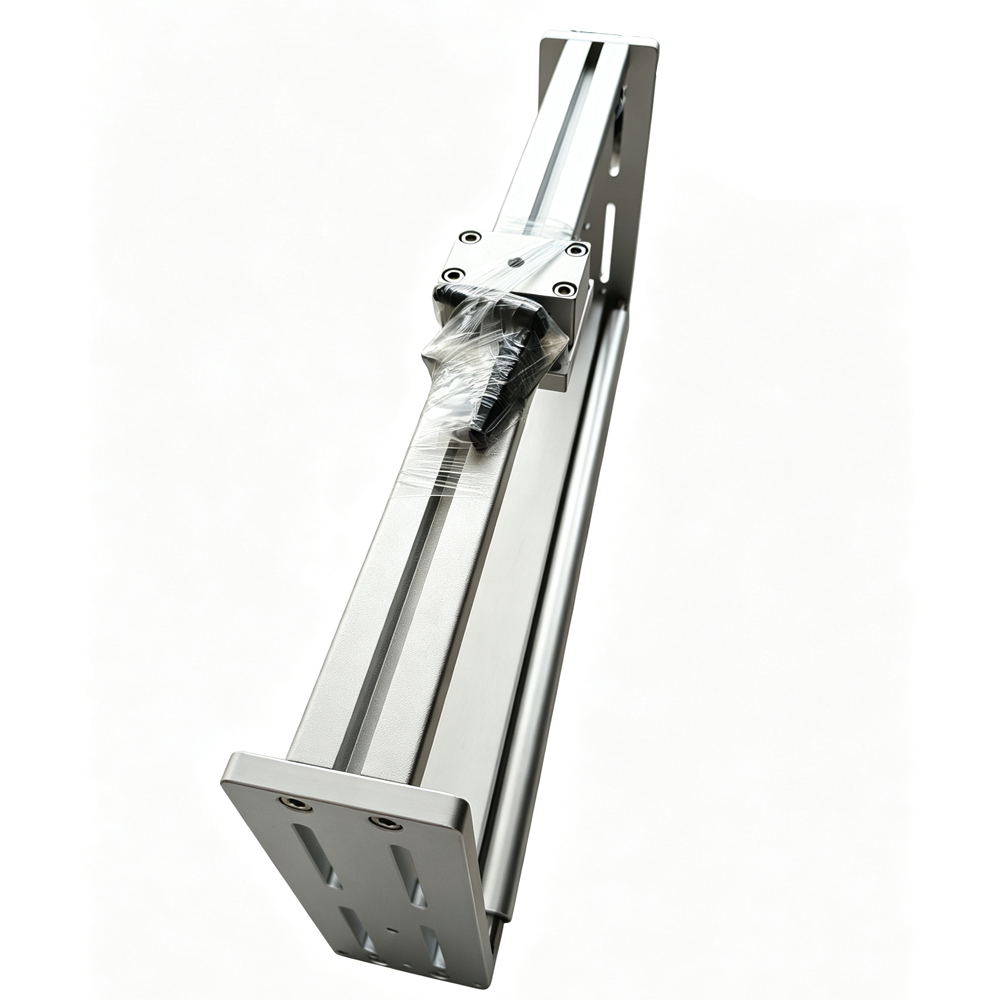

Bracket Length
Customizable
Transport Package
Box
Specification
56cm*24cm*25cm
Trademark
UNIONCODING
Origin
China
HS Code
8443399000
Production Capacity
1000
Packaging & Delivery
Package Size
56.00cm * 24.00cm * 25.00cm
Package Gross Weight
10.000kg
Product Description
D241 is an enhanced smart TTO product designed for the leapfrogupgrade of traditional TTO. In addition to use it to easily complete the printing of production date, shelf life, series number, batch number,time (accurate to seconds), etc., you can also print any 1D code, 2Dcode, product traceability code, logo, graphics and other content as needed.
Specification
Printing head |
24mm,200dpi; |
Print area |
Intermittent mode is 24mm×15mm (width x length); |
Maximum length of ribbon |
350 meters; |
Ribbon width |
25mm; |
Print speed |
≤ 20m/min; |
Printing frequency |
≤200 times/min (intermittent); |
Specific function |
Time information, date information, counter, fixed text, variable text; |
Communication interface |
Usb interface |
Power Supply |
AC90-264 V,3A,50/60Hz; |
Power |
75W; |
Operating ambient temperature |
0 ~ 40℃ |
Relative humidity |
10% ~ 95% (non-condensing); |
Weight |
2.1kg print body, 0.48kg; control box; |
Outline dimension |
The printed volume is 158mm×146mm (length× width× height); The control box is 173mm×140mm×83mm (length× width× height); |
D241' s distinctive innovative structure an d working principle have applied for man y in vention patents. D241 has a small structure, simple installation and use, simple maintenance and faster printing speed. Use 200dpi high- resolution print head to present clearer and more beautiful coding effect. At present, there is only one model for customers to choose, which can directly replace other flexible packaging coding equipment.
D241 The batch code, time and date and other variable information can be printed directly on the outer packaging, film and other materials, and the variable information can be changed through the user interface.
Operating principles
The installation work must be completed b y t rained s taff. I f the customer installs b y himself, he must obtain authorization. P lease observe a l l relevant safety operation procedures, otherwise the guarantee rights may be lost.
1, It is recommended that the main power sock e t be installed within 3.0 meters of the coding machine for easy operation;
2 , Always remember to disconnect the power supply of the equipment and unplug it from the main power supply before maintenance;
3 , When supplying power to the printer, don' t p ut other parts into the contact between the print head and the printing pad or rubber roller, because the equipment may suddenly rotate without prior warning, which may lead to the danger of bumping;
4 , Do not operate the equipment without opening any cover plates. When using, a ll cover plates must be screwed in place with a corresponding number of screws, and a l l unused joints must be properly protected;
5 , Ensure that all reasonable safety precautions have been taken, and be careful when using or working near the equipment to avoid possible injuries. Always treat the equipment with care to ensure that it does not rotate, shift or tip over, especially when operating the equipment in an environment with wet floors or greasy dirt;
6 , If you are not using consumables, it is recommended to consider using antistatic products. cannot ensure the safety or applicability of printing with non- consumables;
7 , Beware of the accidental failure of the circuit started b y accident, or the error signal driving the encoder, so as to avoid personal injury;
8 , Do not use a separate device handle to carry the printed body, and be sure to hold the printed body with both hands;
9 , Fo r safety reasons, there is a danger warning label on the back of the control box of the coding machine ( see description in 1.3). P lease do not omit it o r tear it off;
10 , Before powering on, please check the actual voltage input value, which must be consistent with the equipment, otherwise it will cause equipment damage or electrical failure endangering personal safety;
11 , The power socket is in danger of electric shock, so a qualified e lectrician must perform comprehensive e lectrical installation and inspection.
