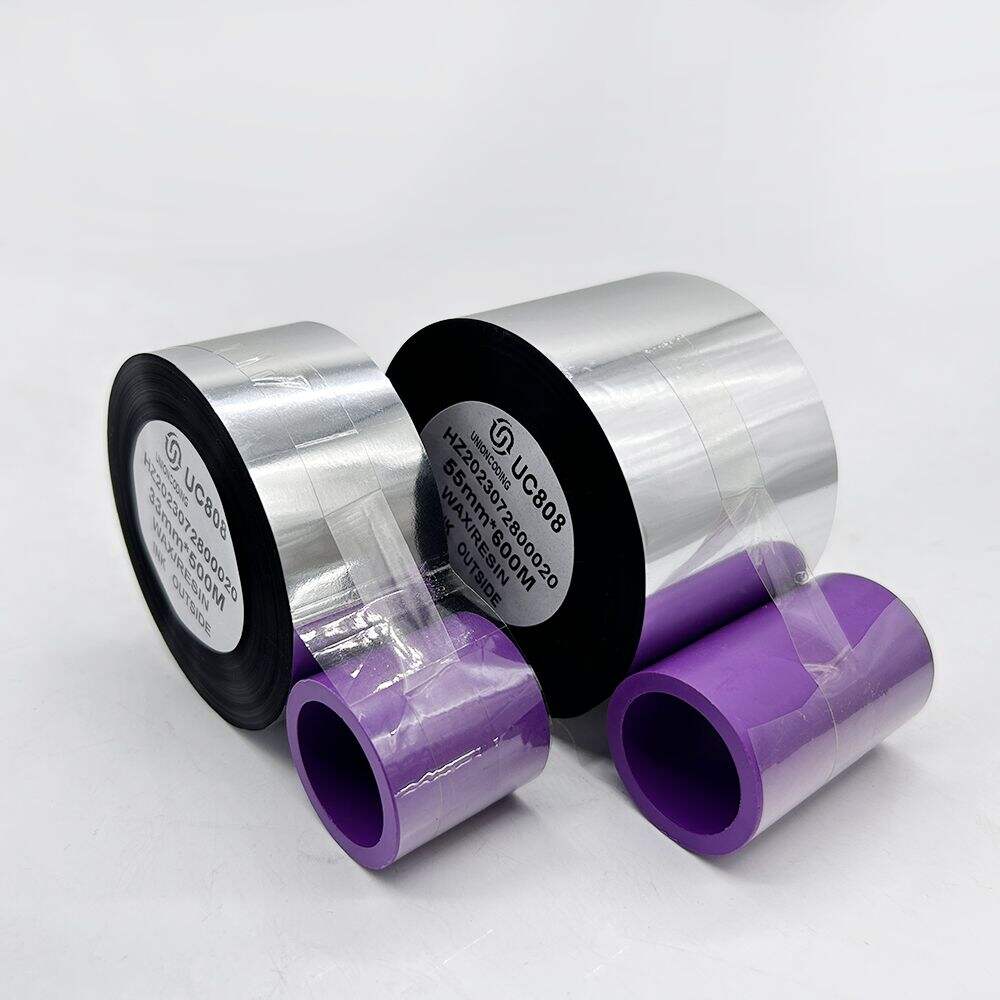

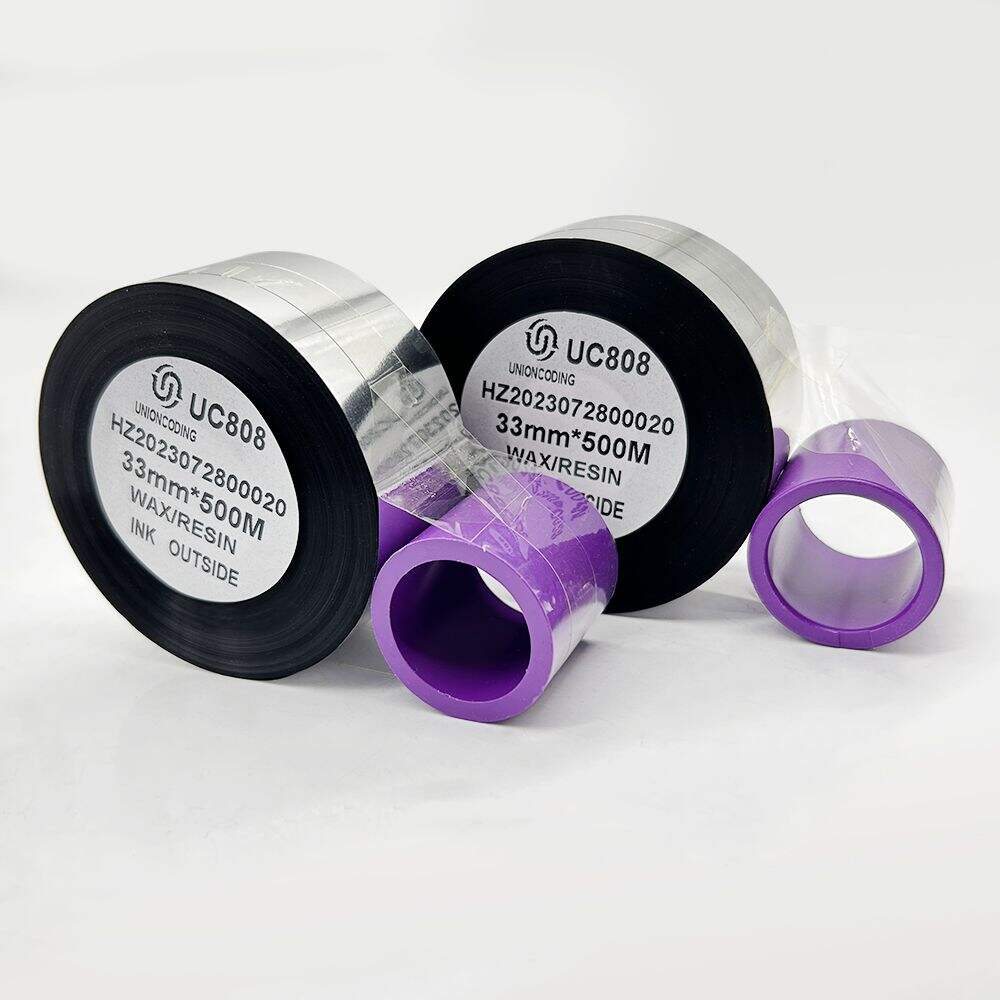

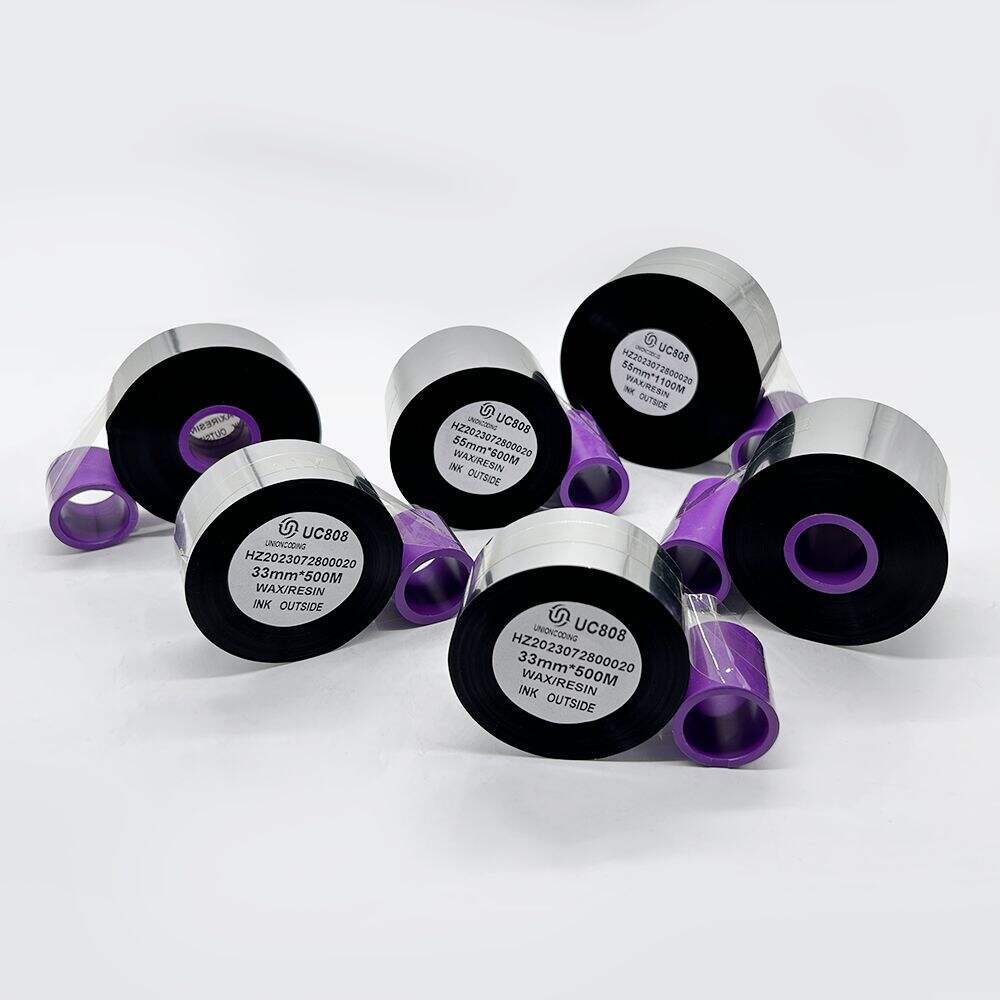

Eco-Friendly TTO Thermal Ribbon - Long Runtime
Thermal Transfer Ribbon (TTR) transfers ink from coated ribbon to substrate via a heated printhead, producing durable, high-contrast text, barcodes, and 2D codes. Available in three formulations—Wax, Wax-Resin, and Resin—TTR meets diverse requirements for print quality, abrasion resistance, and chemical/heat tolerance.
Description
TTO Ribbon
Product Overview:
Thermal Transfer Ribbon (TTR) transfers ink from coated ribbon to substrate via a heated printhead, producing durable, high-contrast text, barcodes, and 2D codes. Available in three formulations—Wax, Wax-Resin, and Resin—TTR meets diverse requirements for print quality, abrasion resistance, and chemical/heat tolerance.
Key Features：
● Formulation Options：
Wax: Economy-grade, general-purpose, best price/performance.
Wax-Resin: Balanced durability and print quality; good smudge resistance.
Resin: Highest abrasion, chemical, and heat resistance for harsh environments.
● Wide Compatibility：
Works with both flat-head and near-edge thermal-transfer printers (Zebra, Sato, Datamax, etc.).
● Extended Ribbon Runs：
Lengths from 450m to 1100m minimize changeovers and downtime.
● High Print Speeds：
Supports up to 14 ips (≈350mm/s) in suitable printer models.
● Smudge & Scratch Resistance：
Wax-Resin and Resin ribbons resist abrasion for scannable barcodes.
● Temperature Tolerance：
Resin ribbons endure up to 225°C; suitable for high-temp heat-shrink and sterilization processes.
● Environmental & Cost Efficiency：
Halogen-free options and low-emission inks support sustainability goals.
Applications：
Retail & Logistics: Shelf labels, shipping cartons, pallet tags
Healthcare & Pharma: Medical device labels, specimen pouches
Food & Beverage: Flexible pouches, frozen food cartons
Industrial: Chemical drum labels, electronics part tagging
Optional Modules:
Wide-Format Ribbons：128 mm, 177 mm, 228 mm widths for large-format label printers.
Specialty Formulations：Wax-resin for enhanced adhesion on low-surface-energy substrates.
Cleaning Cards：Lift-and-clean cards to remove debris and extend printhead life.
Polyester Backup：Reinforced backing for high-tension, near-edge printers.
Technical Specifications：
Installation & Operation：
1. Ribbon Loading：
– Remove protective sleeve and thread ribbon per printer guide.
- Tension Adjustment：
– Set nip tension and ribbon saver mode for minimal waste. - Printhead Calibration：
– Align ribbon to substrate; perform test print to verify clarity. - Continuous Coding：
– Monitor ribbon usage; replace rolls at 50% wear indicator to avoid ribbon wrinkles.
Quality & Certification：
Certifications：
REACH & RoHS Compliant – No restricted substances
UL Certified – Ink safety for food packaging applications
ISO 9001:2015 – Manufactured under certified quality management
QC Process：
- Incoming Material Inspection – Verify ribbon film thickness, coating uniformity, and core integrity.
- In-Process Testing – Sample prints for adhesion, smudge resistance, and print density.
- Full-Run Validation – Run full ribbon length in representative printer models to confirm consistent performance.
- Final Inspection – Review splice integrity, packaging accuracy, and issue QA certificate.
Frequently Asked Questions (FAQ):
Q: How do I choose between Wax, Wax-Resin, and Resin?
A: Wax for cost-sensitive, short-lived labels; Wax-Resin for moderate durability; Resin for harsh, high-temp/chemical applications.
Q: Which printers are compatible?
A: Works with most flat-head (Zebra, Sato, Datamax) and near-edge (Markem-Imaje, Videojet TTO) printers.
Q: What ribbon length should I select?
A: Longer ribbons (700m–1100m) reduce changeovers—choose based on print volume and printer capacity.
Q: In or Out coating?
A: • Coated-Side Out (CSO) for Zebra, Datamax, Printronix
• Coated-Side In (CSI) for Sato, Intermec
