Egg Shrink Wrapping Machine Auto Sealing Cutting Heat Shrink Wrap Packing Automatic Shrink Wrapping Tunnel Machine
Description
Model |
B450 |
B500 |
Maximum package size |
(L+H)≤500mm (W+H)≤430mm (H)≤150mm |
(L)700x(W)400x(H)200mm |
Maximum seal size |
(L)550x(W)450mm |
(L)1000x(W)450x(H)250mm |
Power and total power |
220V/50HZ 1.3kw |
380V/50HZ 12kw |
Packing speed |
20~35 pasks/min |
0~15m/min |
Use air soure |
5.5kg/cm³ |
/ |
Machine dimensions |
(L)1800x(W)800x(H)1600mm |
(L)1300x(W)700x(H)1400mm |
Machine weight |
440kg |
240kg |
Details Images

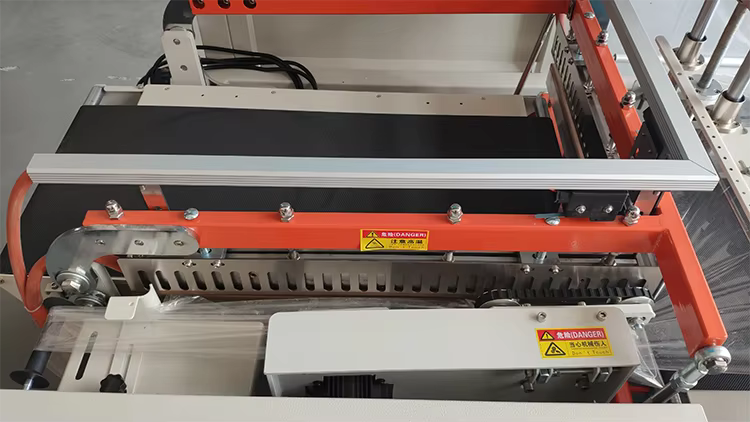

1. Special durable alloyed sealing knife with anti-stick teflon coats makes sealing strong and has better performance of heat conduction.
2. Only adjust packing width and height by hand wheels without changing any molds and parts when packing size changes. packing length can be detected by the sensor automatically.
3. Different products with different sizes can be packed together as promotional package.

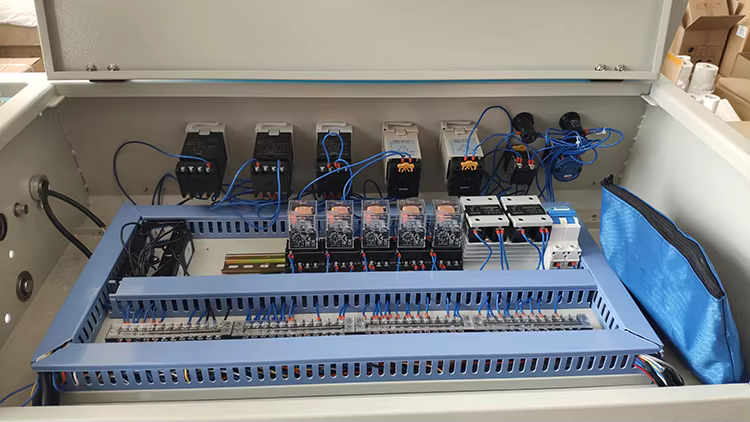

4. Adopt omron brand parts such as temperature controller, timer, relay, switch, and sensor.
5. Alarm for scrap film break or full.
6. A pair of photoelectric switch in vertical for thin products.
7. Optional closing conveyor for small products.
8. Optional sensor for transparent products.
3. Different products with different sizes can be packed together as promotional package.
4. Adopt omron brand parts such as temperature controller, timer, relay, switch, and sensor.
5. Alarm for scrap film break or full.
6. A pair of photoelectric switch in vertical for thin products.
7. Optional closing conveyor for small products.
8. Optional sensor for transparent products.
Customized B450+B500 Automatic Shrink Tunnel L Sealer Heat Shrink Packing MachineShrink Tunnel Length
High Temperature Resistance and Stickness Proof
High Temperature Resistance and Stickness Proof
Anti-Cutting Device
Human+Machine Operator
Stainless Steel Heating Tube
Fully auto unmanned operation L sealer shrink machine is widely used in packaging requirement for batch production,
high efficiency ,auto film feeding and punching ,auto film wrapping, sealing and cutting ,
manual adjust film guiding system and in-feeding conveyor for different width and height products.
