Expire Date Coding Printer Markem Imaje Smartdate X45 Plastic Bag Tto Date Printer Qr Code Printing Machine
Description
Basic Info.
Model NO.
X45
Color & Page
Single Colour
Automatic Grade
Automatic
Printing Area
32mm
Resolution
300 Dpi
Speed Intermittent
up to 600 mm/S
Speed Continuous
10 to 600 mm/S
Print Area Intermittent
53 mm or 32 mm X 75 mm
Print Area Continuous
53 mm or 32 mm X 100 mm
Maximum Ribbon Length
up to 1100 M
After Warranty Service
Video Technical Support
Transport Package
Carton
Specification
630*380*370MM
Trademark
NBER
Origin
China
Product Description
Automatic qr Bar code date printer Markem x45
thermal transfer overprinter 32mm printhead TTO printer

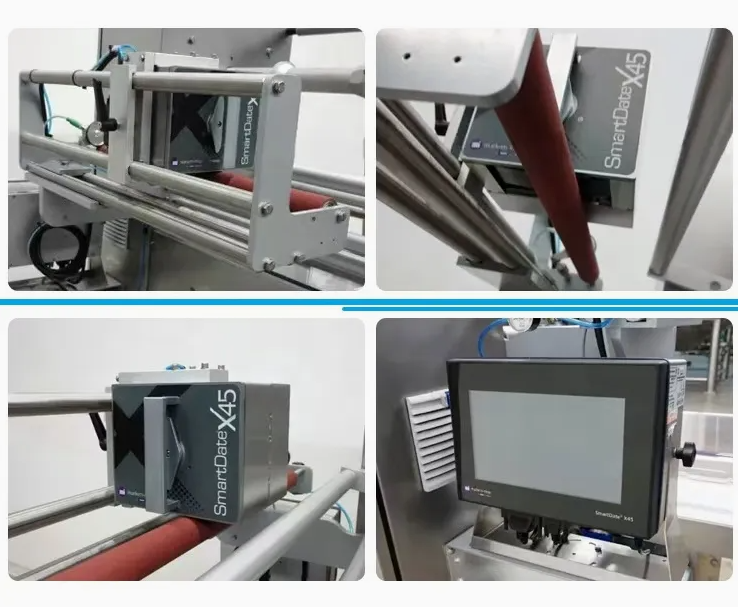

Designed for medium-duty applications,the SmartDate X45 delivers high-quality coding on flexible film packaging up to 220 packs per minute.Its fully intuitive 10.1" user interface makes daily operations easy and straightforward while providing the most valuable information you need to optimise and improve your Overall Equipment Effectiveness (OEE) through MI Sigma reporting.
thermal transfer overprinter 32mm printhead TTO printer
Designed for medium-duty applications,the SmartDate X45 delivers high-quality coding on flexible film packaging up to 220 packs per minute.Its fully intuitive 10.1" user interface makes daily operations easy and straightforward while providing the most valuable information you need to optimise and improve your Overall Equipment Effectiveness (OEE) through MI Sigma reporting.
Enhanced SmartDate experience
Optimised trancking of OEE data
Coder can be configured to monitor your 5 most important production metrics directly from your home screen e.g., pack tate, throughput, availability.
Tutorials to facilitate daily activities
Animated help and 'how to' tutorials provide guidance on setup and daily maintenance procedures to ensure consistent print quality.
Profile configurator for error-free operation
Configurable profile password function (operator,supervisor and engineer) manages access and limits human-related errors.
Optimised trancking of OEE data
Coder can be configured to monitor your 5 most important production metrics directly from your home screen e.g., pack tate, throughput, availability.
Tutorials to facilitate daily activities
Animated help and 'how to' tutorials provide guidance on setup and daily maintenance procedures to ensure consistent print quality.
Profile configurator for error-free operation
Configurable profile password function (operator,supervisor and engineer) manages access and limits human-related errors.
High-performance printing
Supports your marketing campaigns
Promotional coding function allows for unique coding on each pack.
Eliminates faulty codes and protects your brand
In addition to its dead-dot detection system,the easy-to-install SmartDate Detect-Plus system checks and confirms the presence, position and quality of the code on every pack and directly on the user 10.1" interface.
Achieves superior printing speeds
Print speed can be set from 30 mm to 600 mm per second allowing for 220 printed packs per minute at 300 dpi.
Supports your marketing campaigns
Promotional coding function allows for unique coding on each pack.
Eliminates faulty codes and protects your brand
In addition to its dead-dot detection system,the easy-to-install SmartDate Detect-Plus system checks and confirms the presence, position and quality of the code on every pack and directly on the user 10.1" interface.
Achieves superior printing speeds
Print speed can be set from 30 mm to 600 mm per second allowing for 220 printed packs per minute at 300 dpi.
| Model Name | Markem X45 |
| Print features | • Print speed: - Intermittent: up to 600 mm/s
- Continuous: 30 to 600 mm/s
• Print area:
- Intermittent: 32 mm or 53 mm x 75 mm
- Continuous: 32 mm or 53 mm x 250 mm • Print features:
- Automatic printhead setup
- Detect: Dead-dot detection - Quick change printhead
- Intermittent or continuous printing
- Easily change from left to right hand with no additional parts
- Gap between prints: 0.5 mm
- Automatic shift codes and serial numbers
- Multiple variable user input fields with alphanumeric texts
- High-pack-rate mode • Ribbon-saving mode:
- Radial ribbon save, Interlaced mode, Radial mode 1, Radial mode 2, Radial interlaced, Whitespace, Radial whitespace, Step advance
• Print specifications:
- Full TrueType font support, including non-Roman characters and symbols. Printing of real-time clock, dates and auto-updating best before dates, barcodes: ITF, Code 39, Code 128, EAN 128, EAN 8, EAN 13, UPC A, UPC E, RSS linear, PDF 417, ID Matrix, QR and Composite RSS barcodes support |
| Other characteristics | • Supplies: thermal transfer ribbon available in a variety of grades and colour • Maximum ribbon length: up to 1100 m
• Minimum ribbon width: 20 mm
• Maximum ribbon width: 55 mm
• Weight: Printer: 7.8 kg, colour controller: 4.5 kg
• Electrical power supply: 90 - 264 V with automatic switching; frequency 47/63 Hz; power 150 VA
• Air supply: 6 bar/90 psi (maximum) dry, uncontaminated
• Air consumption: down to 0.4 ml/print at 2.5 bar
• Operating temperature range: 0 to 40°C
• Humidity: 10% to 90% non-condensing |
| Operations | • User interface: 10.1" full colour 1024 x 600 touch screen for message selection, variable data entry, diagnostics and system setup • MI Sigma functionality
• Advanced health and availability monitoring
• Configurable user home screen
• Animated help tutorials: ribbon fitting, printhead cleaning, printhead replacing
• Simple print adjust
• Master/slave function to allow master control for up to 7 slaves
• Configurable password protection capability
• WYSIWYG print preview of printed message, real-time display of remaining print capacity expressed in hours and number of prints
• Full diagnostics (pack rate, speed)
• Robust LED status indicators on the printer
• Webbing diagram for fast ribbon changes
• Hardware interface: Inputs: "print go" and 1 configurable input Outputs: fault, warning, and 2 configurable outputs
• Software interface: USB for downloading images, settings and data files. RS232, Ethernet communications standard. Communications protocols for PCs, PLC and packaging machines, including full remote control web server |
| Optional accessories |
• Detect-Plus: code detection • Promotional coding
• IP protection option suitable for pressured water cleaning
• WEB Browser and VNC support
• Mounting bracket
• Encoders
• IP protection kit for installed SmartDate X45 |
| Software | • Included, CoLOS® Free 6.0 for design of simple messages |
