FC53 TTO Thermal Transfer Overprinter for Flexible Packaging Coding
FC53 TTO thermal transfer overprinter is built for flexible packaging lines. With 300DPI high resolution, it supports both intermittent and continuous operation. Featuring full metal structure, Wi-Fi & Bluetooth connectivity and smart detection functions, it works with most packaging films and all types of TTO ribbons. Ideal for printing dates, batch numbers, barcodes and QR codes in food, pharmaceutical and daily chemical industries.
Description
FC53 TTO Thermal Transfer Overprinter

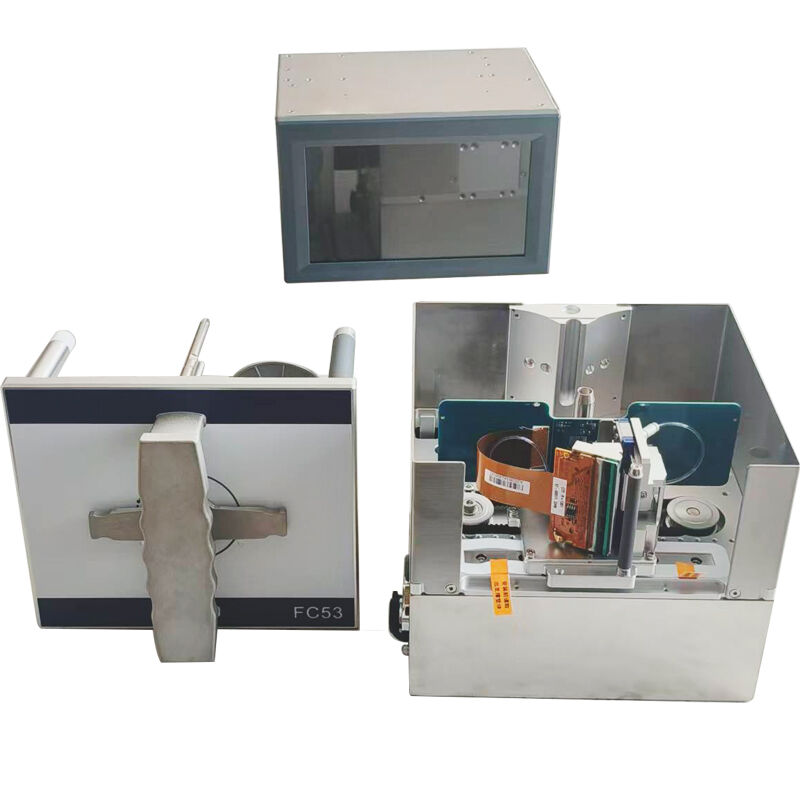

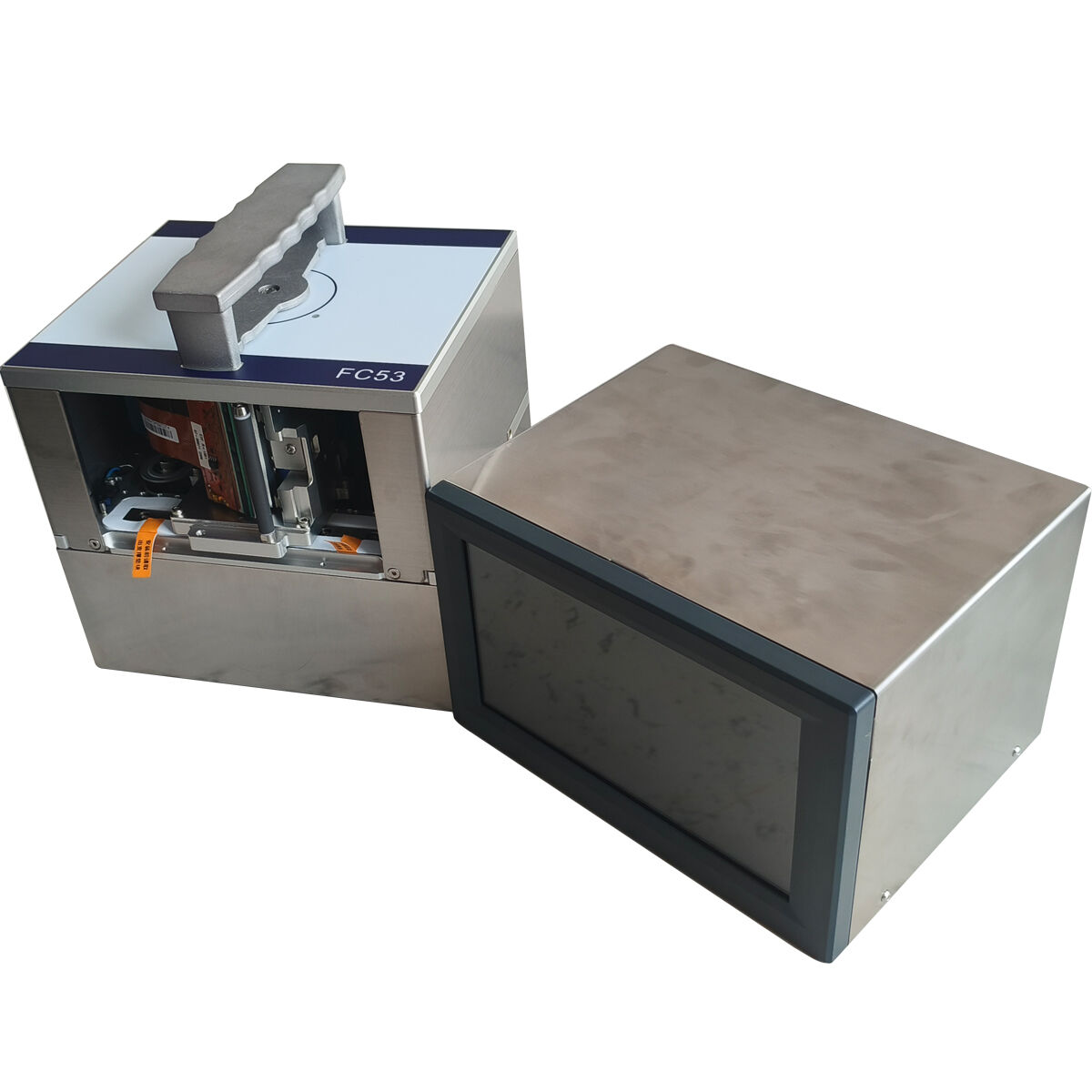

FC53 is an industrial-grade Thermal Transfer Overprinter (TTO) built with an all-metal housing, designed for high-precision variable data printing on flexible packaging films. It integrates seamlessly with both intermittent and continuous packaging lines, widely applied in food, pharmaceutical, daily chemical, and other industries for printing production dates, batch numbers, expiry dates, barcodes, QR codes, and logos.
| Printing Technology | Thermal Transfer Overprinting (TTO) |
| Max. Print Width | 53 mm |
| Print Resolution | 300 dpi (12 dots/mm) |
| Print Speed | 40–600 mm/s |
| Body Construction | Full metal housing |
| Intermittent Mode | 53 × 75 mm |
| Continuous Mode | 53 × 100 mm |
| Intelligent Detection | Ribbon tension / breakage, print head position, overheating, cover open detection |
| Packaging Films | PET, PE, NY, CPP, OPP, BOPP, BOPET, BOPA, VMPET, VMCPP and other flexible packaging films / composite films |
| Printable Formats | Text, numbers, linear barcodes (UPC-A/E, EAN-8/13, CODE39/128, etc.), QR codes, Data Matrix, bitmaps |
Industries:
Food & Beverage (snacks, confectionery, dairy, frozen food)
Pharmaceutical (blister packs, sachets, pouches)
Daily Chemicals (cosmetics, detergents, toiletries)
Flexible Packaging (laminated films, pouches, labels)
Print Content:
Production / Expiry Dates
Batch / Lot Numbers
1D Barcodes (EAN-13, CODE128, etc.)
2D QR / Data Matrix Codes
Logos, Graphics, Variable Text
1,High Precision & Clarity
300 dpi resolution ensures sharp text, barcodes, and QR codes, ideal for strict traceability requirements.
Supports both intermittent (for stop-and-go lines) and continuous (for high-speed flow lines) operation, maximizing production flexibility.
3,Robust & Durable Build
All-metal construction delivers excellent stability and heat dissipation, suitable for harsh industrial environments.
4,Smart Detection & Protection
Multi-sensor system monitors ribbon status, print head temperature, and cover position to prevent downtime and extend print head life.
5,Flexible Connectivity
Wi-Fi/Bluetooth for wireless control; rich wired ports for easy integration with PLCs, PCs, and packaging machines.
Accepts up to 1100 m long ribbons, reducing frequent replacement and lowering total ownership cost.
