High Speed Industrial Barcode Printer 300dpi High Performance New and in Stock Tsc Mf3410
Description
The MF Series 4-inch wide industrial label printer features an all-metal print mechanism that maintains durability even at high print volumes. The MF Series ensures high-quality output when printing special labels, such as stiffer and thicker clothing tags, and offers a variety of optional accessories to support different application requirements. These accessories include a linerless kit, liner peel kit, internal roll recovery kit, and cutter. Different accessories can be used to increase printer functionality and flexibly meet a variety of usage scenarios. In addition to its durable design, the MF Series industrial label printer also features excellent print quality and a wide range of accessories, making it an ideal choice for meeting diverse printing needs.
Model number |
MF3410 |
Resolution |
12 points/mm (300 dpi) |
Print mode |
Thermal and thermal rotary |
Maximum print speed |
228.6 mm (9")/ S |
Maximum print width |
105.7 mm (4.16 ") |
Maximum print length |
11,430 mm (450 ") |
chassis |
Aluminum alloy cast printing mechanism module/metal housing with large transparent window design |
Volume dimension |
248 mm (W)x274 mm (H)x436 mm (L) |
weight |
9.76"(W)x10.79"(H)x17.17(L) |
Maximum size of internal roll |
9.1 kg (20.06 lb) |
Carbon band |
40 mm - 110 mm (1.6" - 4.3") |
Internal memory |
32-bit RISC CPU central processing unit |
Communication interface |
• RS-232 • USB 2.0 • Built-in Ethernet, 10/100 Mbps • USB Host, for a scanner or PC keyboard • GPIO (dealer optional) |
Bar code |
• One-dimensional bar code Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleave 2 of 5, Ean-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, Stacked by PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11, China Post • QR barcode Pdf-417, Micro PDF 417, Maxicode, DataMatrix, QR code, Aztec, TLC 39, RSS
|
Full metal casting, good-looking, strong and durable

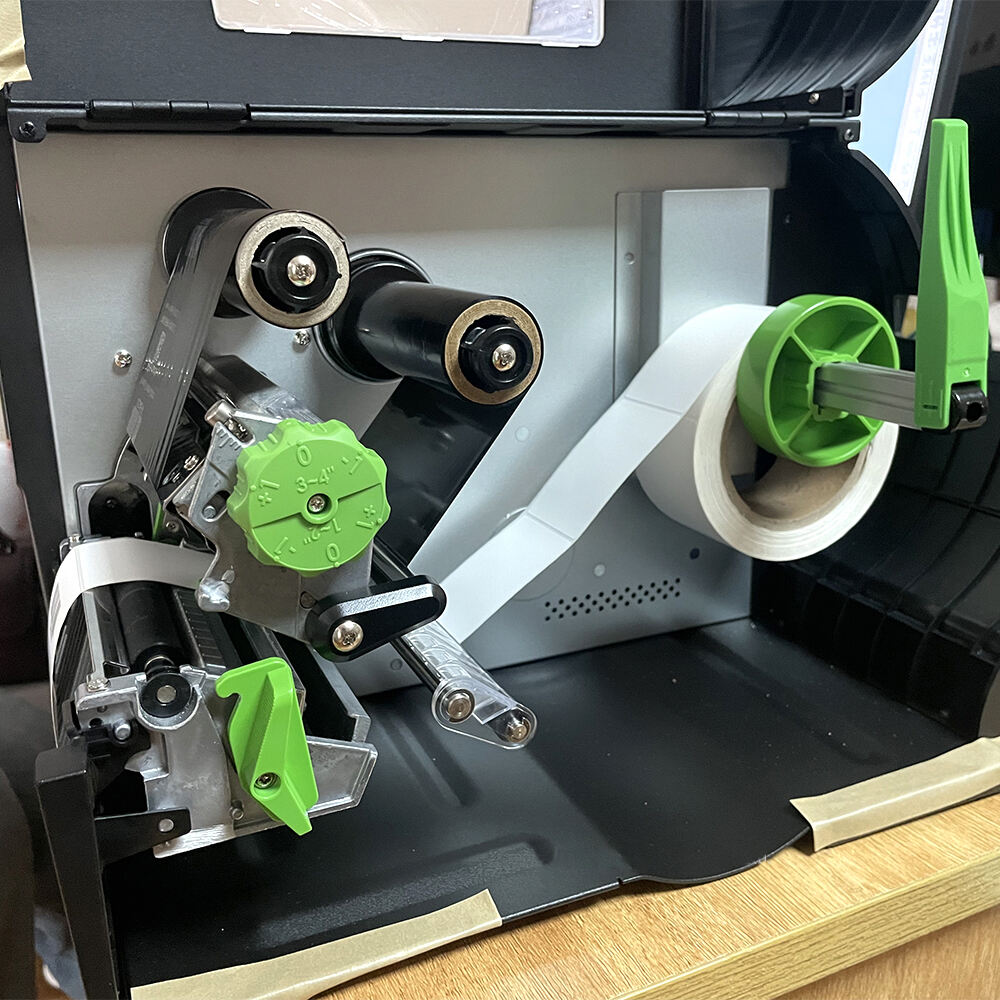

Removable printing module makes work easier
Open the foldable shell to effectively increase the heat dissipation space
It is very convenient to replace printing consumables
High-definition printing, batch printing for a long time
Longer wear and corrosion resistance service life
Wide format label printing.
Suitable for various printing market applications and needs Printing width 25-
108mm
Adjust the print balance so that both sides of the label are evenly colored
If the print color is uneven, try adjusting the green button
Carbon tape adjusting rod.
Avoid wrinkles in the carbon belt and make printing smoother
If the print stain has traces, try the twist device
The visual perspective window design of the fuselage
Can easily observe the real-time usage of paper
USB 2.0 RS232 serial port meets the printing needs of different industries
