markem-imaje X40 X45 videojet 6230 6330 6530 Thermal Transfer Overprinter
This series of high-performance industrial Thermal Transfer Overprinters (TTO) from world-renowned brands Markem-Imaje and Videojet provides comprehensive and reliable coding solutions for flexible packaging lines across food, beverage, cosmetics, health supplement, and fast-moving consumer goods industries. Covering entry-level, mid-range, and high-end market segments, these TTO printers are designed to meet diverse production needs—from small-batch low-speed operations to large-scale high-throughput production lines—while ensuring clear, durable, and compliant coding of dates, batch numbers, barcodes, QR codes, and logos.
Description

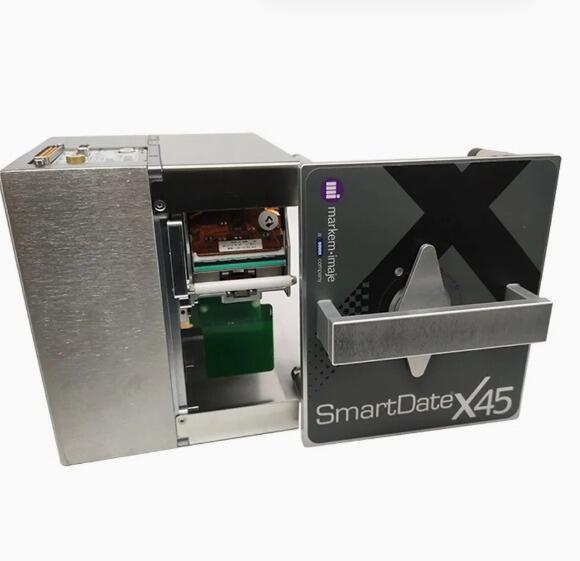

Markem-Imaje X40 / Markem-Imaje X45
Markem-Imaje X40 and X45 are high-performance thermal transfer overprinters designed for stable and high-efficiency coding on flexible packaging. They support 32mm and 53mm print heads, deliver clear 300dpi printing, and feature user-friendly operation and strong compatibility with various packaging machines. Suitable for medium to high-speed production lines, they ensure consistent code quality for date, batch, barcode and logo applications.
| SmartDate X40 | SmartDate X45 | |
| Print Speed – Continuous | 10–600 mm/s | 30–600 mm/s |
| Print Speed – Intermittent | Up to 600 mm/s | Up to 600 mm/s |
| Printhead Options | 32 mm / 53 mm | 32 mm / 53 mm |
| Weight (Printer/Controller) | 7.8 kg / 4.0–4.5 kg | 7.8 kg / 4.5 kg |
| Typical Use Case | Food, cosmetics, pharmaceuticals (medium speed) | High-speed food, beverage, personal care lines |
For complete information, click on the image to jump to the product page
Videojet 6230 / 6330 / 6530
Videojet 6230, 6330 and 6530 TTO printers form a complete range for low to high-speed production lines with precise 300dpi printing.
- 6230: Entry-level model equipped with a 32mm print head, ideal for small and medium-scale production.
- 6330: Mid-to-high speed model supporting 32mm and 53mm print heads, with reliable performance for standardized mass production.
- 6530: High-speed flagship model available with 53mm and 107mm wide print heads, designed for large-scale high-throughput flexible packaging lines.
All models integrate stable coding control, easy line integration and low maintenance to improve production efficiency and reduce operating costs.
| Videojet 6230 | Videojet 6330 | Videojet 6530 | ||
| Print Speed (Continuous) | Up to 500 mm/s | Up to 250 packs/min |
53mm: 700 packs/min 107mm: 450 packs/min |
|
| Printhead Options | 32mm / 53mm | 32mm / 53mm | 53mm / 107mm | |
| User Interface | Color touchscreen | 10.1-inch color touchscreen | 10.1-inch color touchscreen | |
| Typical Applications | Low-to-medium speed food, cosmetics | Medium-speed food, beverage, pharmaceuticals |
|
For complete information, click on the image to jump to the product page
