Online TTO Printer Compatible with Flow Wrappers and Labeling Machines
A high-performance 53mm wide TTO encoder with a high resolution of 300DPI, printing frequency: 400 times/minute, printing speed: intermittent: 100-400mm/s, continuous: up to 800mm/s. Specially designed for clear and stable printing of production dates, batch numbers, QR codes, ingredient lists, and nutritional components on various flexible packaging materials.
Description

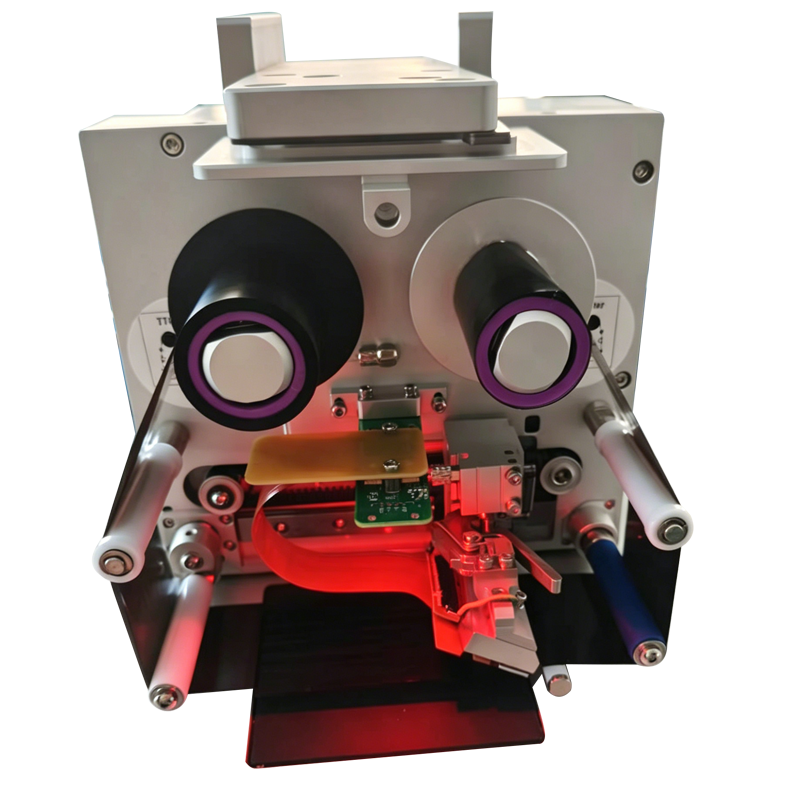

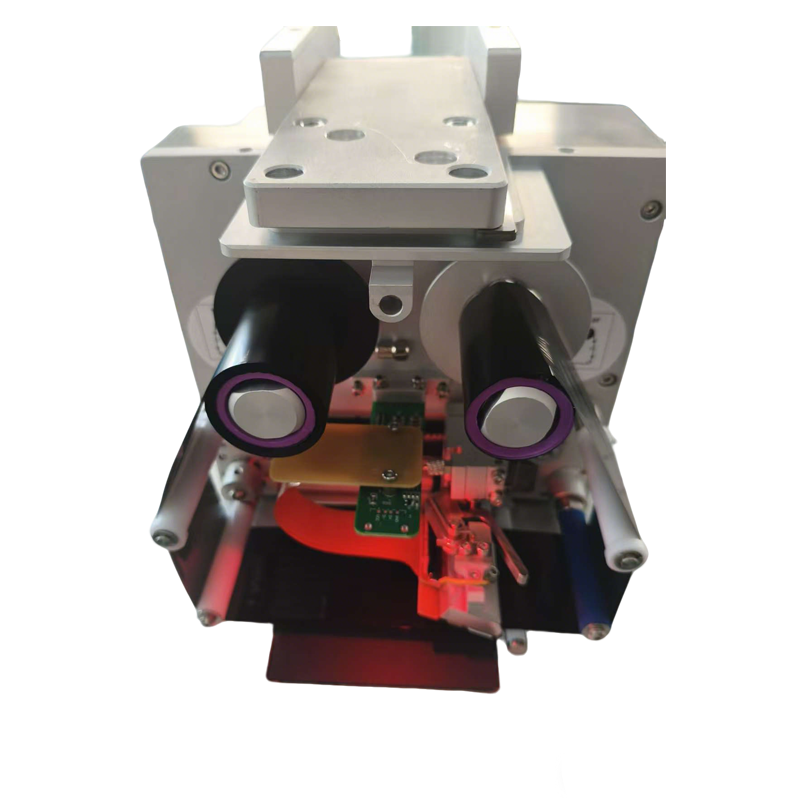

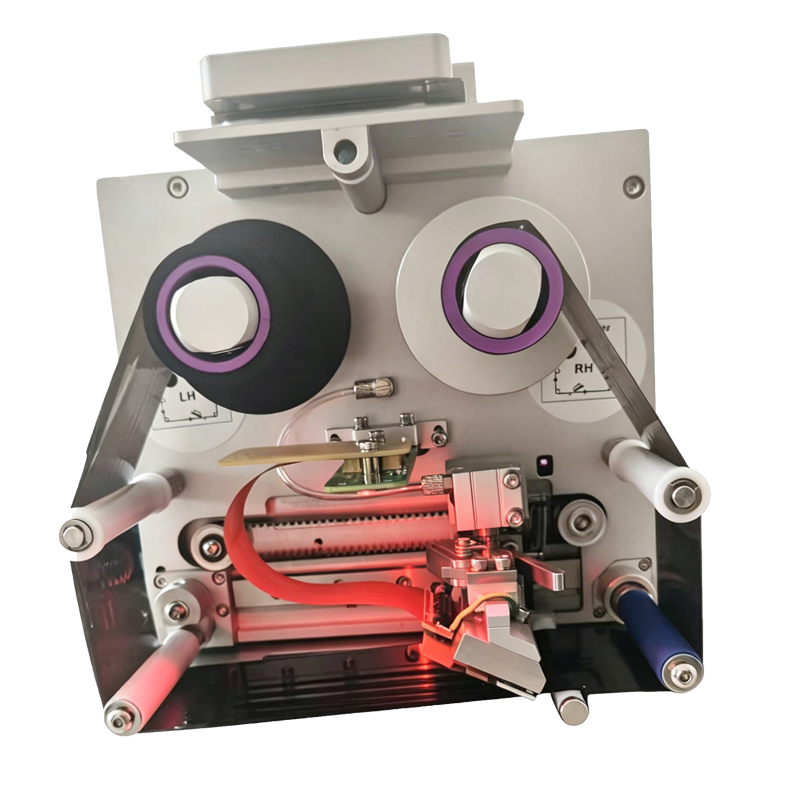

Yanjie U53 Thermal Transfer Overprinter
Yanjie U53 is a 53mm wide thermal transfer coding machine designed specifically for flexible packaging industries such as food, medicine, and daily chemical products. It is equipped with a 300DPI high-definition print head and supports intermittent/continuous dual-mode operation. It has both high-speed printing and precise coding capabilities, and can meet the identification needs of multiple scenarios such as ingredient lists, traceability codes, and production dates in one stop。
Core advantages of the product
53mm ultra large printing width: print multiple lines of text, complete ingredient list, nutrition list, QR code and logo at once, without the need for multiple devices to stack, simplifying production line layout
300DPI high resolution: clear and sharp handwriting, no burrs on edges, uniform and full colors, printing effect comparable to printing quality, improving product packaging texture
Intermittent/continuous dual-mode integration: compatible with various equipment such as pillow packaging machines, vertical packaging machines, bag feeding packaging machines, high-speed labeling machines, etc., with interchangeable left and right hand installation, suitable for different packaging processes
High speed and efficiency: Continuous mode printing speed up to 800mm/s, intermittent mode adjustable from 100 to 400mm/s, printing frequency up to 400 times/minute, suitable for high-speed production line capacity requirements
Adequate printing area: intermittent mode 53 × 80mm, continuous mode 53 × 180mm, meeting the needs of long text and multi batch identification
Model |
U53 Thermal Transfer Overprinter (TTO) |
| Resolution | 300 DPI |
| Printing Width | 53 mm |
| Printing Speed | Intermittent: 100–400 mm/sContinuous: Up to 800 mm/s |
| Ribbon Size | 55 mm × 600 m (optional 900 m) |
| Communication Ports | RS232, Ethernet, USB 2.0 |
| Compatible Materials | Flexible packaging film, composite film, aluminum foil bag, label paper, etc. |

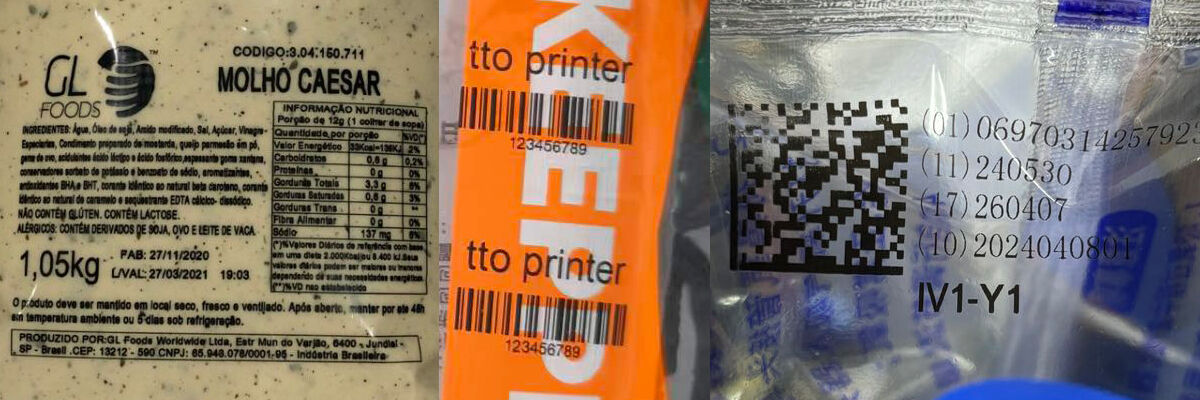

Printing effect display
Typical application scenarios
Food baking industry
Suitable for soft packaging such as bread, pastries, frozen foods, fillings, cookies, etc., accurately printing production date, shelf life, batch number, ingredient list, nutritional content list, etc
Health Products Industry
Suitable for pharmaceutical boards, aluminum foil bags, composite films, and packaging of health products, printing batch numbers, expiration dates, supervision codes, and traceability QR codes
Daily chemical/pet food industry
Suitable for soft packaging such as shampoo, laundry detergent, pet food, and skincare products, printing ingredient lists, specifications, anti-counterfeiting codes, production dates, and supporting multilingual labeling
Hardware/Fastener Industry
Suitable for bagged products such as screws, nuts, accessories, etc., printing specifications, models, serial numbers, and cyclic batch numbers
- Is the U53 TTO suitable for my packaging machine?
- Yes, it fits most vertical packaging machines, horizontal flow wrappers, pouch packaging machines and labeling machines. It supports both left-hand and right-hand installation.
- What materials can the U53 print on?
- It works on flexible films, composite films, aluminum foil bags, plastic films, labels and food packaging materials.
- Does it support QR codes, barcodes and ingredient lists?
- Yes, it supports 1D/2D barcodes, QR codes, text, logos, date codes, batch numbers, ingredient lists and variable data printing.
