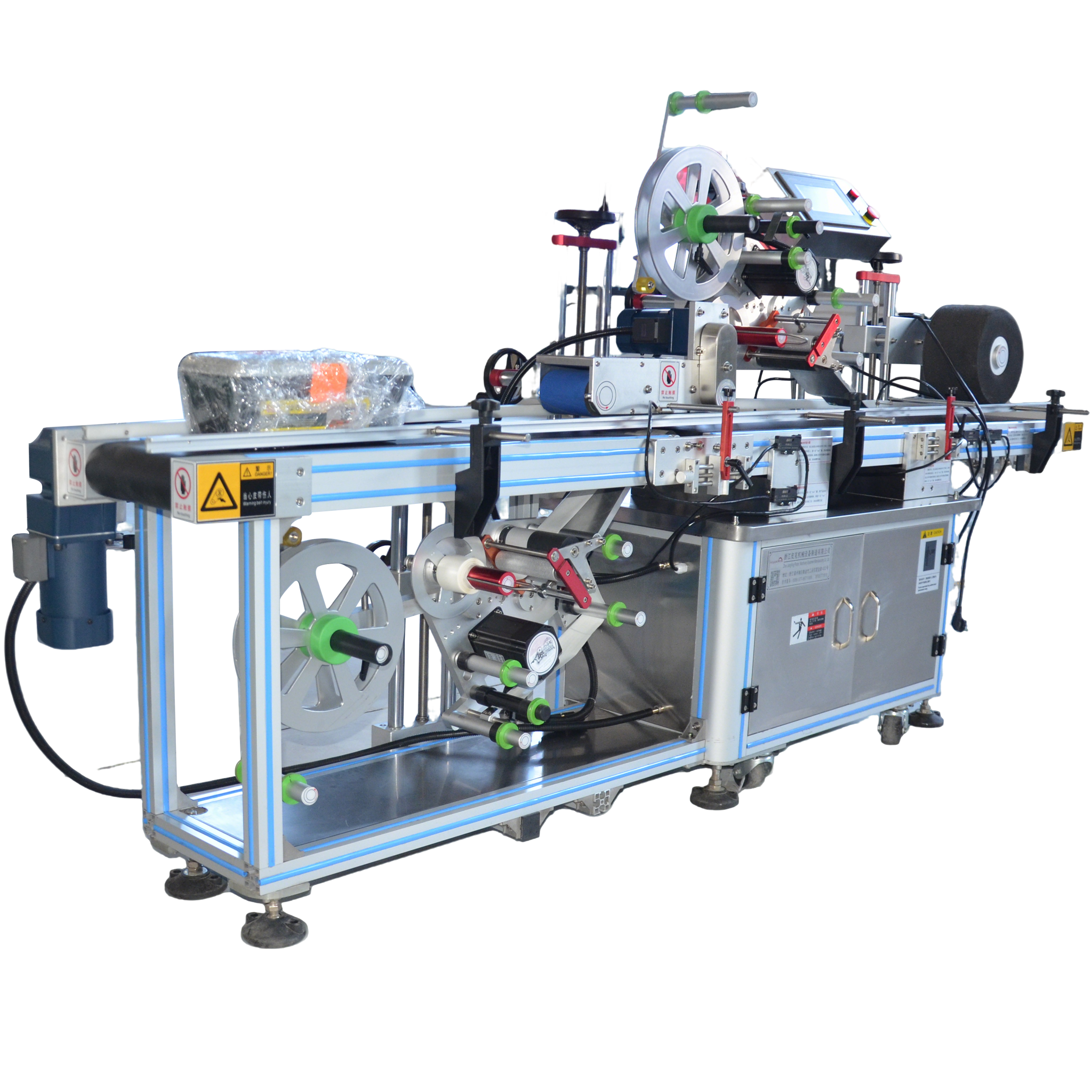

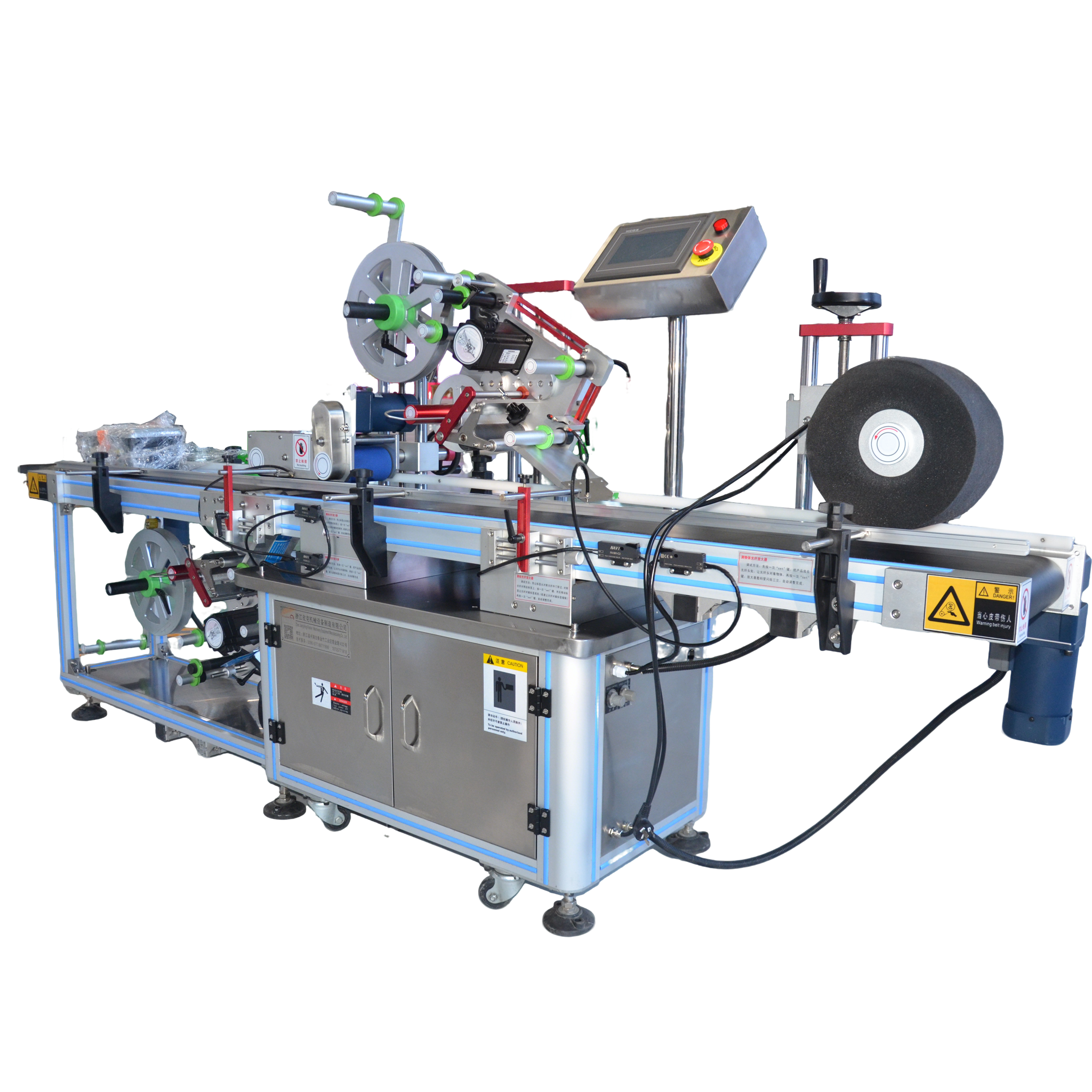

Up and down flat labeling machine

Up and down flat labeling machine

Up and down flat labeling machine is an automated labeling equipment designed specifically for regular rectangular and square objects. It can complete the synchronous/sequential attachment of dual labels on the upper and lower surfaces of objects at once, and can also be used separately as a single machine, adapting to the packaging and labeling needs of multiple scenarios.

Core functional highlights

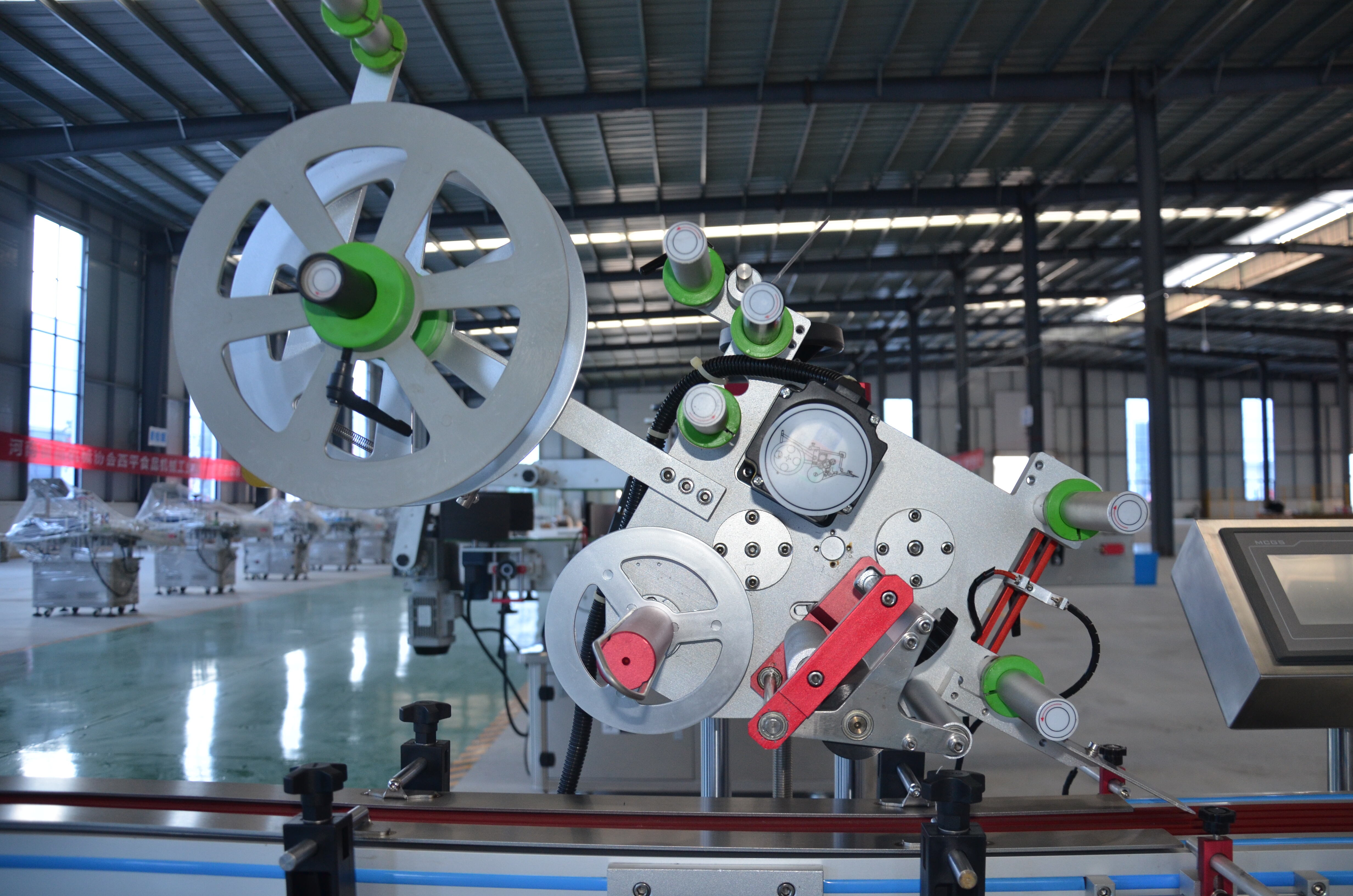

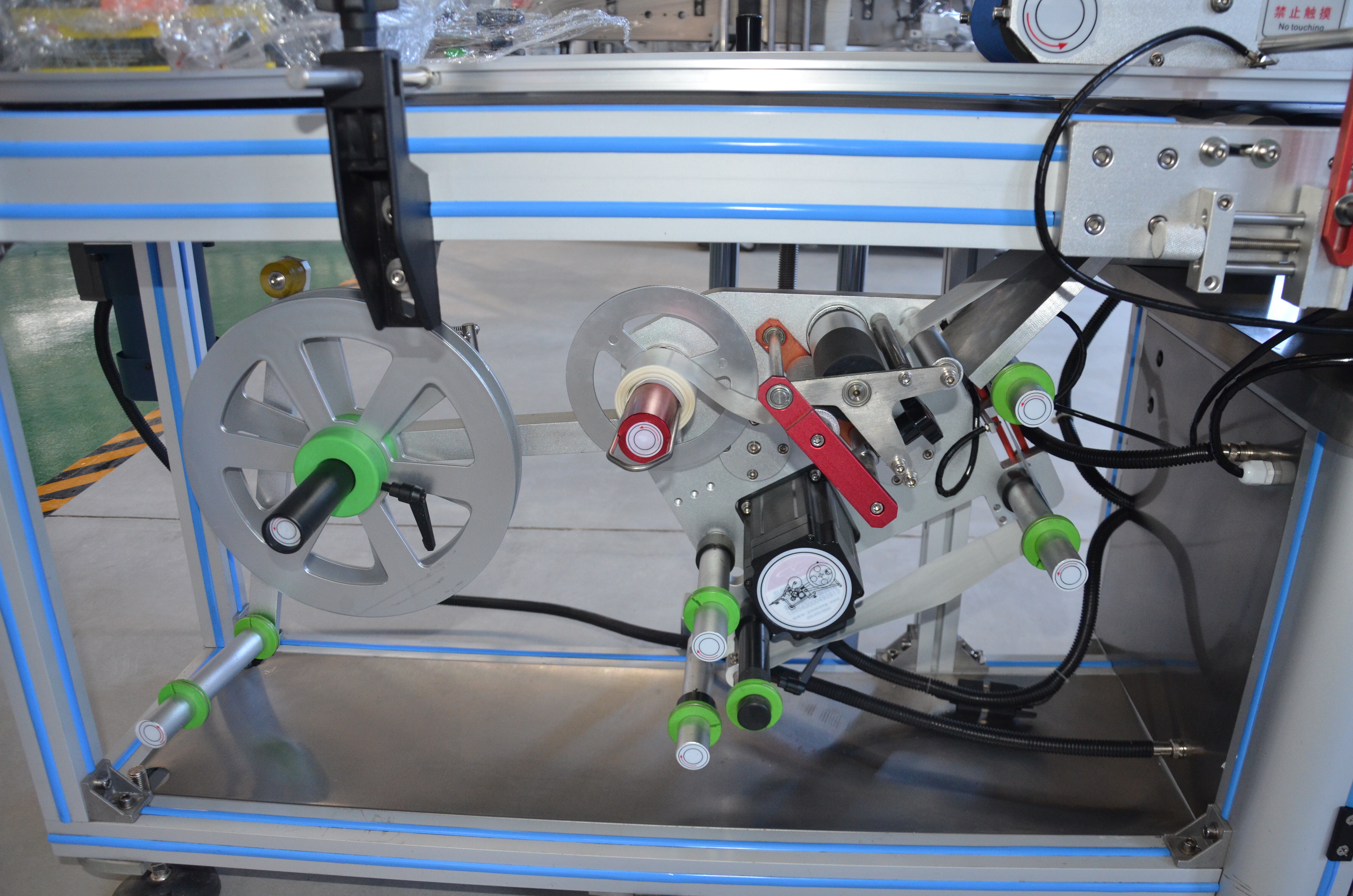

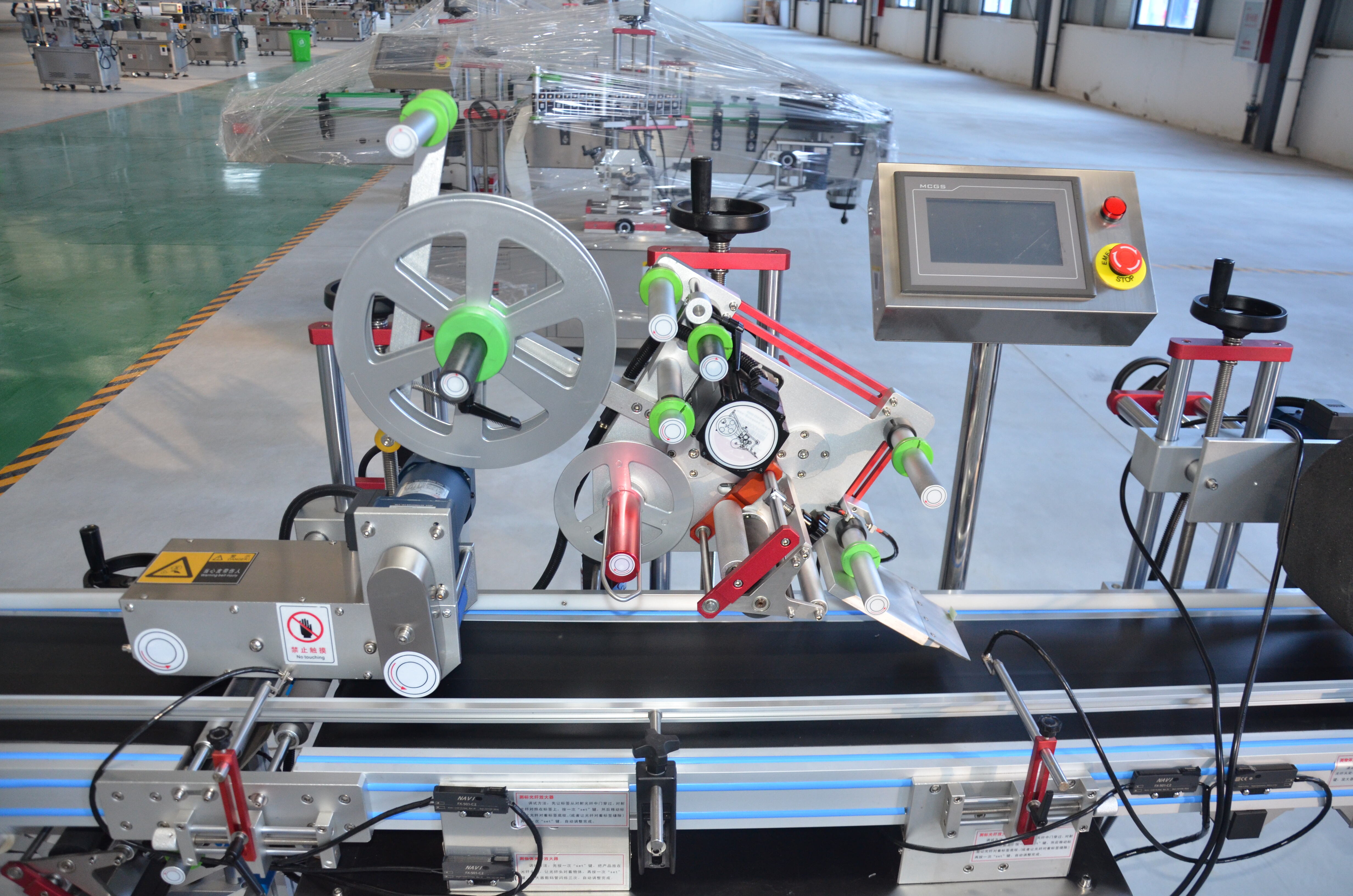

1.Double label synchronization/split labeling: The double label header can synchronize the upper and lower surface labeling, or split the single machine to achieve single-sided labeling, flexibly adapting to different production needs；

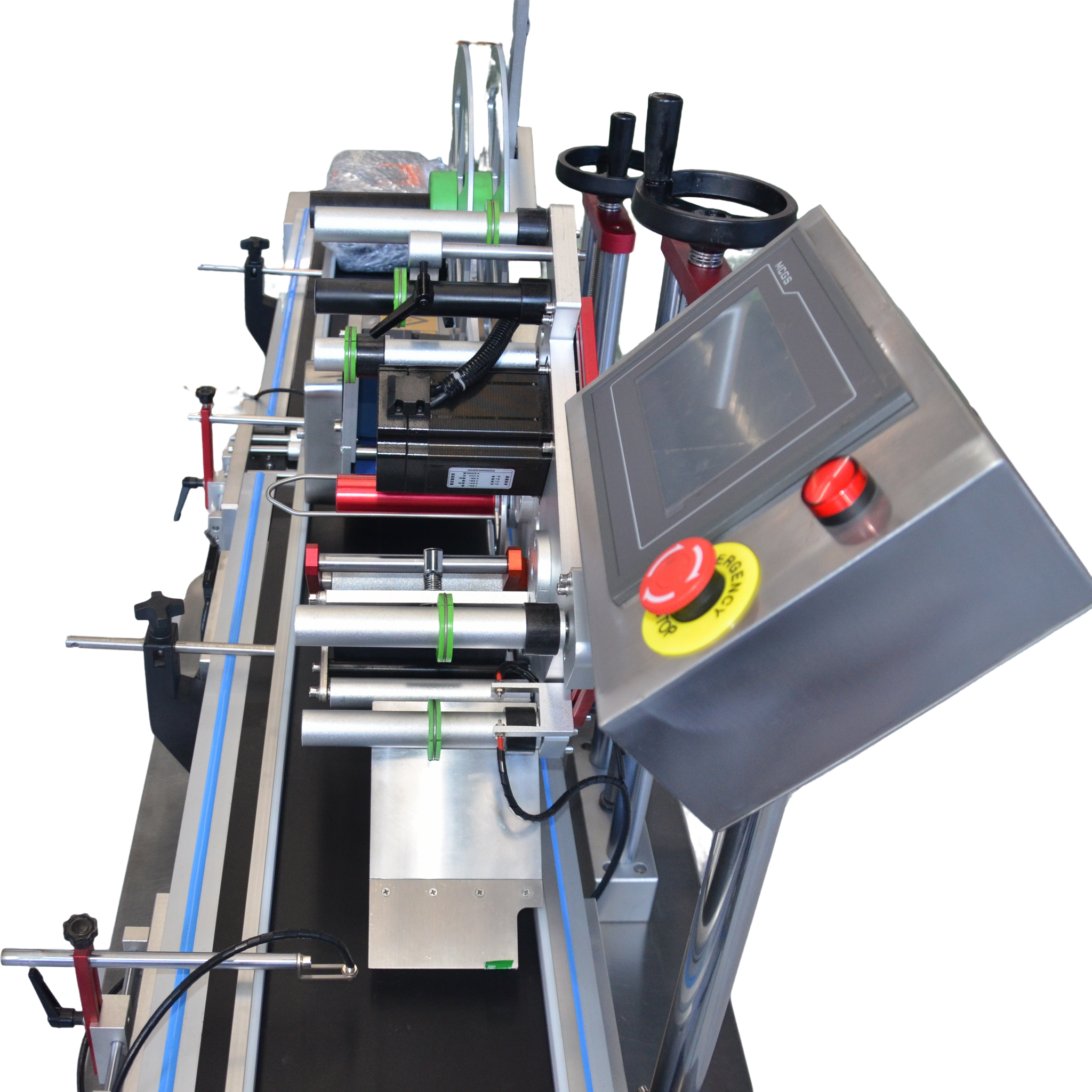

2.Intelligent and precise control: equipped with a touch screen human-machine interface, supporting parameter setting, production counting, and fault alarm; Equipped with photoelectric tracking and no labeling function to avoid missing labels and label waste;

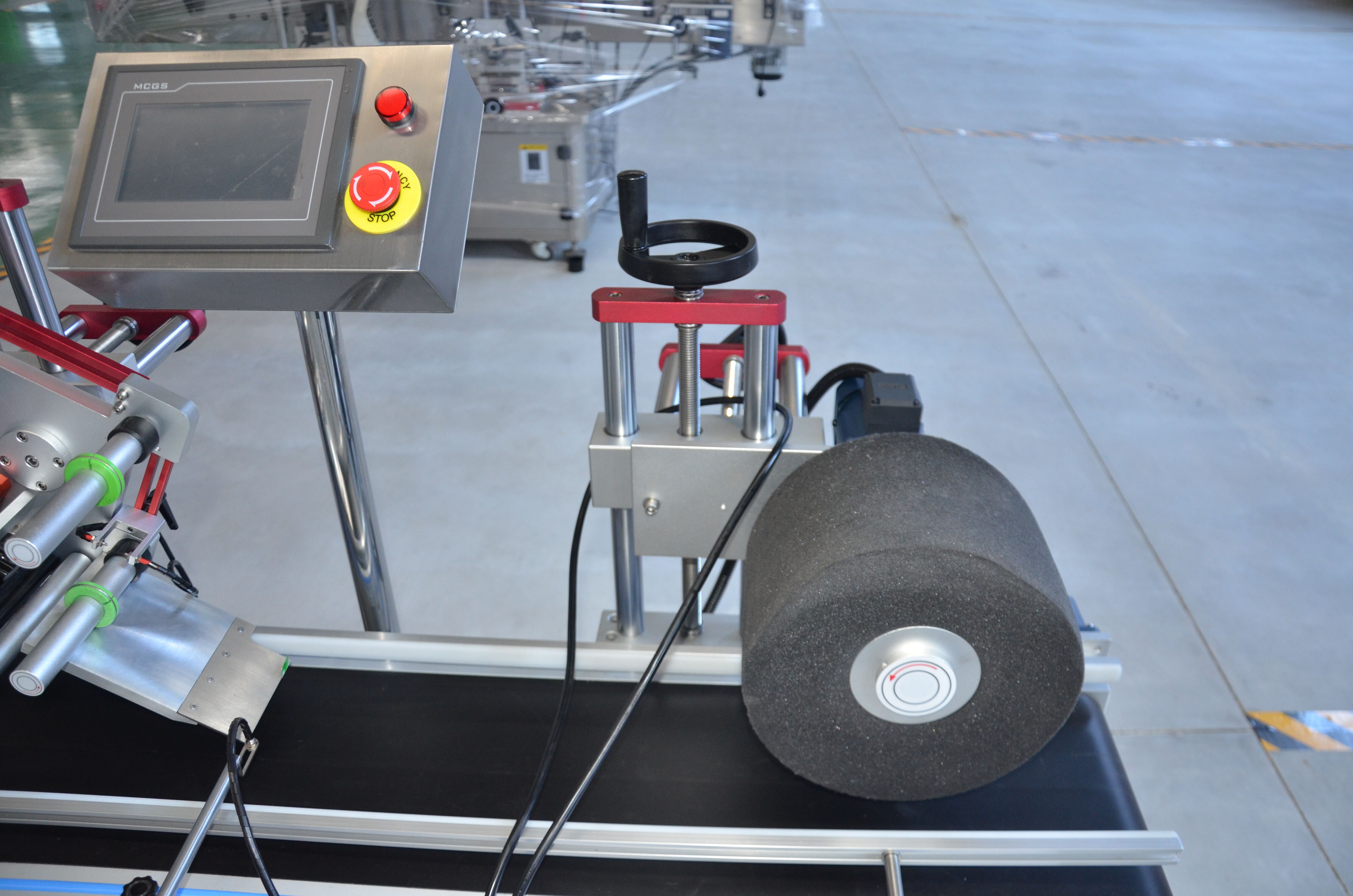

3.Strong stability and adaptability: The body is made of 304 stainless steel and aluminum alloy material, which is corrosion-resistant and easy to clean; The header can be adjusted with multiple degrees of freedom to adapt to products of different sizes; The labeling mechanism adopts sponge rollers to ensure that the labels are adhered without bubbles;

4.Rich expandability: Optional inkjet printer/coding machine can be equipped to achieve synchronous printing of production date, batch number, barcode and other information on the label; Support customized configurations such as transparent label dedicated sensors, automatic sorting mechanisms, vacuum adsorption conveyor belts, etc.

Industries & Applications：

Food and beverage industry: food packaging boxes , bottled/boxed beverages, frozen foods, pre packaged food packaging boxes, seasoning boxes, etc

Medical device industry：Medicine boxes, medication bottles , medical consumables boxes , medical device packaging boxes, reagent kits, etc

Daily chemical and beauty industry：Skincare box, cosmetics box, toiletries bottle , wet wipes box, tissue box, toothpaste box, beauty tool packaging box, etc

Express logistics industry：Express waybill, warehouse logistics turnover box, express envelope, etc

FAQ

Is the labeling accuracy high?
The accuracy is stable at ± 1.0mm. There may be slight fluctuations based on product size and label material, but it fully meets the conventional labeling requirements of industries such as food, medicine, daily chemical, and e-commerce.

Can the upper and lower surface labels be completed simultaneously in one go?
Okay. The equipment is equipped with upper and lower dual labeling heads, supporting synchronous labeling or phased labeling. You can also use one of the heads separately as a regular labeling machine, which is very flexible.

Will the label be damaged or bubble up?
No. Equipped with professional labeling rollers, the labels are compacted using sponge rollers to ensure a smooth, bubble free, and edge free surface.

Is the operation difficult? Do we need skilled workers?
Not difficult. The device is equipped with a Chinese/English touch screen, and the operation interface is simple and intuitive. Workers only need to place and receive products, adjust the parameters once to ensure stable operation.
