UV Laser Marking Machine Plastic Metal Glass PP PVC Engraving Machine
UV Flying Laser Marking Machine for Glass Bottle 3W 5W 10W Prefabricated Food Plastic Bags Inkless Date Printer
Description

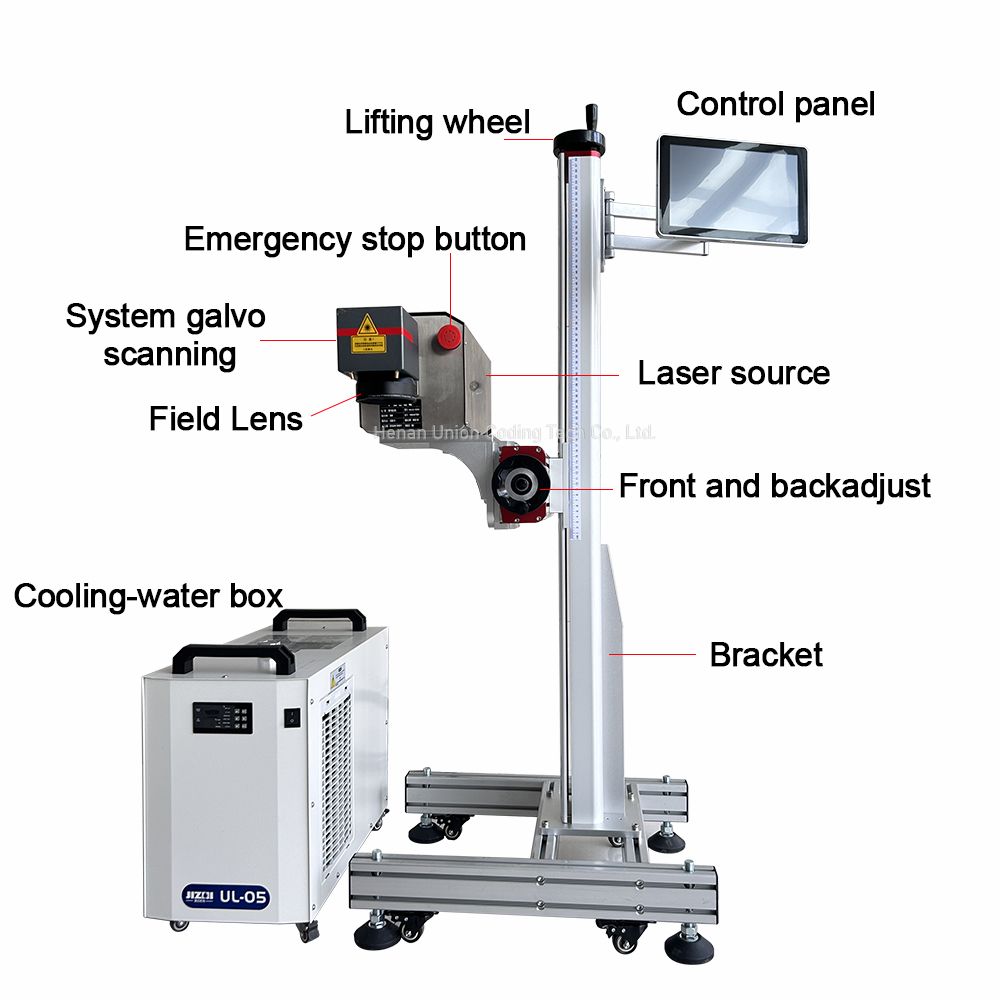

UV laser marking machine:
The reaction mechanism during UV laser processing is achieved through photochemical ablation, which relies on laser energy to break the bonds between atoms or molecules, making them small molecules vaporized and evaporated. The focusing spot is extremely small, and the processing heat affected zone is very small, so it can be used for ultra fine marking and special material marking. The UV laser marking machine mainly uses a cold light source, with a wavelength of only 355nm and a smaller focusing spot diameter. Various materials have a high absorption rate of UV light, and their thermal influence is also small (negligible), so their marking effect needs to be more exquisite and refined. The minimum spot of the UV laser after focusing can reach 10UM, and the processing heat affected zone is small. Therefore, it can be used for ultra fine marking and special material marking, especially suitable for food and pharmaceutical packaging materials marking, micro hole marking, high-speed division of glass materials, and complex graphics for silicon wafers and other application fields.
Laser type |
UV Laser Marking Printer |
Laser wavelength |
355nm |
Laser power |
3W, 5W, 10W, 15W |
Average powerstability |
< 3% |
Marking accuracy |
3-5 microns or less |
operating system |
UNIXCE embedded touch controller |
cooling method |
Water/air cooled |
electricity demand |
110V/220V, 50-60Hz |
Total power |
600W, 800W, 1200W |
Machine materia |
All-aluminum construction |
Host weight |
60KG |
Applicableindustry |
Graphics, text, serial number, bar code, two-dimensional code, database, line number is not limited |
Applicable materials |
Plastic (PE, PC, PVC, EVA, ABS,PP, PET, etc.) packaging, metal packaging, ink printing surface, rubber surface, ceramic surface,aluminum foil bags, film and other flexible packaging materials, composite film packaging materials HDPE,PP material, PPR, etc |
3 Types Laser Sources For Applications
1)C02 Laser Suitable for nonmetalic materials, bamboo and wood products, acrylic, leather,papel products,rubber, silicone,etc.
2)Fiber laser Suitable for metal,hard plastic, ceramic, leather,glass, paint stripping etc.
3)UV Laser for high precision engraving and marking, glass products, rubber, plastic,wood products, metal. etc.
