Videojet 6530 53/107mm 53mm: 31.5 in./sec (800mm/sec) /107mm : 23.6in./sec (600mm/sec)
The Videojet DataFlex® 6530 is a high-speedthermal transfer overprinter built to offer superiorperformance and consistent high-quality printing.The airless, patented all-electronic system andribbon drive can achieve print speeds up to1000mm/s and throughputs up to 700 ppm'.
Description

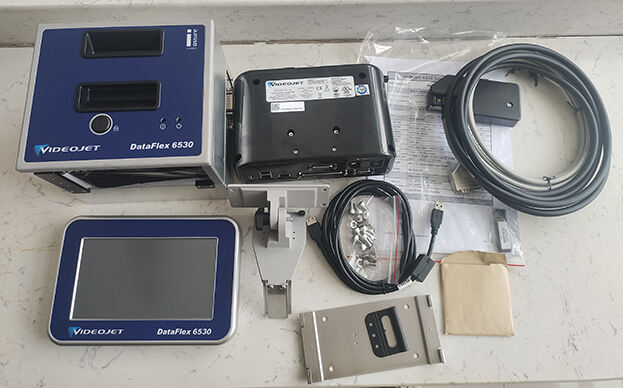

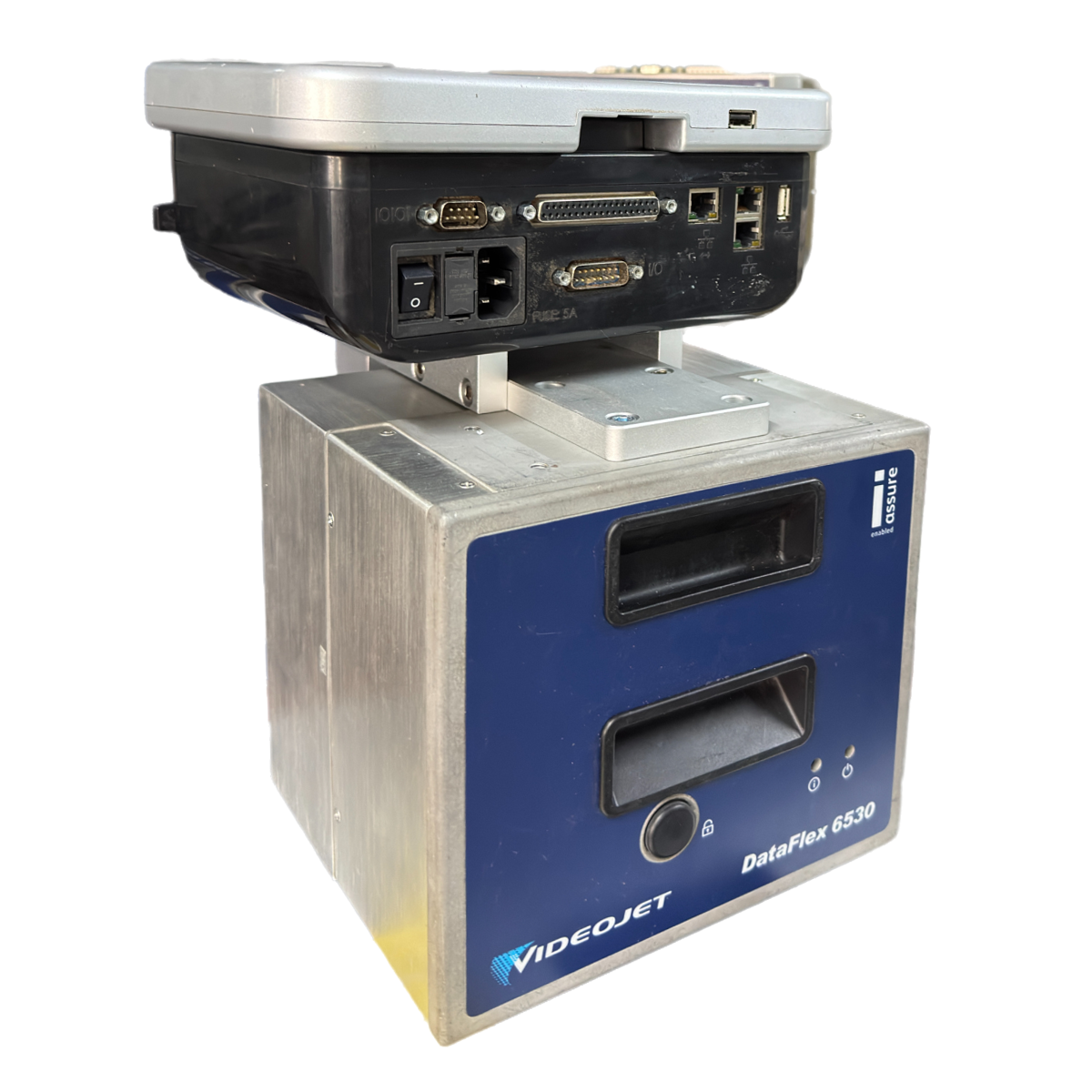

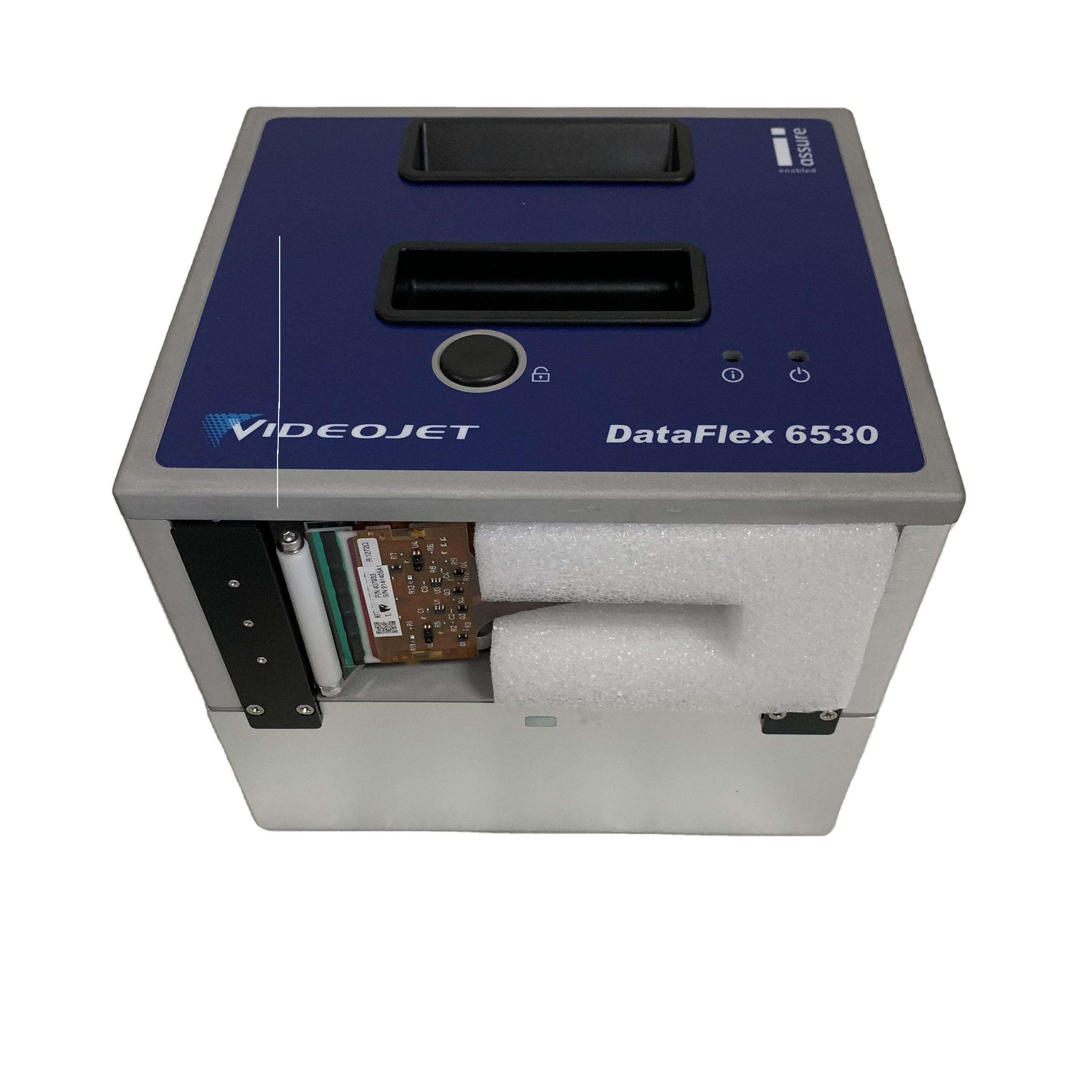

Videojet DataFlex 6530 53/107mm Thermal Transfer Overprinter
The Videojet DataFlex 6530 is a high-performance thermal transfer overprinter (TTO) designed for printing variable information on compatible flexible packaging materials. Available with 53mm or 107mm printheads, it supports high-speed coding applications in automated packaging and manufacturing environments.
Featuring an all-electronic ribbon drive, intermittent and continuous printing modes, plus a user-friendly touchscreen interface, the Videojet 6530 helps manufacturers print production dates, expiry dates, batch numbers, barcodes, QR codes and other variable information.
The system can be integrated with compatible packaging equipment, labeling machines, product feeding systems and label rewinding lines to support synchronized printing during production.
Key Features of Videojet 6530 TTO Printer
1. High-Speed Thermal Transfer Printing
The Videojet 6530 supports fast, consistent coding for demanding production environments. The 53mm version offers intermittent print speeds up to 800mm/s, while the 107mm version supports intermittent print speeds up to 600mm/s. Continuous printing can reach speeds up to 1,000mm/s, depending on the application.

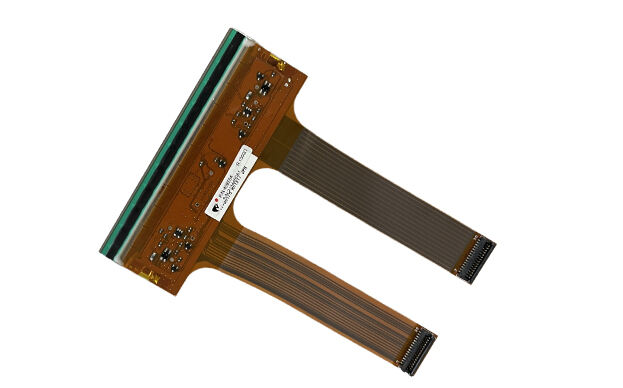

2. Two Printhead Width Options
The printer is available in 53mm and 107mm configurations to accommodate different print layouts and information requirements.
53mm printhead: Suitable for narrower coding areas and compact variable-data layouts.
107mm printhead: Provides a wider printing area for larger graphics, longer text and more complex codes.
Choose the printhead according to the required print width, packaging format and available installation space.
3. Intermittent and Continuous Printing
The Videojet 6530 supports both intermittent and continuous printing modes. This flexibility allows the system to be configured for compatible packaging processes with different movement patterns.
The correct operating mode depends on the machine type, material movement and required print layout.
4. Clear Text, Barcodes and QR Codes
The system supports variable text, date and time formats, batch codes, counters and multiple barcode formats. Depending on the print layout and application, it can also print QR codes, DataMatrix codes and graphics.
These capabilities help manufacturers improve product identification and support packaging traceability requirements.
5. Electronic Ribbon Drive
The airless, all-electronic ribbon drive eliminates the need for compressed air for the printer's ribbon drive system. Ribbon-saving functions help optimize ribbon usage according to the selected operating mode and print layout.
6. Touchscreen Control and Connectivity
The color touchscreen interface provides print preview, diagnostics and convenient parameter management. Standard communication options include RS232, dual Ethernet and USB support, allowing integration with compatible equipment and production systems.
7. Flexible Production-Line Integration
The Videojet 6530 can be configured for use with compatible packaging and labeling equipment. With suitable mounting hardware, control signals and speed synchronization, it can support automated coding processes across different production applications.
| Specification | Value |
| Printer Mode | Intermittent and Continuous Motion |
| Print Gap | Consistent 0.020″ (0.5mm) |
| Ribbon Widths | 6530 (53mm): 0.8" (20mm), 2.2" (55mm) max |
| 6530 (107mm): 2.2" (55mm), 4.33" (110mm) max | |
| Bar Code Printing | EAN 8, EAN 13, UPC-A, UPC-E, Code 39, EAN 128, Code 128, ITF, RSS (including 2D composite codes); others may be available upon request |
| Operator Interface | TFT SVGA 800×480 full-color LCD and touch screen, WYSIWYG print preview, full on-board diagnostics, 3 levels of password protection, extensive language support |
| Leader/Follower Capability (Up to 4 Printers Controlled by One User Interface) | Up to four Videojet DataFlex® 6530 printers controlled via a single CLARiTY™ control unit |
| Standard Communication | RS232, dual Ethernet, USB memory stick and scanner support, Binary and ASCII comms protocols, Windows™ drivers ZPL and SATO emulations |
| Web Browser Capability | Yes |
| Continuous Mode: | - |
| Maximum Print Area | 6530(53mm): 2.1" (53mm) wide x 11.8" (300mm) long |
| (Width x Length) | 6530 (107mm): 4.3" (107mm) wide x 11.8" (300mm) long |
| Maximum Print Speed | 39.4 in./sec (1,000mm/sec) |
| Minimum Print Speed | 0.04 in./sec (1mm/sec) |
| Estimated Maximum Throughput (Single Line Code) | 6530 (53mm): Up to 700 prints per minute |
| 6530 (107mm): Up to 450 prints per minute | |
| Intermittent Mode: | - |
| Maximum Print Area | 6530 (53mm): 2.1" (53mm) wide x 2.95" (75mm) long |
| (Width x Length) | 6530 (107mm): 4.3" (107mm) wide x 2.95" (75mm) long |
| Maximum Print Speed | 6530 (53mm): 31.5 in./sec (800mm/sec) |
| 6530 (107mm): 23.6in./sec (600mm/sec) | |
| Minimum Print Speed | 0.4 in./sec (10mm/sec) |
Applications
The Videojet 6530 thermal transfer overprinter is suitable for compatible applications requiring variable information on packaging materials, including:
Flexible packaging film coding
Production and expiry date printing
Batch and lot number marking
Barcode and QR code printing
Automated packaging-line coding
Compatible label printing and rewinding applications

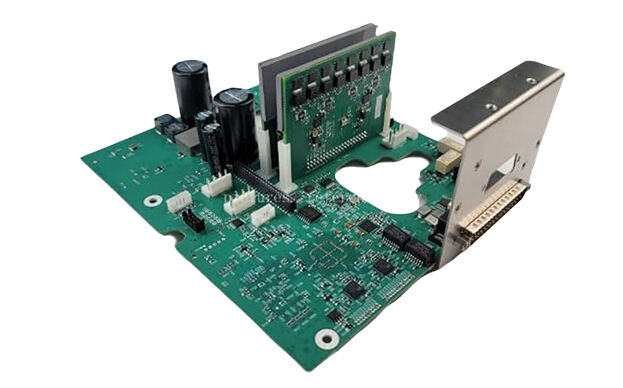

we also providing Original spare parts
Integration with Labeling and Packaging Equipment
The Videojet 6530 can be integrated with compatible production equipment to help synchronize coding with product movement, label application or material feeding.
1. Round Bottle Labeling Machines
When the application involves compatible label stock or another suitable printable surface, the printer can be configured as part of a round bottle labeling line. Integration requires the appropriate mounting arrangement, print method and control signals.
2. Flat Surface Labeling Machines
For suitable flat-product labeling applications, the printer can be integrated with compatible labeling equipment to print variable information on the intended printable surface. The print location and sequence must be confirmed according to the label material and machine layout.
3. Packaging Machines
The Videojet 6530 can be integrated with compatible horizontal or vertical packaging machines for printing dates, batch numbers, barcodes and other variable information on suitable packaging film. The printer's operating mode must match the packaging machine's movement and production speed.
4. Paging Machines
When used with a compatible paging or product-feeding machine, the printer can be configured to code individual products or labels as they pass through the system. Sensors and control signals help coordinate the printing cycle with product movement.
5. Label Rewinding Machines
For compatible label-roll applications, the printer can be integrated with a rewinding system to support coding during label processing. The material path, print position, tension control and speed synchronization must be designed for the specific application.
Synchronized Printing for Automated Production
With suitable integration, the Videojet 6530 can work as part of a synchronized production system rather than operating as a standalone printer.
Depending on the application, integration may use product sensors, encoder signals, PLC communication or machine-control interfaces to coordinate printing with product movement.
Before selecting a configuration, confirm:
Equipment type and operating speed
Printing material and required print position
Printhead width and maximum print area
Intermittent or continuous operating mode
Required sensors, encoder signals and communication interfaces
Available mounting space and installation direction
Actual synchronization capability depends on the equipment, control interface and installation configuration.
FAQ
What is the Videojet 6530 printer used for?
The Vdeojet 6530 printer is used for printing variable information such as production dates, batch numbers, barcodes, and QR codes
on flexible packaging.
What packaging machines can the Videojet 6530 work with?The printer can be installed on horzontal packaging machines, Vertcal packaging machines, labeling machines, and paging machines
Frequently Asked Questions
What is the Videojet 6530 used for?
It is a thermal transfer overprinter used to print variable information such as dates, batch numbers, barcodes and QR codes on compatible packaging materials.
What is the difference between the 53mm and 107mm versions?
The 53mm version provides a narrower print area, while the 107mm version accommodates wider layouts. The suitable option depends on the required print width and content.
Can the Videojet 6530 work with packaging machines?
Yes. It can be integrated with compatible packaging machines when the mounting arrangement, print mode and control signals meet the application requirements.
Can it work with round bottle labeling and flat labeling machines?
It may be integrated into suitable labeling systems when the printing method, printable material and installation arrangement are compatible. The exact application should be evaluated before purchase.
Can it work with a paging machine or rewinding machine?
Yes, compatible systems can be configured for synchronized coding. Material handling, sensor signals, operating speed and the print position must be checked.
How can I choose the correct configuration?
Provide the machine model, material type, print content, required print width and production speed. These details help determine the appropriate printhead and integration arrangement.
