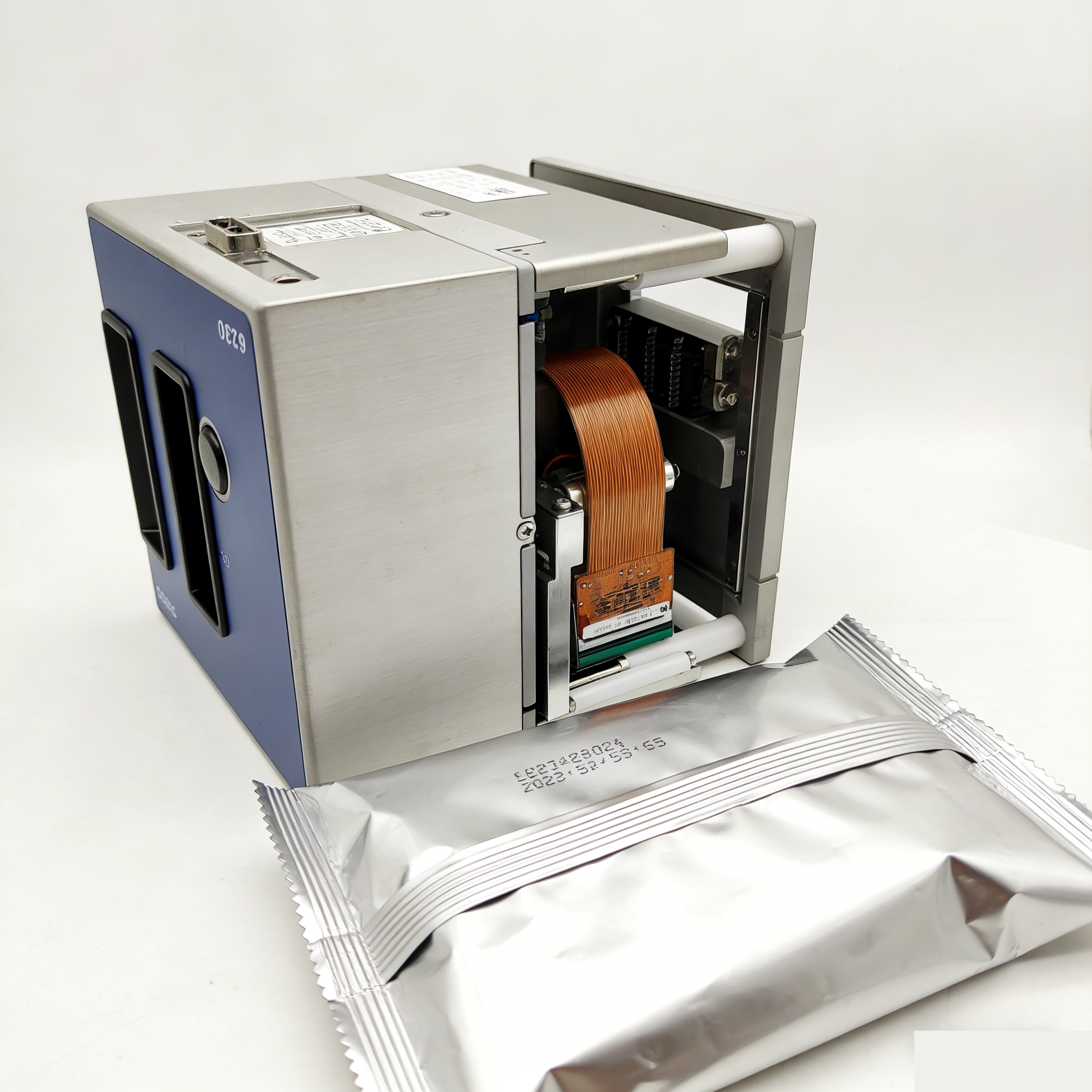

Description
| Specification | Value |
| printer mode | intermittent and continuous exercise |
| print gap | 0.5 mm (0.020 in) |
| Maximum ribbon length | Maximum 700 meters |
| ribbon width | Minimum: 20 mm (0.8 in) Maximum: 33 mm (1.3 in) |
| Continuous mode- | |
| Maximum printing area (width × length） | 32 mm x 100 mm (1.26 inches x 3.93 inches) |
| Maximum print speed | 500 mm/s. (19.7 units/s) |
| Minimum print speed | 40 mm/s (1.6 in/s) |
| ntermittent mode- | |
| Maximum Print Area (Width x Length) | 32 mm x 47 mm (1.26 inches x 1.85 inches) |
| Maximum Print Speed | 300 mm/s. (11.8 units/s) |
| Minimum Print Speed | 50 mm/s (2.0 in/s) |
| Barcode printing EAN8, EAN13, UPCA, UPCE and QR codes | |
| Estimated maximum throughput | (Single line code, continuous mode) 150 packs/minute |
| Communication | USB, Ethernet, RS232, Bluetooth (optional) |

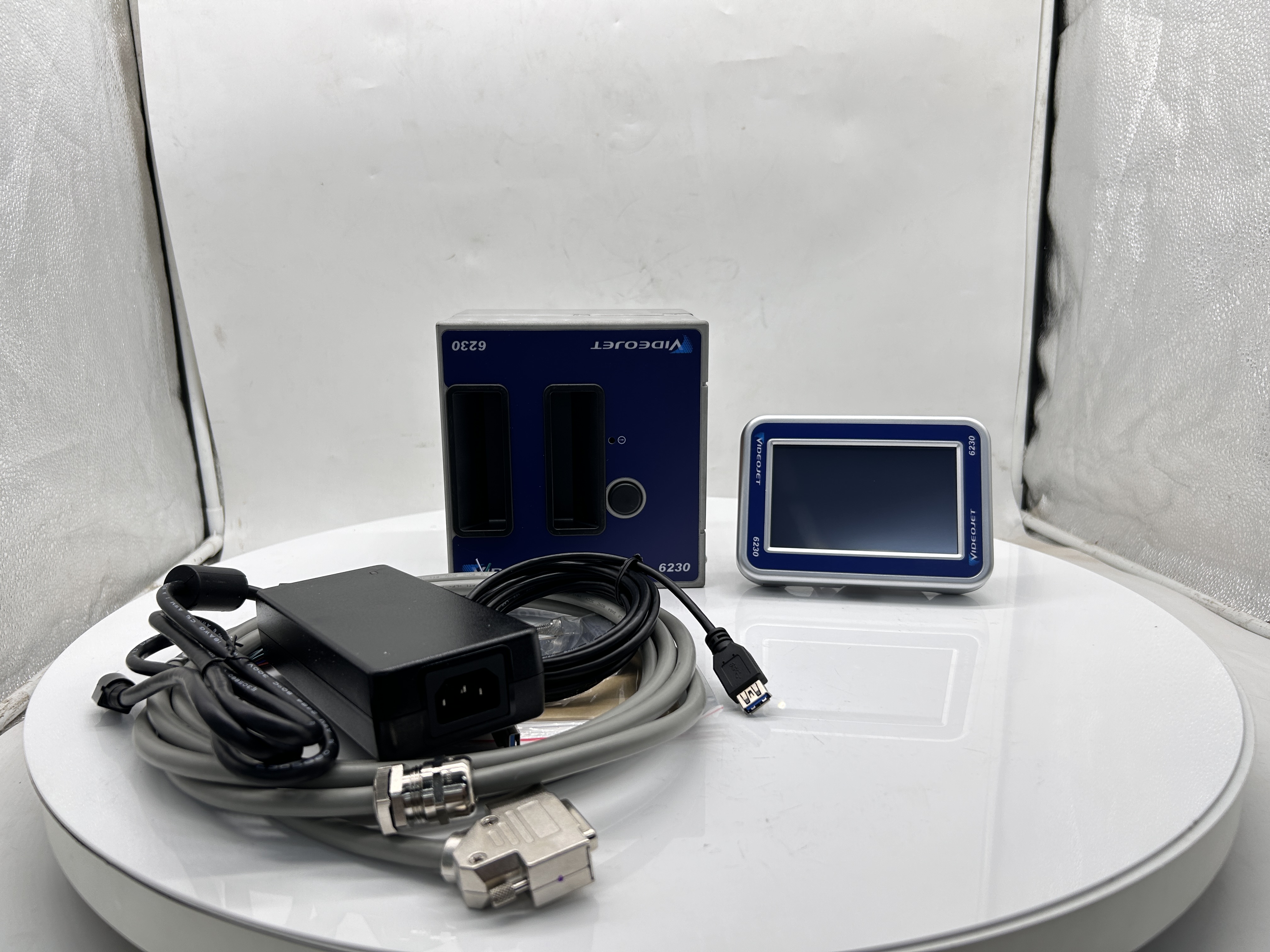

| User Interface | 5-inch color touchscreen (CLARiTY™) |
| Barcode Support | EAN8, EAN13, UPCA, UPCE, QR codes |
Key Features
1.Simple and Easy to Use
Intuitive 5-inch flat touchscreen controller with CLARiTY™ interface for easy operation.
Ribbon cartridge with button-lock mechanism allows quick and easy replacement.
2.High Efficiency and Productivity
Supports intermittent and continuous motion printing, with speeds up to 150 packs/minute (continuous mode).
700-meter ribbon length reduces changeover frequency and extends uptime.
No air source required, eliminating the need for factory compressed air and reducing wear parts.
3.High-Quality Coding
200 dpi resolution for clear text, barcodes (EAN8, EAN13, UPCA, UPCE, QR codes), and graphics.
Coding quality assurance features (e.g., print preview, real-time clock stamp) prevent date errors and operator mistakes.
4.Flexible Integration and Communication
Compact design for easy integration into most production lines (including limited-space environments).
Multiple communication interfaces: USB, Ethernet, RS232, ASCII, and binary protocols.
Optional Bluetooth connectivity (via Android app) for simplified operator intervention.
5.Reduced Costs and Waste
Bidirectional stepper motor for precise ribbon control, minimizing waste.
Built-in software (CLARiSOFT™, VideojetConnect Design) reduces setup time and product rework.
Applications
Flexible packaging coding (film, foil, labels) for food, pharmaceutical, chemical, and consumer goods industries.
-
-
