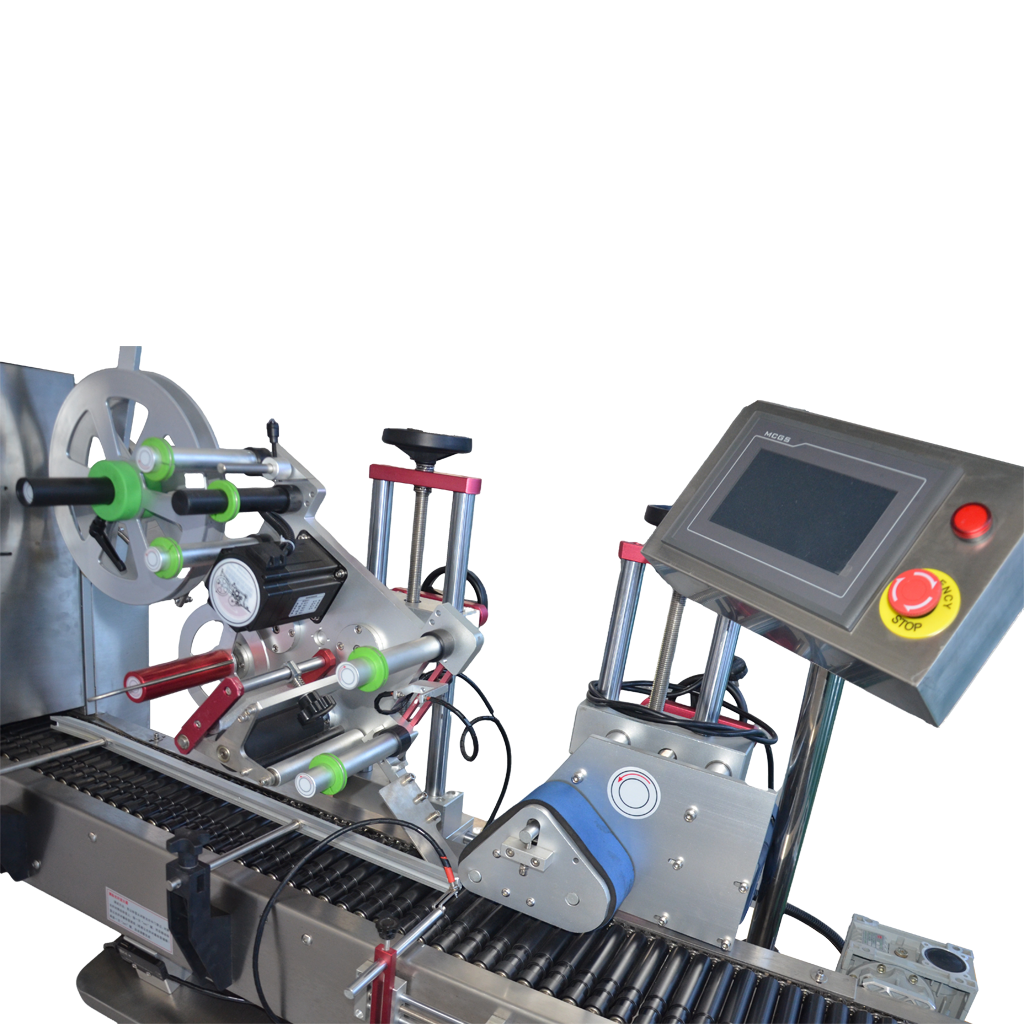

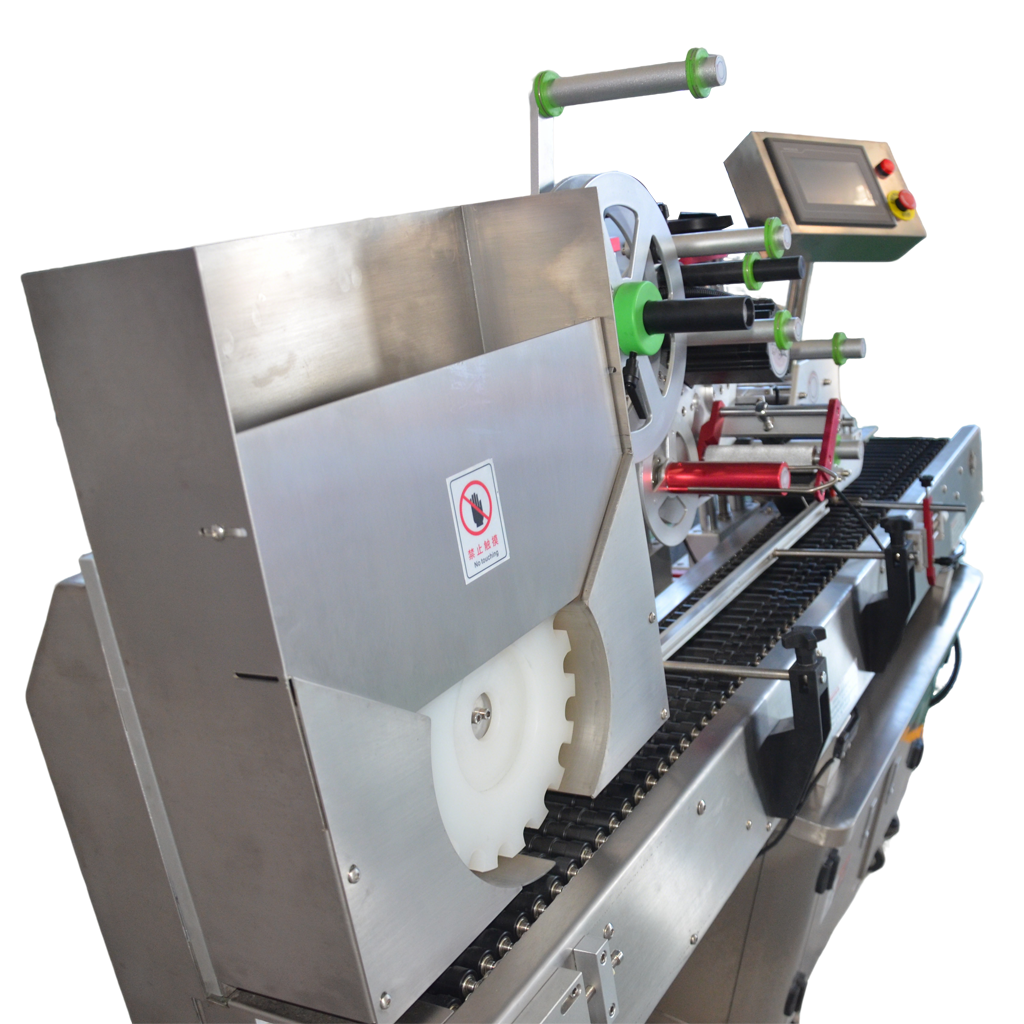

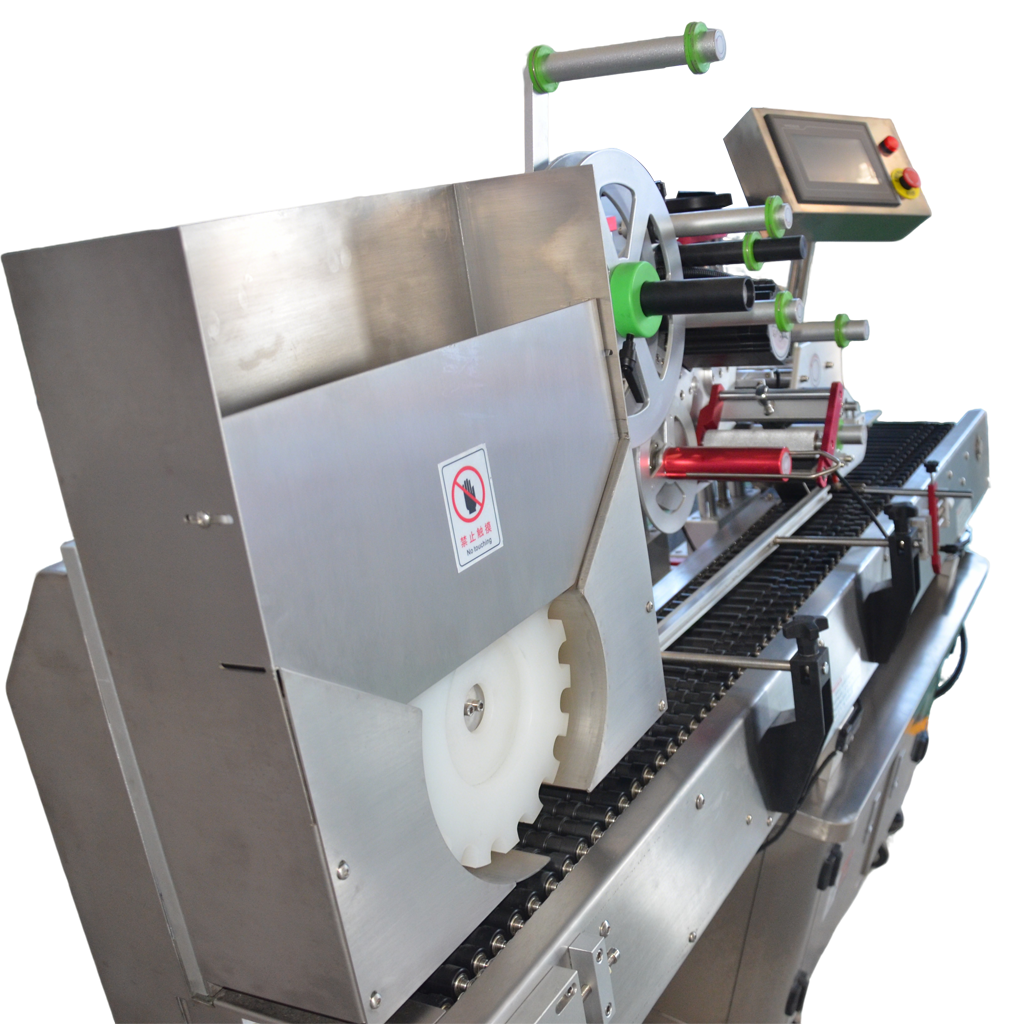

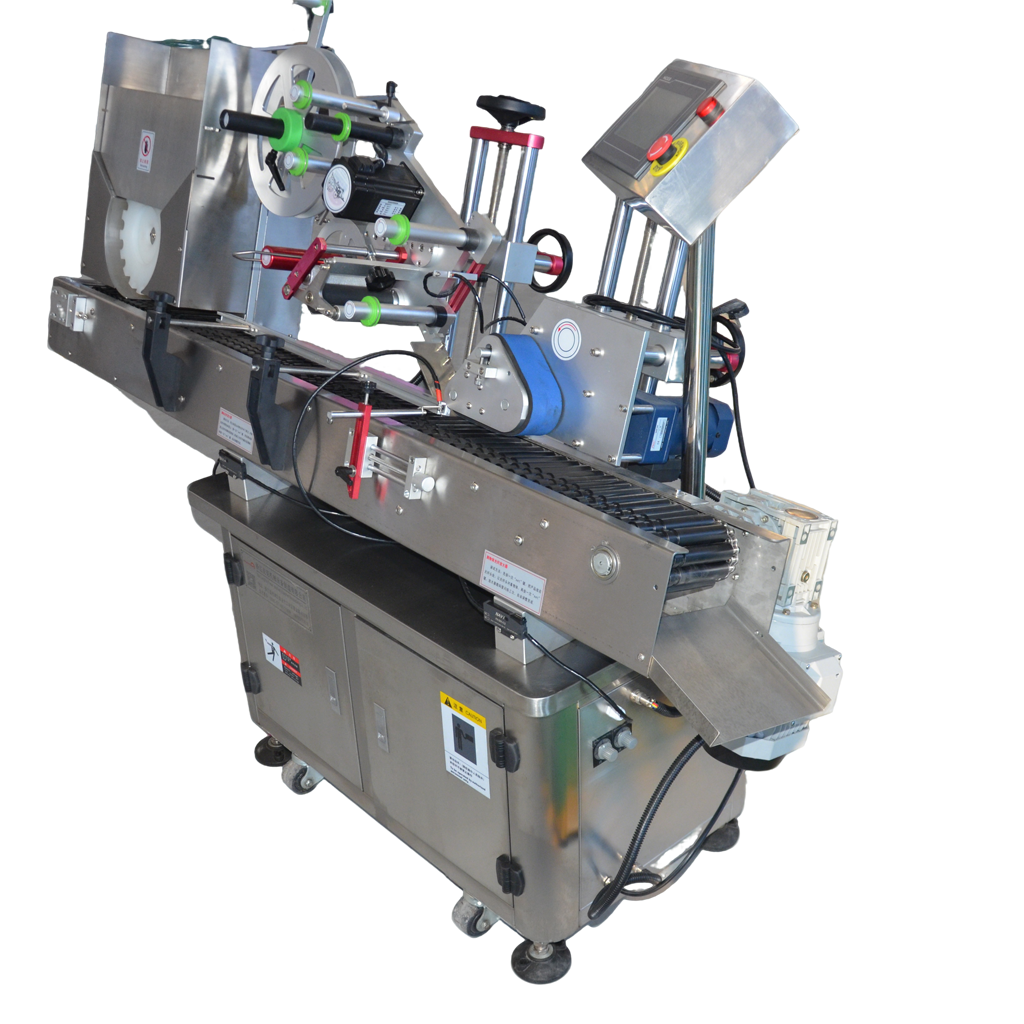

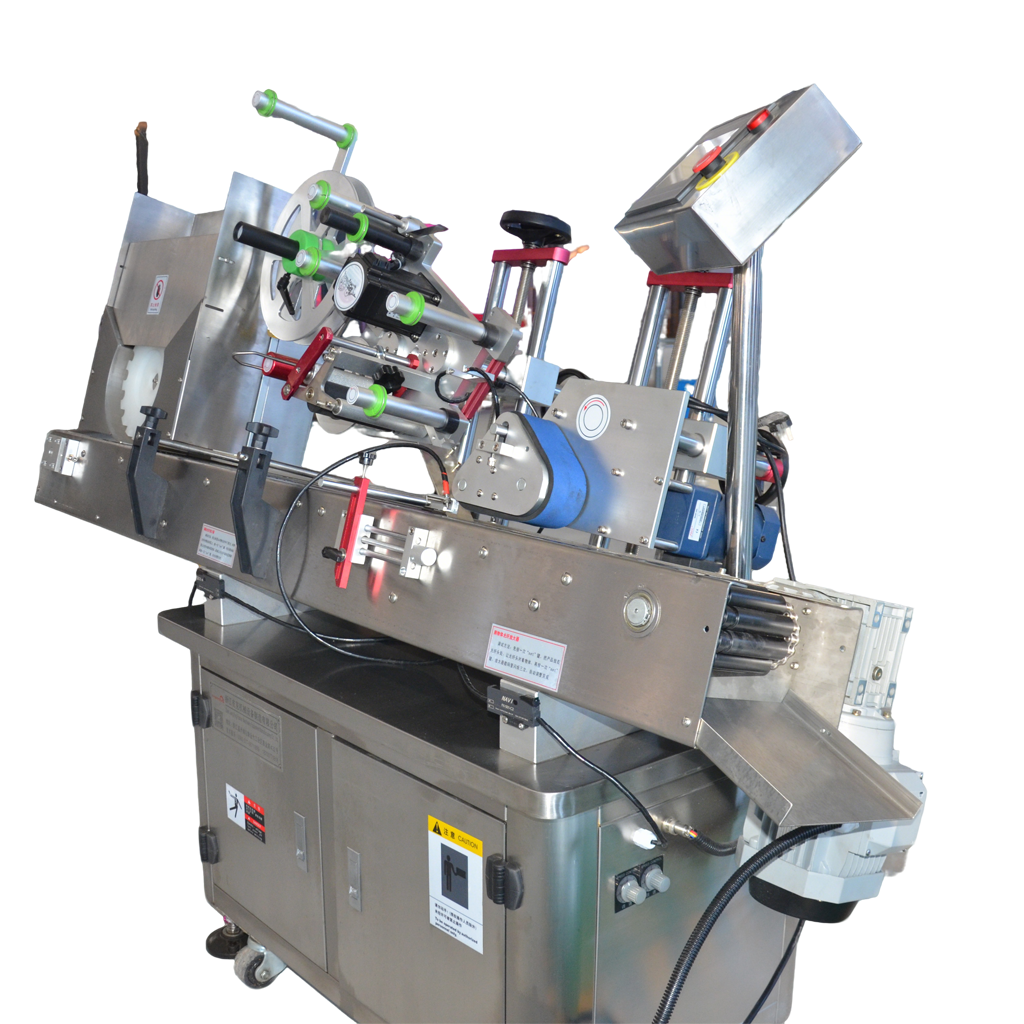

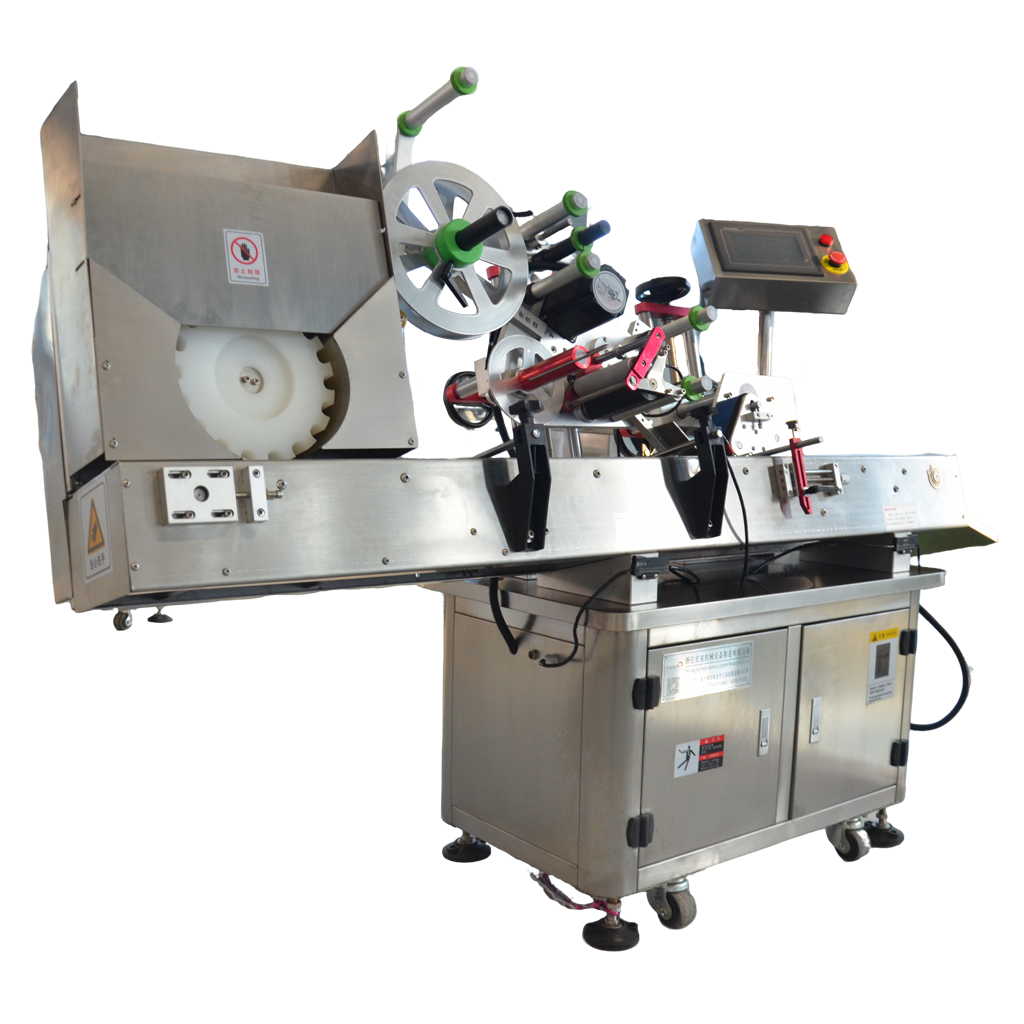

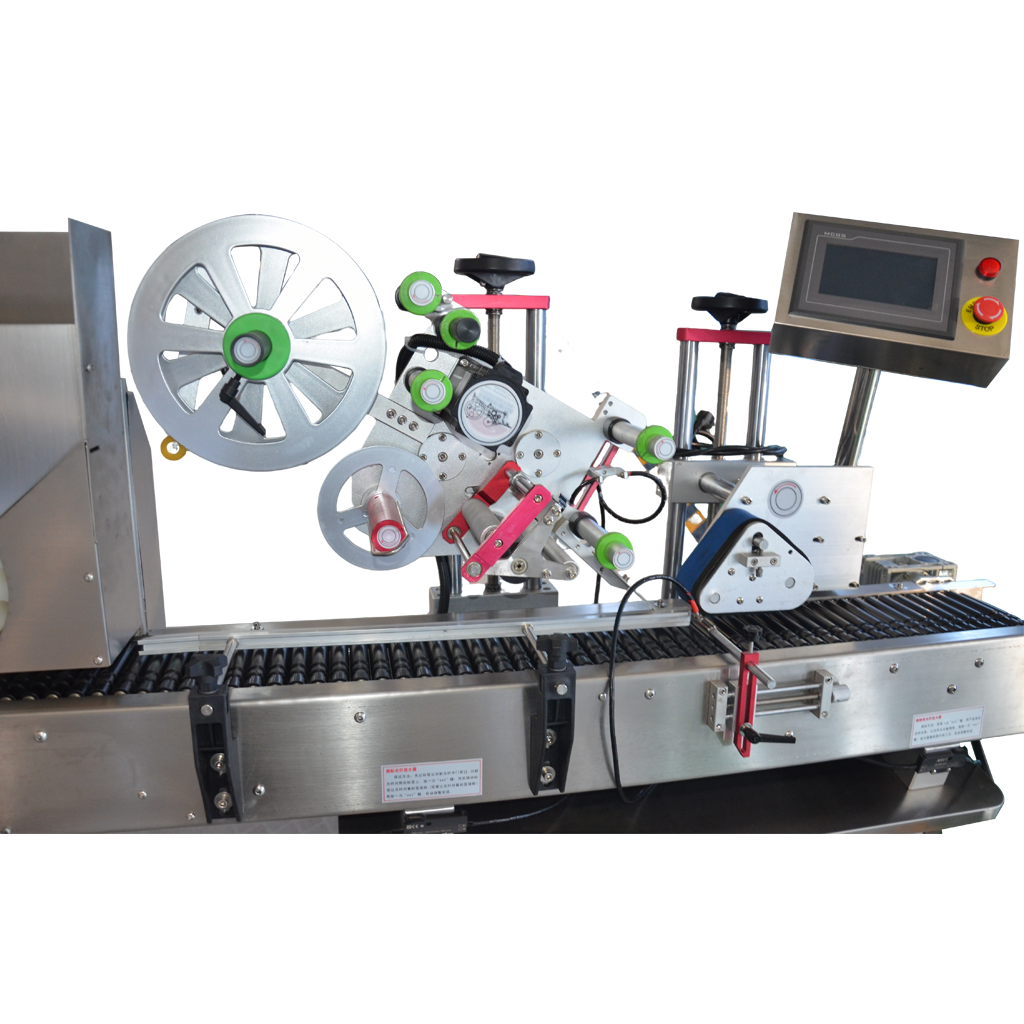

Horizontal Vial Labeling Machine for Small Cylindrical Bottles

Fully automatic horizontal round bottle labeling machine

Suitable for labeling the circumference and semicircle of cylindrical objects that are unstable when standing, using horizontal labeling
The method of conveying and horizontal labeling increases stability, improves labeling efficiency, and adds a bottle sorting machine
Structure can save more labor and improve labeling efficiency.

Core strengths

Horizontal conveying anti tipping: The horizontal clamping conveying structure is perfectly adapted to easily tipping containers such as ampoules, penicillin bottles, oral liquid bottles, small round bottles, etc., to prevent bottle tilting and missing labels during the labeling process.

High precision labeling: using servo motor and photoelectric positioning system, the labeling accuracy is stable, and the label fits smoothly without wrinkles or bubbles

High adaptability: Compatible with round bottles of different diameters and lengths, quick changeover without changing molds, suitable for packaging needs in multiple industries such as food, medicine, and daily chemical.

Applicable scenarios

Applicable products: Oral liquid bottles, penicillin bottles, ampoules, small round bottles, test tubes, pen holders, ham sausages and other cylindrical/quasi cylindrical objects

Applicable industries: pharmaceuticals, food, daily chemical products, stationery, auto parts, etc

Applicable labels: self-adhesive labels, anti-counterfeiting labels, electronic supervision codes, barcodes, etc

Optional Custom Modules:

Coding/Printing Module: Thermal or inkjet printer for date, batch number, barcode printing on labels or products.

Automatic Feeding System: Customizable based on product requirements.

Automatic Collecting System: Designed according to product specifications.

Working Principle & Operation:

Principle:
Products are separated by a bottle separation wheel and placed onto a roller conveyor. Sensors detect product positions and send signals to the control system, which then releases and applies labels. The labeling mechanism ensures tight adhesion of labels to products.

Operation Steps:
Place products into the hopper → Products are separated and guided onto the conveyor → Sensors detect products and trigger labeling → Labels are applied and adhered to products → Labeled products are collected

FAQ

Which bottle types/products are suitable for?

Specially designed for small round and slender bottles that are prone to tipping, suitable for cylindrical/quasi cylindrical objects such as penicillin bottles, ampoules, oral liquid bottles, test tubes, pen holders, ham sausages, etc. It supports bottle shapes with diameters of 14-28mm (customizable) and can be quickly changed without changing molds.

Can it be used together with a coding machine/inkjet printer?

Support online docking with thermal transfer printing (TTO) and ink wheel coding machines, which can print production date, batch number, and expiration date while labeling, achieving the integration of "labeling+coding".

Can it be customized? Can it adapt to my family's production line?

Support full process customization, including bottle type adaptation, number of labeling heads, coding function, bottle sorting/receiving machine docking, production line linkage, etc., and can customize exclusive solutions according to customer production line needs.
